Auto Dial Phone for Industrial and Public Applications JWAT150

The JWAT150 Hotline Auto Dial Phone automatically dials a preset number when the handset is lifted, offering fast and reliable communication. Made from durable SUS304 stainless steel or cold-rolled steel, it is available in both analog and VoIP versions and features tamper-resistant screws for enhanced security. The telephone is fully customizable, including color, main board functions, handset style, cradle design, and keypad layout, with all key components such as keypad, cradle, and handset produced in-house to ensure tailored solutions for any application.

Widely used in:
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

Operating directly via a standard phone line without the need for external power, this heavy-duty analog telephone is built to survive demanding  industrial and public scenarios. Constructed with a rugged 304 stainless steel shell, it delivers exceptional mechanical strength and impact resistance against vandalism. As a fully programmable auto dial phone, it automatically connects to pre-set numbers for incredibly fast and seamless communication.

  • The vandal-resistant handset is reinforced with an internal steel lanyard and grommet, and can be paired with an optional noise-canceling microphone for crystal-clear audio in loud areas.

  • A magnetic reed hook switch provides reliable, long-lasting performance without relying on fragile mechanical parts.

  • IP54-rated weatherproof protection securely defends the internal components against dust and water ingress.

  • Setup is straightforward thanks to a simple wall-mounted design and an RJ11 screw terminal pair cable for secure wiring.

  • The unit offers customizable visual options including multiple colors, alongside readily available self-supplied spare parts for easy maintenance.

  • This device meets strict international manufacturing and safety requirements, acting as fully CE, FCC, RoHS, and ISO9001 compliant hardware.



Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Anti-vandalism Level IK10
Installation Wall-mounted
DIMENSIONS

JWAT150 5

PACKAGE

Each telephone is carefully packaged to ensure safe delivery and maximum protection during transit. The unit is cushioned with shock-absorbing materials and secured in a durable, export-grade carton to guard against impact, moisture, and vibration. All accessories are neatly organized and clearly labeled for quick and hassle-free installation. Custom packaging, branding, and bulk pallet solutions are also available to accommodate specific project or OEM requirements.



Unit Size: 280*170*132MM
Unit Box Size: 530*350*350MM
Unit Net Weight: 2.9KG
Carton Gross Weight 3.5KG
JWAT150 4
FREQUENTLY ASKED QUESTIONS
What makes a prison or industrial telephone different from a regular telephone?
Industrial and prison telephones are designed for high-security and high-durability environments. They feature vandal-resistant materials, tamper-proof designs, reinforced cords, and are often weatherproof for indoor or outdoor use.
Are these telephones weatherproof and dustproof?
Yes. Most models meet IP54 or higher standards, offering protection against dust, water, and harsh environmental conditions. Some can even withstand extreme temperatures and corrosive environments.
Can the telephone be integrated into a larger communication system?
Absolutely. These phones can be integrated with emergency communication systems, IP PBX, PAGA systems, control rooms, and other unified network solutions. Custom OEM features can also be added.
Are the handsets vandal-resistant?
Yes. Handsets are typically reinforced with steel cords or internal lanyards and made of high-strength materials to prevent tampering or damage.
What installation options are available?
These telephones are generally wall-mounted for stability and security. Installation is simple, with all accessories clearly labeled. Some models support flush-mounting or surface-mounting for added protection.
What certifications do these telephones have?
Quality and compliance are ensured with certifications such as CE, FCC, RoHS, and ISO9001, depending on the manufacturer.

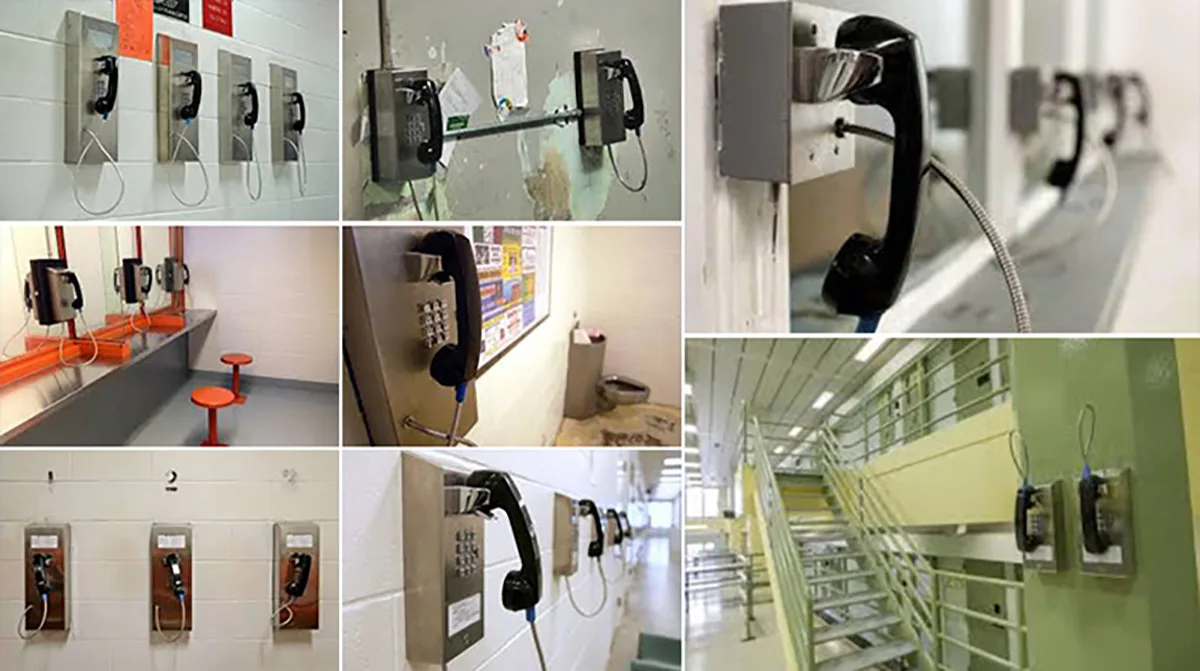

The stainless steel phone is designed for reliable performance in a wide range of demanding environments, including jails, hospitals, oil rigs, offshore platforms, dormitories, airports, control rooms, sally ports, schools, industrial plants, gates, entryways, PREA-compliant areas, and waiting rooms. Its robust construction ensures durability and dependable operation even in high-traffic or harsh conditions, making it an ideal communication solution for both secure and industrial settings.JWAT150 7

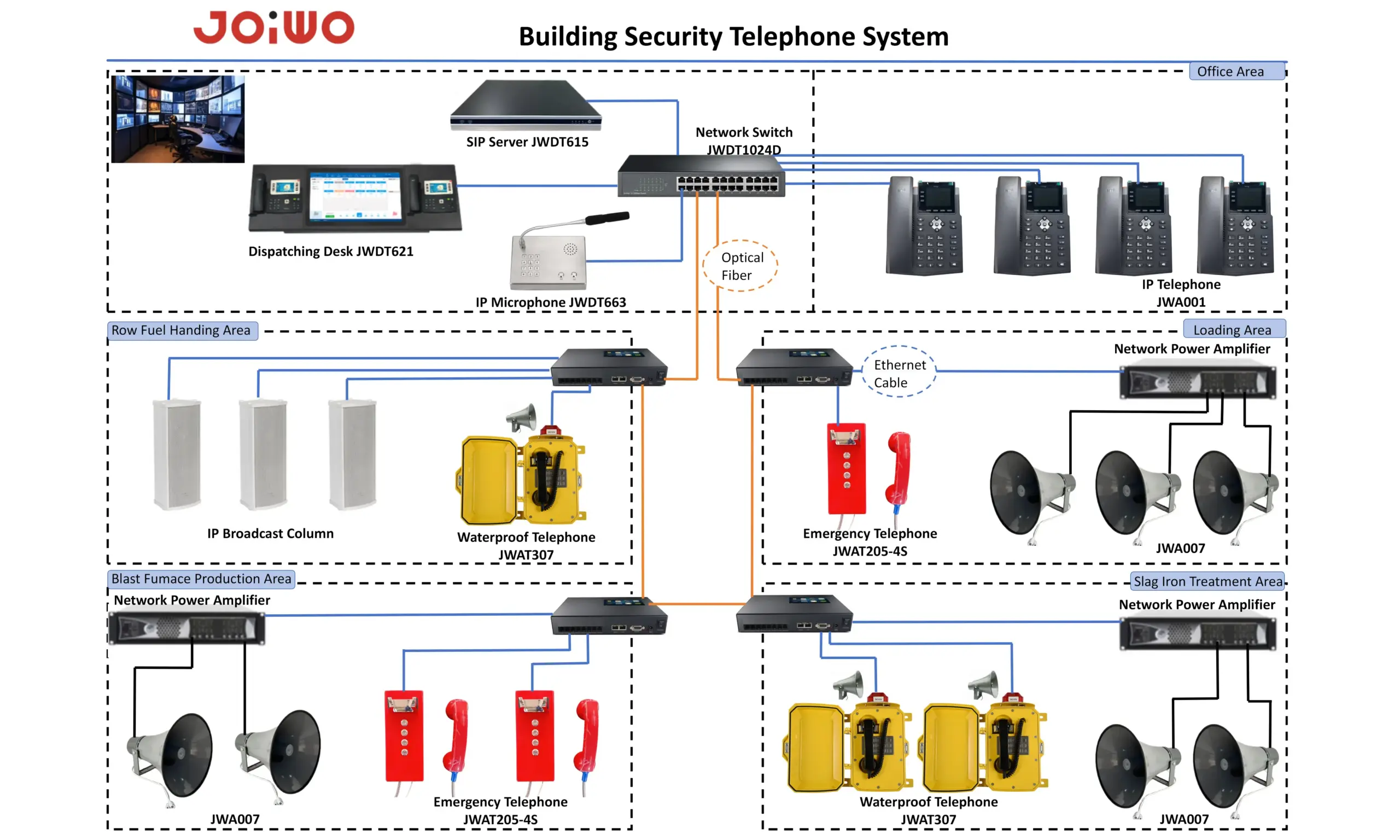

Beyond Terminals: Full-Spectrum Telecom Integration

At Joiwo, we specialize in custom-engineered communication solutions that bridge the gap between hardware and operational efficiency.

Our Integrated Solutions Portfolio:

  • Infrastructure: IP PBX & IP Server platforms for seamless networking.
  • Safety & Alarms: PAGA (Public Address & General Alarm) and Emergency Voice Communication Systems (EVCS).
  • Intelligence: Telephone self-diagnostic, real-time monitoring, and unified network management.
  • Customization: Specialized OEM development and application-specific logic.

The Joiwo Advantage: We combine robust hardware with system integration expertise to ensure your infrastructure is reliable, scalable, and seamless—no matter the environment.JWAT150 6
