Cold Rolled Steel Public Underground Telephone JWAT209

The JWAT209 is a rugged, IP65-rated waterproof analogue telephone, constructed from durable cold-rolled steel for excellent corrosion and impact resistance. Designed for demanding environments, it is ideal for tunnels, mining sites, marine and offshore applications, underground facilities, metro stations, railway platforms, highways, hotels, parking lots, steel plants, power plants, and other heavy-duty or high-humidity industrial settings. Its robust design ensures reliable communication even in the harshest conditions.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES
  1. Cord rolled steel shell, high mechanical strength and strong impact resistance.
    Standard Analogue phone.
    3.Heavy Duty handset with hearing Aid compatible receiver.
    4.Weather proof protection to IP65.
    5.Strong Zinc Alloy keypad.
    6.Auto-dial when handset picked up and the emergency phone number can be set as requested.
    7.Wall mounted, Simple installation.
    8.Connection: RJ11 screw terminal pair cable.
    9.Multiple housings and colors.
    11. Self-made telephone spare part available.
    12. CE, FCC, RoHS, ISO9001 compliant.



Power Supply Telephone Line Powered
 Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Anti-vandalism Level IK09
Installation Wall-mounted

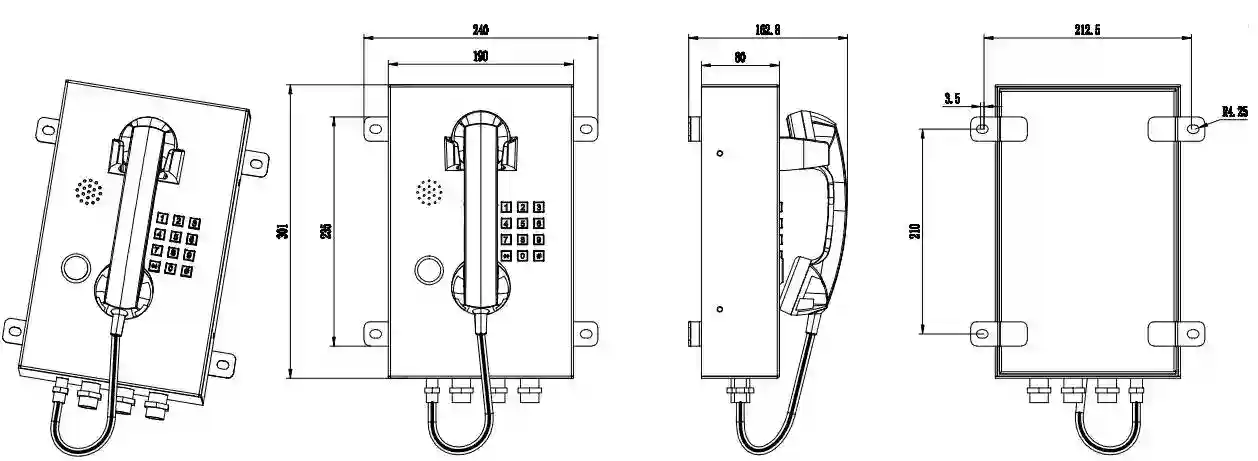

DIMENSIONS

JWAT209 4

PACKAGE

Each telephone is expertly packaged to ensure maximum protection and a premium presentation during transit. Shock-absorbing materials and a robust export-grade carton safeguard the device against impact, moisture, and vibration, while all accessories are neatly organized for effortless installation. For tailored projects or OEM programs, Joiwo offers custom packaging, branded labeling, and palletized solutions, delivering both safety and a professional, high-quality unboxing experience.



Unit Size: 300*240*162.8MM
Unit Box Size: 440*320*270MM
Unit Net Weight: 3.5KG
Carton Gross Weight 4KG
Underground telephone device in packaging for public steel infrastructure, designed for durable communication systems in cold rolled steel environments.
FREQUENTLY ASKED QUESTIONS
What environments are public telephones suitable for?
Public telephones are designed for high-traffic or harsh environments such as tunnels, transportation hubs, industrial sites, public areas, and emergency communication points.
Is this public telephone weatherproof?
Yes. The phone is built with durable materials and offers protection against dust, moisture, and impact. Models with IP54–IP66 ratings are available depending on application needs.
Does the telephone require an external power supply?
Standard analogue versions are line-powered and do not require an external power source. IP and 4G versions may require additional power depending on configuration.
Can the public telephone be customized?
Yes. We offer customization options such as keypad layout, speed-dial buttons, handset type, color, mounting method, and OEM branding.
Is the handset vandal-resistant?
Yes. Our public telephones use heavy-duty handsets reinforced with internal steel lanyards and impact-resistant grommets to prevent tampering and vandalism.
Can the phone work in noisy environments?
Absolutely. Noise-canceling microphones and high-output speakers are available to ensure clear communication in loud industrial or public areas.
How is the telephone installed?
The unit supports wall-mount installation. It comes with all necessary mounting accessories and a user guide for quick and straightforward setup.
What certifications do your public telephones have?
Our products comply with international standards such as CE, FCC, RoHS, and ISO9001.
Do you offer after-sales service and spare parts?
Yes. We provide full technical support, long-term availability of spare parts, and in-house manufactured components to ensure consistent quality and easy maintenance.

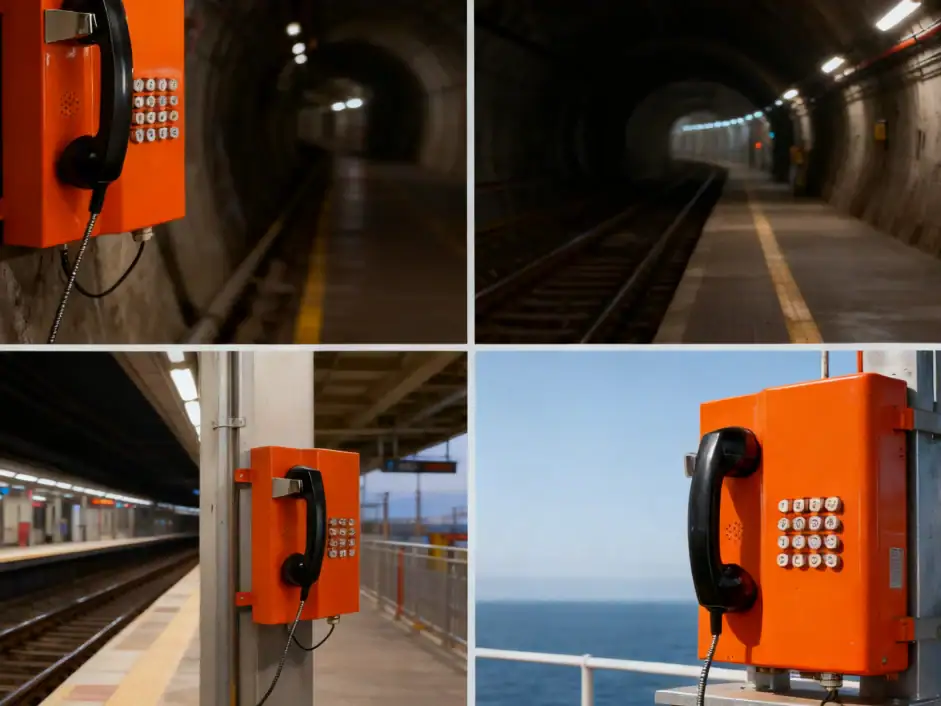

This telephone is widely used in demanding environments such as tunnels, mining sites, marine and offshore applications, underground facilities, metro stations, railway platforms, highways, hotels, parking lots, steel and chemical plants, power plants, and other heavy-duty industrial settings, delivering reliable communication even under harsh conditions.JWAT209 6

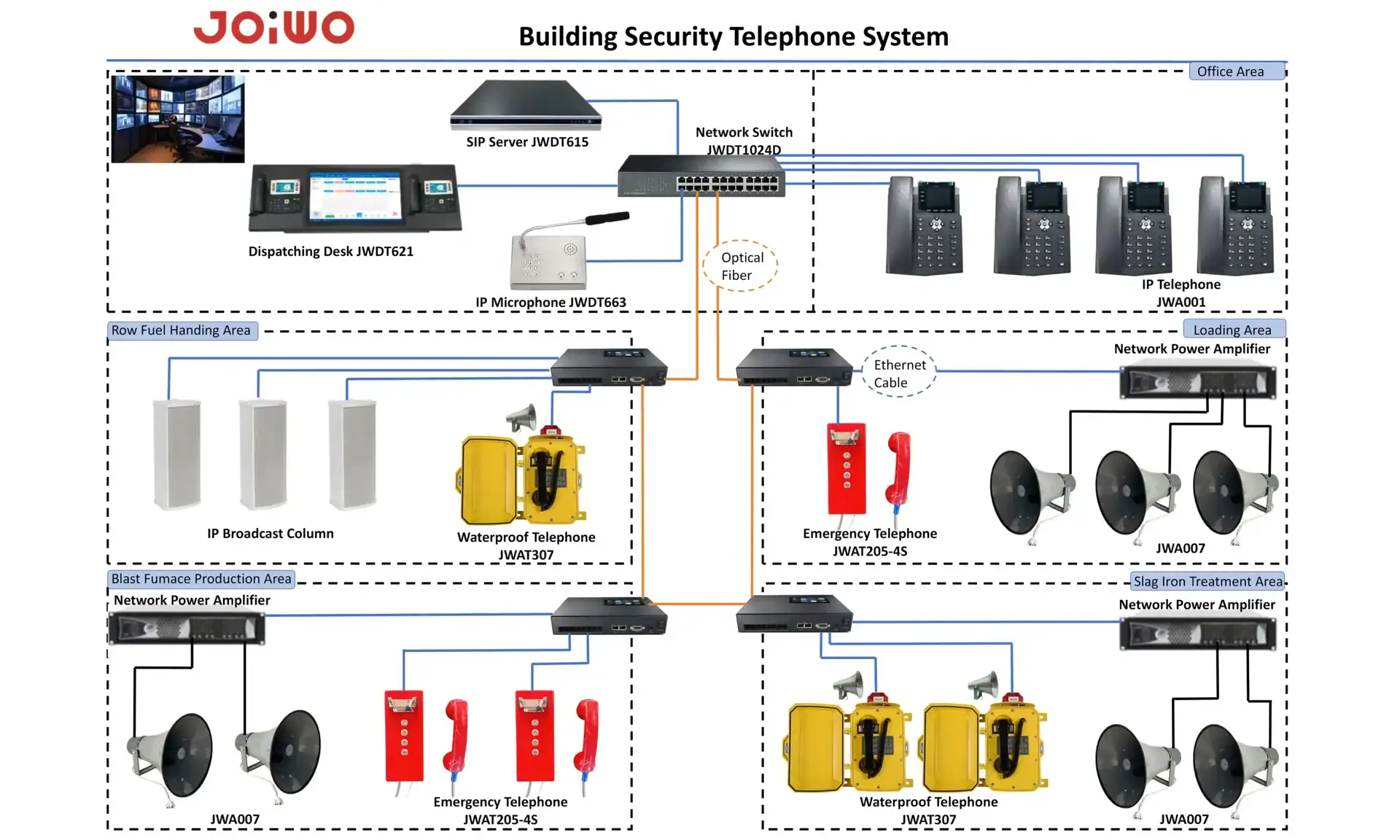

Joiwo is not just a manufacturer—we are a professional telecom solutions integrator committed to delivering complete, end-to-end communication systems tailored to the unique needs of each client. Beyond supplying high-quality terminal devices, we provide comprehensive solutions that include advanced telecom infrastructure, IP PBX and IP server platforms, telephone self-diagnostic and monitoring systems, PAGA systems, customized OEM functionalities, unified network management solutions, Emergency Voice Communication Systems (EVCS), and a wide range of other intelligent communication tools. By combining rugged, reliable hardware with smart, easy-to-manage software, Joiwo ensures fully integrated, scalable, and future-proof communication networks capable of performing seamlessly in industrial plants, correctional facilities, airports, hospitals, schools, and other mission-critical or high-demand environments, delivering uninterrupted connectivity, operational efficiency, and long-term adaptability.JWAT209 5
