Indoor Intercom Station for IP public address system JWDTB10

Introducing JWDTB10: A rugged 304 stainless steel indoor intercom, ideal for IP public address systems. Features intuitive status display, dual SIP 2.0 lines, wide audio codec support, hands-free gooseneck microphone, reliable double-sided circuitry, and compliance with CE, FCC, RoHS, and ISO9001 standards.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

Professional Desktop Communication Console

This robust indoor intercom station is expertly engineered to serve as a central communication hub, making it an ideal component for any comprehensive IP public address system design. Constructed with a rugged 304 stainless steel housing, the console delivers exceptional mechanical strength and impact resistance for demanding operational control rooms.

Main Functions

  • Intuitive Interface: A clear status display provides immediate visual feedback, showing outgoing call numbers, active call duration, and real-time system status.

  • Advanced Connectivity: Fully compatible with SIP 2.0 (RFC3261), the device supports dual SIP lines for managing two simultaneous VoIP connections.

  • Superior Audio Quality: Ensures crystal-clear voice transmission across wide audio codec support, including G.711, G.722, G.723, G.726, and G.729.

  • Hands-Free Operation: A built-in gooseneck microphone enables clear, hands-free communication, ensuring operators can manage calls effectively even in noisy environments.

  • Reliable Performance: Professional-grade circuitry utilizing double-sided integrated boards guarantees precise dialing, clear audio output, and long-term stable operation.

  • Maintenance & Compliance: Backed by dedicated maintenance support with self-manufactured spare parts, the system is fully compliant with CE, FCC, RoHS, and ISO9001 international standards.

Protocol SIP2.0(RFC-3261)
Audio Amplifier 3W
Volume Control Adjustable
Support RTP
Codec G.729、G.723、G.711、G.722、G.726
Power Supply 12V (±15%) / 1A DC or PoE
LAN 10/100BASE-TX s Auto-MDIX, RJ-45
WAN 10/100BASE-TX s Auto-MDIX, RJ-45
Installation Desktop
Weight 3.0KG
DIMENSIONS

JWDTB10 4

PACKAGE

The product is secured within an industrial-grade, multi-layer corrugated carton that offers excellent compression and impact resistance for safe transit. The exterior features a clean, professional design with clear printing of the product model (JWDTB10), key icons, and necessary handling instructions.

Unit size 300×177.3×78.1 (mm)
Carton size 470*290*210 (mm)
Packaging materials Pearl cotton, Carton
Net weight 2.5 KG
Gross weight 3 KG



Intercom control system for desktop phone, model JWDTB10, shown in packaging and setup. Ideal for office communication, featuring easy installation and reliable connectivity.
FREQUENTLY ASKED QUESTIONS
Is this phone compatible with my existing VoIP system or PBX?
Yes. The JWDTB10 is a standard SIP 2.0 (RFC3261) compliant device, ensuring broad compatibility with most major VoIP service providers, SIP-based PBX systems (such as Asterisk, 3CX, FreePBX), and IP intercom platforms. It supports easy configuration of SIP server details for seamless integration.
How durable is the 304 stainless steel housing? Where is it most suitable?
The 304 stainless steel shell provides exceptional mechanical strength, corrosion resistance, and impact protection. It is IP-rated for dust and moisture resistance (specific IP rating to be confirmed), making it ideal for harsh environments like factories, warehouses, parking garages, transportation hubs, and outdoor areas where ruggedness is required.
How is maintenance and repair handled? What is the product's lifespan?
We offer comprehensive after-sales support. Being a manufacturer, we provide self-produced spare parts for long-term repair and maintenance, extending the product's service life well beyond industry averages. The industrial-grade components and robust design are built for 24/7 operation over many years.
What do the certifications (CE, FCC, RoHS, ISO9001) mean for me?
These certifications are your assurance of quality, safety, and compliance. CE & FCC: Confirm the product meets electromagnetic compatibility and safety standards for sale and use in the European Union and United States. RoHS: Guarantees the product is free from hazardous substances, making it environmentally responsible. ISO9001: Certifies that our manufacturing processes are consistently managed and quality-controlled.

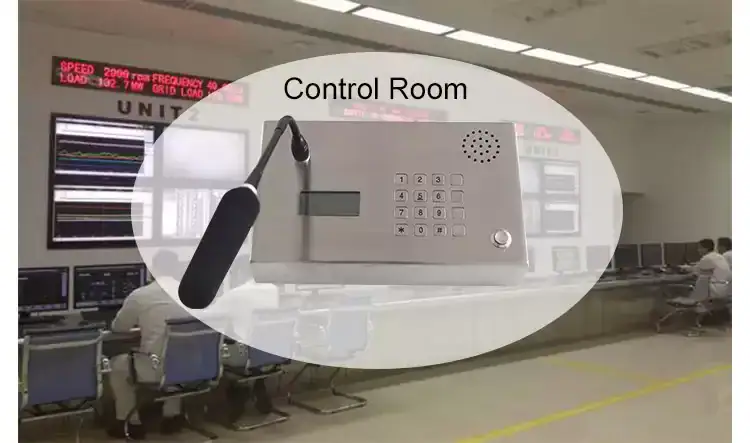

This indoor intercom station is engineered for the central control rooms of command and dispatch systems, delivering reliable core control for critical operations in environments like control centers and dispatch hubs.
JWDTB10 2

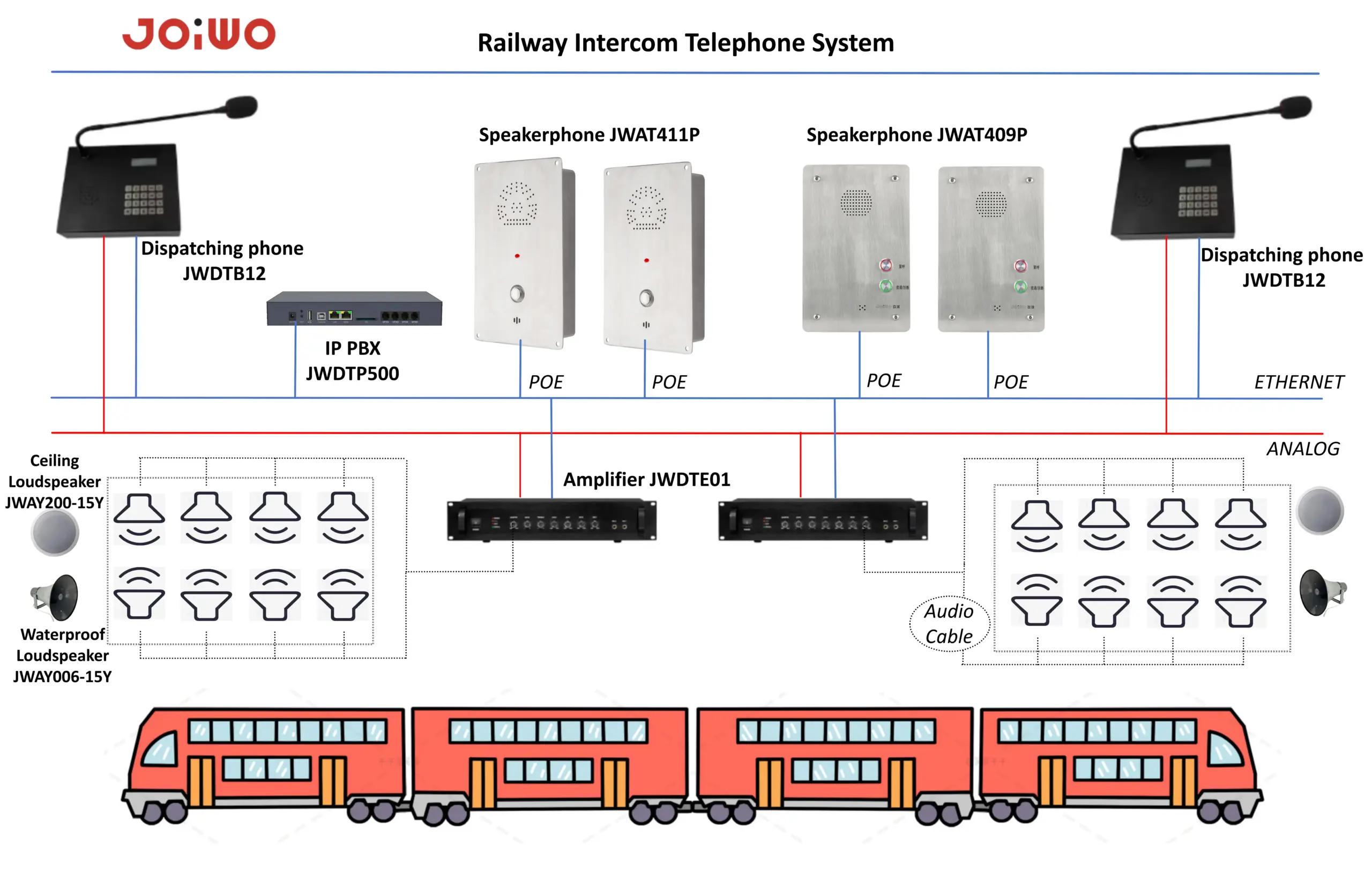

Our Industrial VoIP Communication System delivers a robust, reliable, and seamless audio solution tailored for mission-critical environments such as control rooms, dispatch centers, and public safety hubs. The system is built around the interplay between a central Master Station and deployed JWDTB10 Industrial Desktop Phones, creating a cohesive network designed for clarity, durability, and instant connectivity.
JWDTB10 1
