Durable Rugged SIP Emergency Telephone JWAT206P

JWAT206P Stainless Steel Vandal-Resistant Public Emergency Telephone is designed to meet the needs of client who experience loss through vandalism.

The handset is fitted with an armored cord secured by a steel lanyard, while the handset itself is fully sealed to prevent tampering or unauthorized disassembly. An optional keypad-free configuration is available, making the unit ideal for emergency calling or auto-dial applications.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

JWAT206P SIP emergency phone is designed for demanding environments. This heavy-duty, wall-mounted IP telephone features a high-strength rolled steel shell and a water- and dust-proof metal keypad. It pairs rugged durability with advanced VoIP functionality, offering a highly customizable user interface backed by industry-standard certifications (CE, FCC, RoHS, and ISO9001).

  • Physical hardware includes a durable handset with a hearing-aid-compatible receiver, an optional noise-canceling microphone, and readily available replacement parts.

  • The interface features a built-in display for outgoing numbers and call duration, alongside auto-dial capabilities and up to four speed-dial groups.

  • Four programmable buttons can be configured via web settings for specific functions like speed dial, volume control, hands-free mode, push-to-talk, or redial.

  • Audio performance is fully customizable with adjustable speaker and microphone sensitivity, supporting multiple voice coding methods including G.711, G.722, G.723, G.726, and G.729.

  • Network connectivity supports two SIP lines (SIP 2.0, RFC3261) and a full suite of IP protocols such as IPv4, TCP, UDP, TFTP, RTP, RTCP, and DHCP.

  • The system offers simple wall-mounted installation and can be customized with multiple housing styles and colors to fit specific aesthetic or functional needs.

Protocol SIP2.0(RFC-3261)
  Voltage POE
Audio Amplifier 3W
Volume Control Adjustable
Support RTP
Codec G.729、G.723、G.711、G.722、G.726
Power Supply 12V (±15%) / 1A DC or PoE
LAN 10/100BASE-TX s Auto-MDIX, RJ-45
WAN 10/100BASE-TX s Auto-MDIX, RJ-45
Installation Wall-mounted
Weight 3.8KG

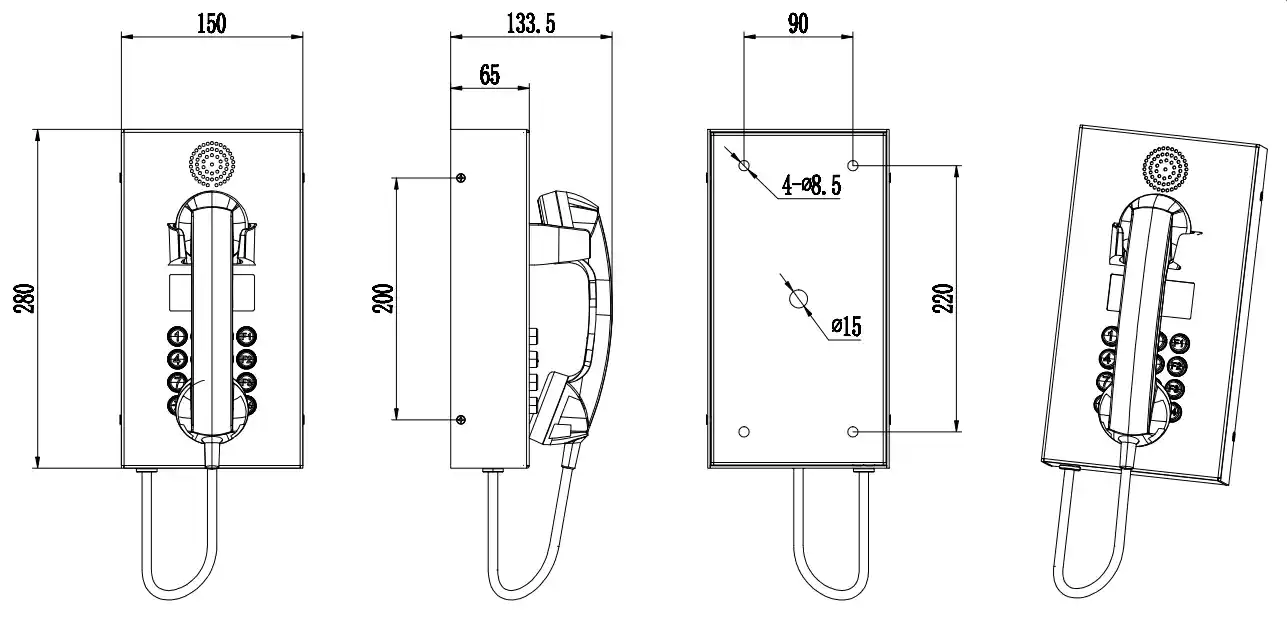

DIMENSIONS

JWAT206P 5

PACKAGE

We prioritize the safety of your product throughout transit. Each unit is carefully packed using high-density foam inserts or custom-molded cushioning within a durable corrugated cardboard box. Our packaging design is rigorously tested to meet industrial shipping standards, ensuring excellent protection against shock, vibration, and handling stress.

Unit Size: 300*200*140MM
Carton Size： 330*150*150MM
Packaging materials: Pearl cotton, Carton
Unit Net Weight: 3.8KG
Carton Gross Weight 4KG
Emergency Prison SIP Phone in Packaging for Secure Communication.
FREQUENTLY ASKED QUESTIONS
What makes this telephone vandal-resistant?
It features a rugged metal housing, tamper-proof screws, and a reinforced handset with armored cord, designed to withstand impact, abuse, and harsh public environments.
Is the telephone suitable for outdoor installation?
Yes. It is built for demanding environments, and models with IP65–IP67 protection offer reliable performance in rain, dust, and extreme temperatures.
What applications are vandal-resistant telephones commonly used in?
They are ideal for prisons, public transport stations, parks, parking lots, highways, industrial plants, and any high-risk or unsupervised areas.
What certifications do your vandal-resistant telephones have?
Models typically comply with CE, FCC, RoHS, and ISO9001 standards. Specific certificates can be provided upon request.

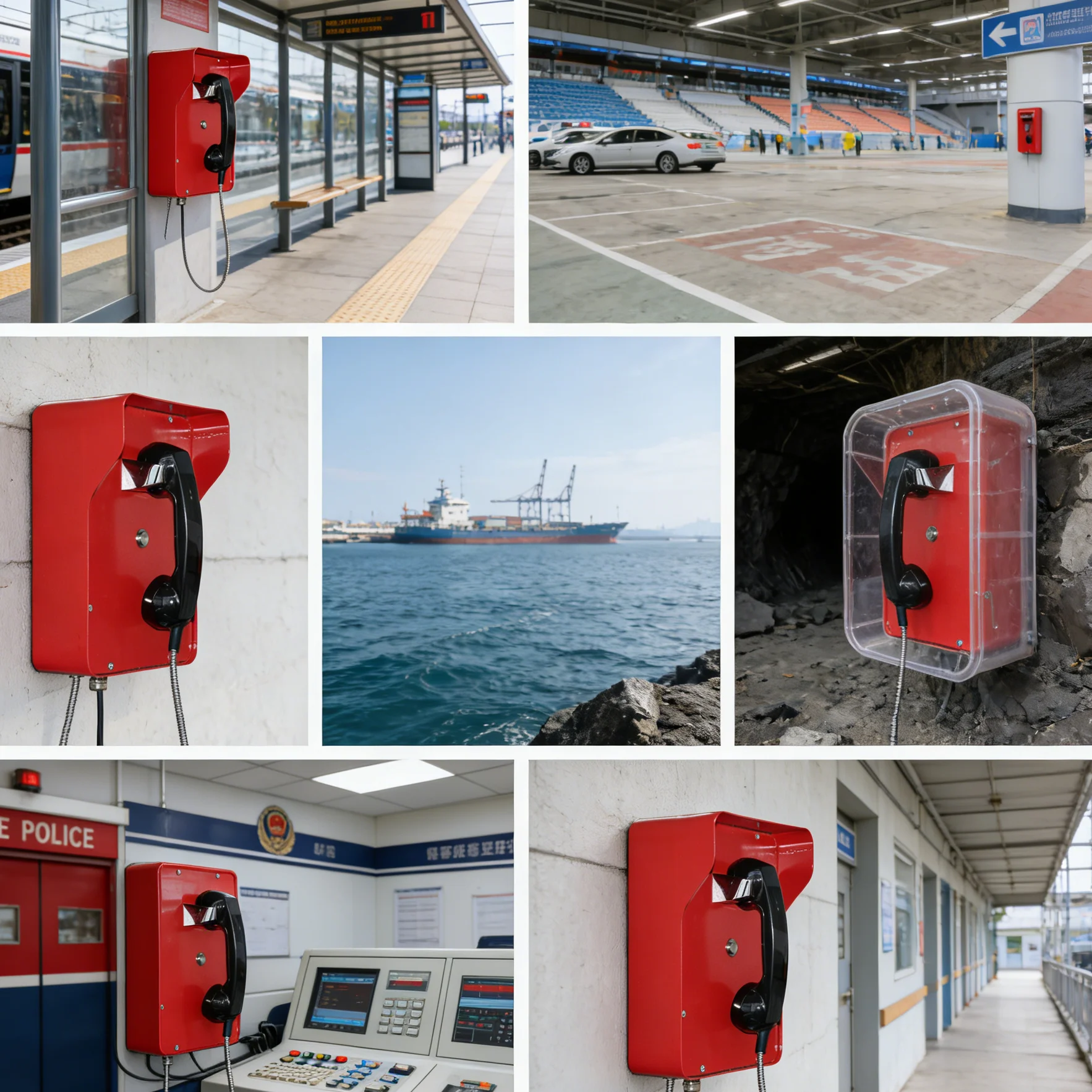

This red emergency telephone is specifically designed for high-risk and public areas, ensuring quick and reliable communication in a wide range of environments.

Public Transit & Infrastructure

  • Transportation Hubs: Bus Stations, Taxi Stands, Railway Applications, Tunnels, Subways.
  • Municipal Facilities: Parking Lots, Stadiums, Bank Halls, ATM Machines.
  • Specialized Environments: Marine Applications, Underground Mining, Industrial Sites.

Security & Emergency Services

  • Emergency Agencies: Firefighter/Fire Departments, Police Stations.
  • Secure Facilities: Prisons, Jails, Guard Stations.

Institutional & Architectural

  • Healthcare: Hospitals.
  • Commercial/Building: Indoor and Outdoor Buildings, Industrial Settings.

JWAT206P 7

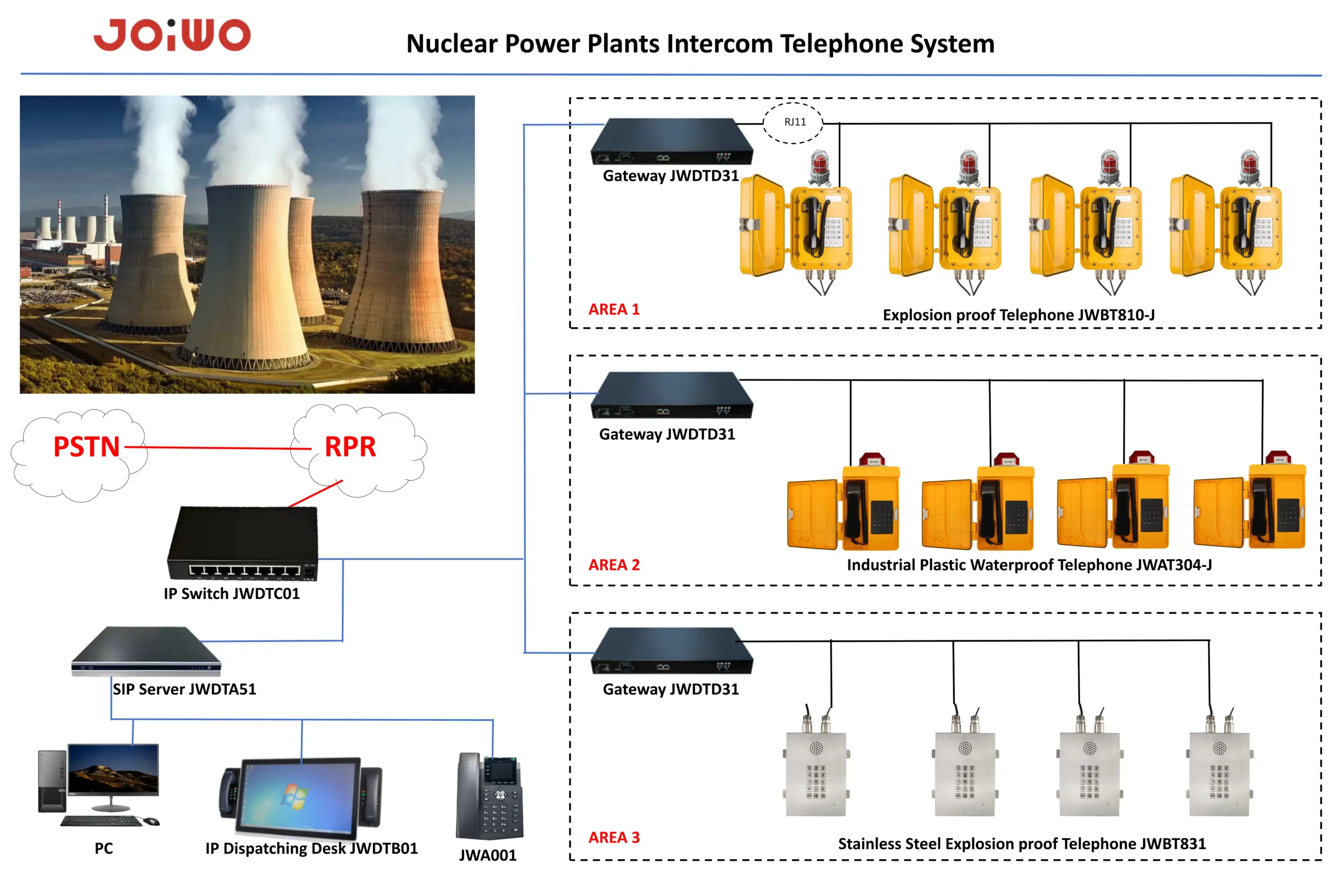

As a public emergency telephone system manufacturer, Joiwo’s Integrated SIP Communication Solution is specifically designed for environments that demand extreme reliability, security, and durability. By combining high-strength stainless steel hardware with advanced VoIP technology, Joiwo provides a seamless communication bridge for high-security facilities (prisons), public infrastructure, and harsh industrial sites.

System Architecture & Key Features

  • Vandal-Proof & High Security: Constructed from heavy-duty SUS304 stainless steel with an armored cord, this system is virtually indestructible. It is the ideal choice for correctional facilities and public areas where equipment is prone to tampering or heavy use.
  • All-Weather Industrial Reliability: With an IP65 weatherproof rating, the system operates flawlessly in dusty, humid, or corrosive environments, such as chemical plants, tunnels, and marine platforms.
  • Smart IP Management (SIP 2.0): The system integrates easily with standard IP-PBX servers (like Asterisk, 3CX, Broadsoft). It supports PoE (Power over Ethernet), allowing power and data to run through a single RJ45 cable, simplifying large-scale deployments.
  • Visual & Accessible Communication: JWAT206P 6The integrated LCD display provides real-time caller ID and system status, while the built-in Inductive Coupler ensures compliance with accessibility standards for the hearing impaired.
  • Remote Maintenance & Efficiency: Administrators can program and troubleshoot the phones remotely via the network, significantly reducing on-site maintenance costs and ensuring 24/7 system uptime.
