Full Big Size Jail Hotline Telephone-JWAT149

The JWAT149 Telephone is designed to automatically dial a preset number immediately when the handset is lifted, ensuring fast and reliable communication in emergency or service situations.

This model features a rugged housing made from high-quality stainless steel or cold-rolled steel, providing excellent resistance to corrosion, oxidation, and vandalism. It includes an instruction or advertising window, allowing users to display important notes, reminders, or guidance information.

Built for harsh industrial environments, the JWAT149 offers exceptional impact resistance and is equipped with a high-tensile handset capable of withstanding up to 100 kg of pulling force. Tamper-resistant security screws further enhance the unit’s strength, durability, and protection against misuse.

Widely used in：

MARINE ENVIRONMENT

HIGHWAY SHOULDER

SUBWAY STATION

TUNNEL

UNDERGROUND FACILITY

RAILWAY PLATFORM

MINING SITE

OTHERS

KEY FEATURES

Standard analogue telephone, powered directly by the phone line (no external power required)

304 stainless steel housing with high mechanical strength and excellent impact resistance

Vandal-resistant handset featuring an internal steel lanyard and reinforced grommet for enhanced handset cord security

Heavy chrome metal keypad bezel, metal buttons, and reinforced hook-switch lever designed to withstand abuse and vandalism

Magnetic hook switch with reliable reed switch design

Automatic Dialing: Preprogrammed numbers can be dialed automatically for fast communication.

Optional noise-canceling microphone for improved voice clarity in noisy environments

Wall-mounted design for simple and secure installation

Weatherproof protection rated IP54-IP65, suitable for indoor and semi-outdoor use

Connection interface: RJ11 screw terminal pair cable

Multiple color options available upon request

In-house manufactured telephone spare parts ensure long-term availability and maintenance support

Certified compliant with CE, FCC, RoHS, and ISO 9001 standards

Power Supply	Telephone Line Powered
Voltage	DC48V
Standby Work Current	≤1mA
Frequency Response	250～3000 Hz
Ringer Volume	＞80dB(A)
Corrosion Grade	WF2
Ambient Temperature	-40～+70℃
Atmospheric Pressure	80～110KPa
Relative Humidity	≤95%
Anti-vandalism Level	IK10
Installation	Wall-mounted

DIMENSIONS

JWAT149 (7)

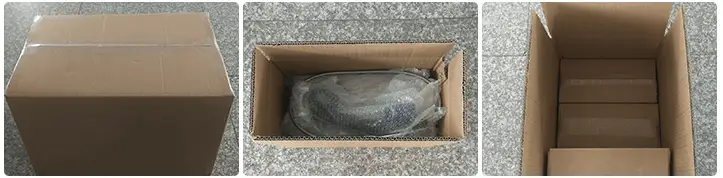

PACKAGE

Each telephone is carefully packaged to ensure safe delivery and maximum protection during transportation. The unit is cushioned with high-performance shock-absorbing materials and enclosed in a durable, export-grade carton, providing excellent protection against impact, moisture, and vibration.

All accessories are clearly labeled and neatly organized, allowing for quick and straightforward installation upon receipt. For large-scale projects or special requirements, customized packaging solutions are also available, including OEM branding, personalized labeling, and bulk pallet arrangements.

Unit Size:	533.6190.5162.7MM
Unit Box Size:	550210190MM
Unit Net Weight:	5.3KG
Carton Gross Weight	5.5KG

FREQUENTLY ASKED QUESTIONS

1. What makes a prison or industrial telephone different from a regular telephone?

Industrial and prison telephones are designed for high-security and high-durability environments. They feature vandal-resistant materials, tamper-proof designs, reinforced cords, and are often weatherproof for indoor or outdoor use.

2. Are these telephones weatherproof and dustproof?

Yes. Most models meet IP54 or higher standards, offering protection against dust, water, and harsh environmental conditions. Some can even withstand extreme temperatures and corrosive environments.

3. Can the telephone be integrated into a larger communication system?

Absolutely. These phones can be integrated with emergency communication systems, IP PBX, PAGA systems, control rooms, and other unified network solutions. Custom OEM features can also be added.

4. Are the handsets vandal-resistant?

Yes. Handsets are typically reinforced with steel cords or internal lanyards and made of high-strength materials to prevent tampering or damage.

5. What installation options are available?

These telephones are generally wall-mounted for stability and security. Installation is simple, with all accessories clearly labeled. Some models support flush-mounting or surface-mounting for added protection.

6. What certifications do these telephones have?

Quality and compliance are ensured with certifications such as CE, FCC, RoHS, and ISO9001, depending on the manufacturer.

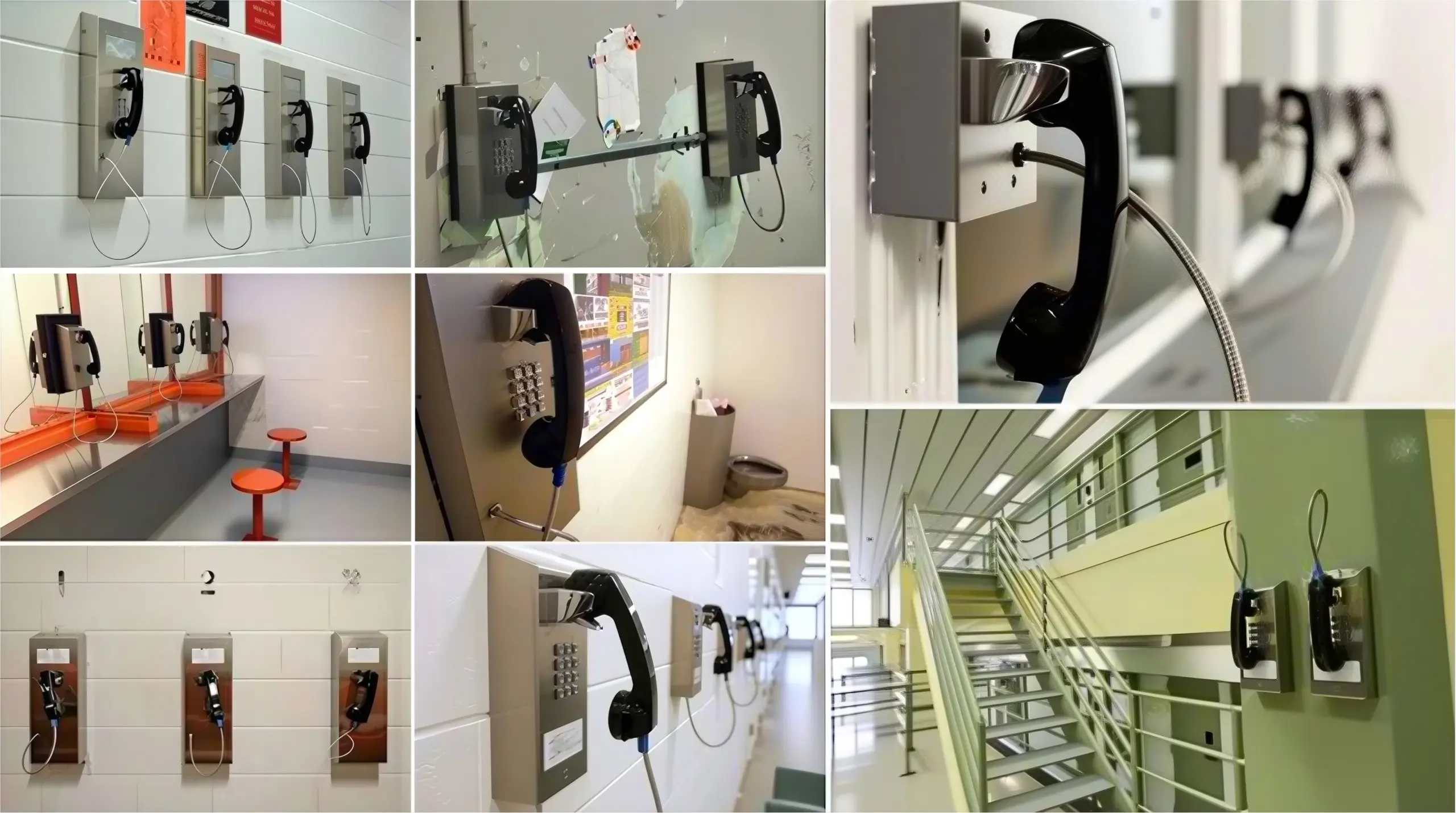

This stainless steel telephone is engineered for reliable operation in a wide range of demanding environments, including correctional facilities, hospitals, oil rigs and offshore platforms, dormitories, airports, control rooms, sally ports, schools, industrial plants, gates and entryways, PREA-compliant areas, and public waiting rooms.

Featuring a rugged, vandal-resistant stainless steel housing, the telephone delivers long-term durability and stable performance in high-traffic locations as well as harsh industrial and security-sensitive environments. Its robust design ensures continuous, dependable communication where reliability is critical.

JWAT149 (5)

Joiwo provides a complete prison communication solution designed for high-security environments, enabling controlled inmate communication, accurate identity management, and centralized supervision.

Key Features

Anti-vandal prison telephones

Call restriction, monitoring, and recording

IC card and fingerprint-based inmate identification

Prepaid / postpaid call billing

POS-based inmate consumption management

Video visitation and secure messaging(Optional Extensions)

Managed access and unauthorized mobile prevention(Optional Extensions)

Advantages

Prison-grade security design

Centralized management platform

Flexible system expansion

Applicable to prisons, detention centers, and high-security correctional facilities.

JWAT149 (4)
