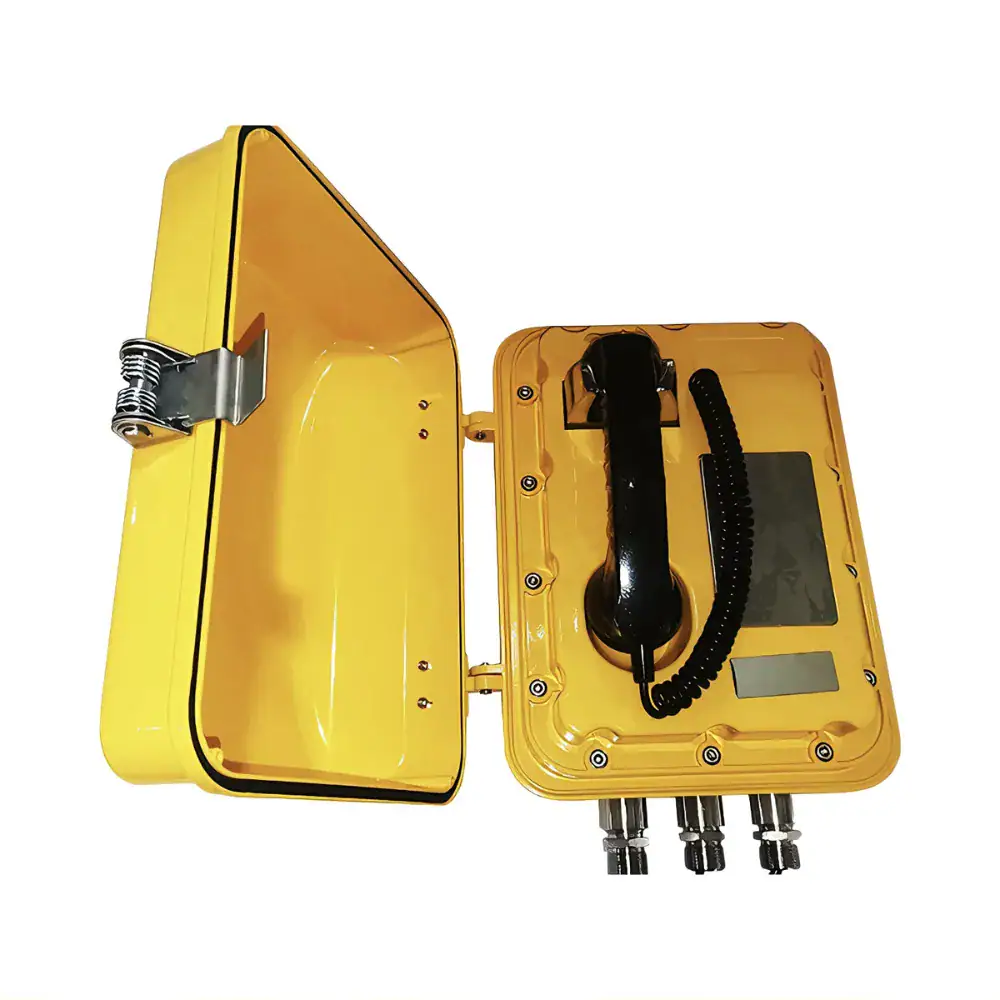

Bright yellow emergency telephone box with handset, digital display, and multiple connection ports, designed for safety and communication in critical situations.

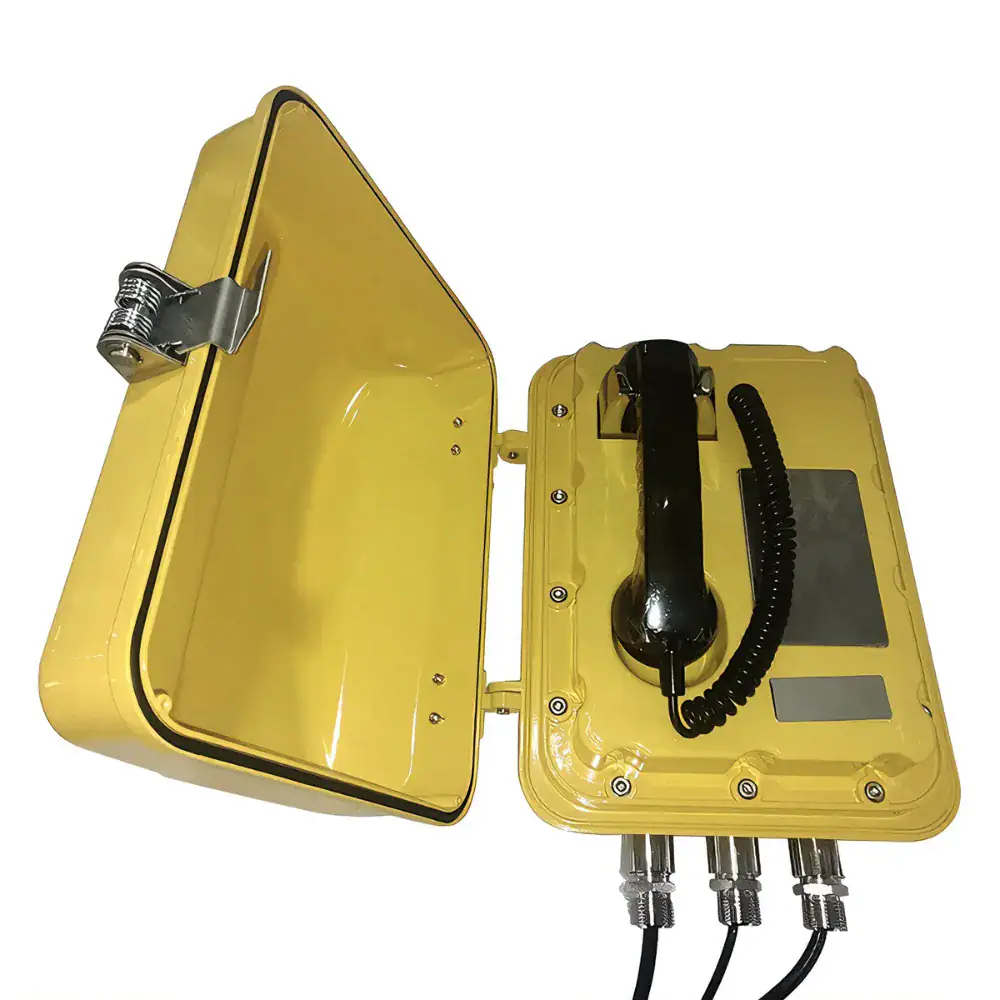

Wireless communication device with yellow protective casing and multiple connection ports. Ideal for industrial or remote applications, featuring a rugged design, antenna, and various input/output con.

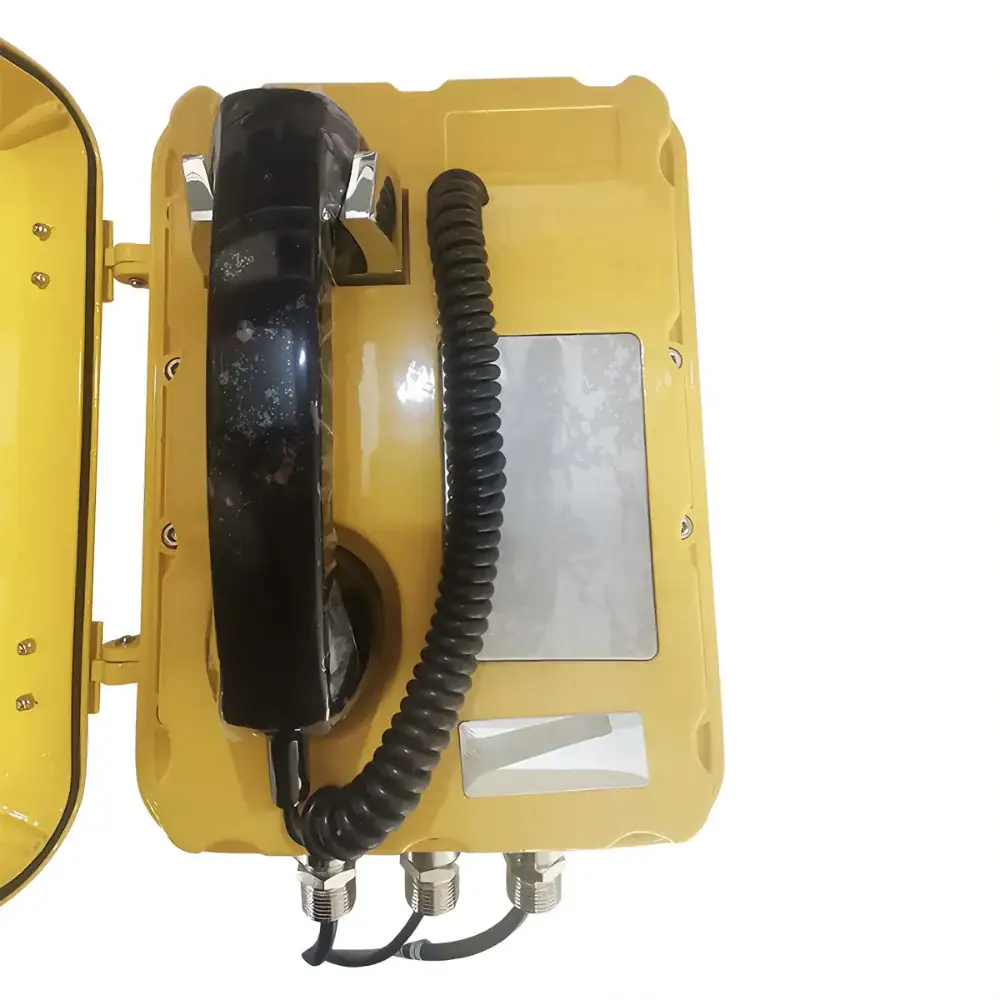

Wireless industrial emergency phone with rugged yellow casing and black handset, designed for harsh environments. Features durable construction, secure connections, and easy access for quick communica.

Industrial Explosion Proof & Flame Proof Telephone JWBT810-2

The JWBT series explosion-proof and flame proof telephones are designed for hazardous and high-noise industrial environments. The particular model of JWBT810-2 features a rugged aluminum alloy die-cast body, sealable enclosure, high-temperature powder coating, and an integrated circuit design combining call, power, and protection functions. Built with premium components and tested under extreme conditions, it ensures reliable, safe communication even in the harshest conditions.

Widely used in：

MARINE ENVIRONMENT

HIGHWAY SHOULDER

SUBWAY STATION

TUNNEL

UNDERGROUND FACILITY

RAILWAY PLATFORM

MINING SITE

OTHERS

KEY FEATURES

Built to be both flame proof and explosion proof, Joiwo JWBT810-2 is your best ATEX & IP compliant option for communication devices in industrial setting. Its advantages are:

1. Standard analogue phone powered by the phone line, with an available SIP/VoIP version.
2. Aluminum alloy die-cast shell offering high mechanical strength and excellent impact resistance.
3. Heavy-duty handset featuring a hearing aid-compatible receiver and a noise-canceling microphone.
4. Stainless steel keypad with auto-dialing functionality.
5. Weatherproof design meeting IP66 to IP67 protection standards.
6. Operates reliably within a temperature range of -40°C to +70°C.
7. Finished with a UV-stabilized polyester powder coating.
8. Wall-mounted design for easy installation.
9. Available in multiple housings and colors.
10. In-house production of telephone spare parts available.
11. Compliant with CE, FCC, RoHS, and ISO9001 standards.

Explosion-proof mark	ExdibIICT6Gb/EXtDA21IP66T80℃
Power Supply	Telephone Line Powered or Power supply
Voltage	24–65 VDC
Standby Work Current	≤0.2A
Frequency Response	250～3000 Hz
Ringer Volume	>80dB(A)
Amplified Output Power	10～25W
Corrosion Grade	WF1
Ambient Temperature	-40～+60℃
Atmospheric Pressure	80～110KPa
Relative Humidity	≤95%
Lead Hole	1-G3/4”
Installation	Wall-mounted

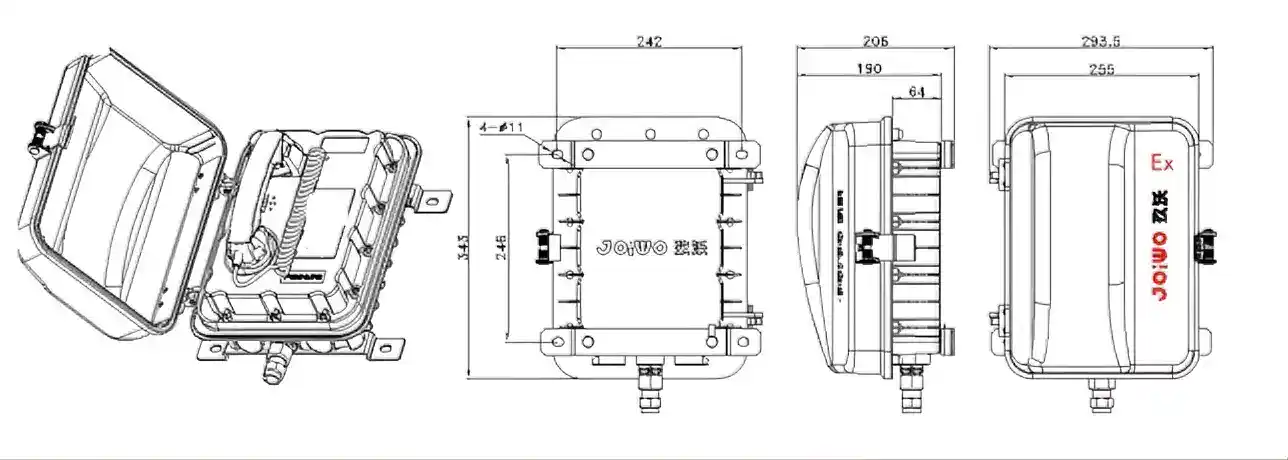

DIMENSIONS

JWBT810-2 (2)

PACKAGE

Each explosion-proof telephone is shipped in durable, protective packaging designed for secure transport and storage. The packaging features impact-resistant materials and clear labeling for easy handling, with OEM and custom packaging options available.

Unit size	343×294×206 (mm)
Carton size	440320270 (mm)
Packaging materials	Pearl cotton, Carton
Net weight	10 KG
Gross weight	10.5 KG

Packaging and shipping of WooCommerce app products for online stores.

FREQUENTLY ASKED QUESTIONS

Q1: What certifications should I look for in an explosion-proof telephone?

Key international certifications include ATEX (EU), IECEx (global), and UL/CSA (North America). These ensure the device meets strict safety standards for use in defined hazardous zones. Additional common certifications may cover corrosion resistance, weatherproofing (IP66/IP67), and industry compliance (e.g., CE, RoHS).

Q2: Do explosion-proof telephones support modern communication systems?

Yes. Modern explosion-proof telephones often support SIP/VoIP protocols, allowing integration with IP-PBX and network-based communication systems. Some models also offer analog/POTS connectivity for traditional line compatibility.

Q3: Can these telephones be customized?

We offer OEM and customization options, including branding, color variations, special functions (e.g., emergency call buttons, strobe lights), and tailored communication features to meet specific project or operational requirements.

Q4: How are explosion-proof telephones installed?

They are typically wall- or pole-mounted using sturdy brackets and sealed cable entries to maintain protection ratings. Professional installation following manufacturer guidelines and local hazardous area regulations is recommended.

This industrial telephone is designed for explosive gas atmospheres in Zone 1 and Zone 2.

Compatible with explosive gas groups IIA, IIB, and IIC.

Suitable for hazardous dust environments in Zone 20, 21, and 22.

Supports temperature classes T1 to T6.

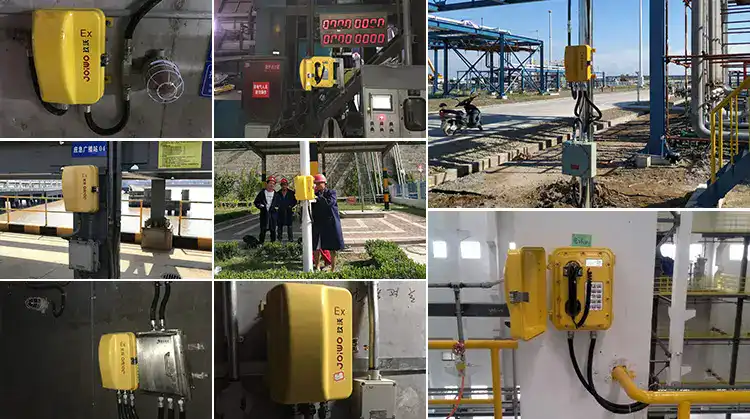

Ideal for use in hazardous gas and dust atmospheres across industries such as petrochemical, tunneling, metro and railway systems, LRT, highways, marine and offshore, mining, power plants, and bridges.

JWBT810-2 (7)

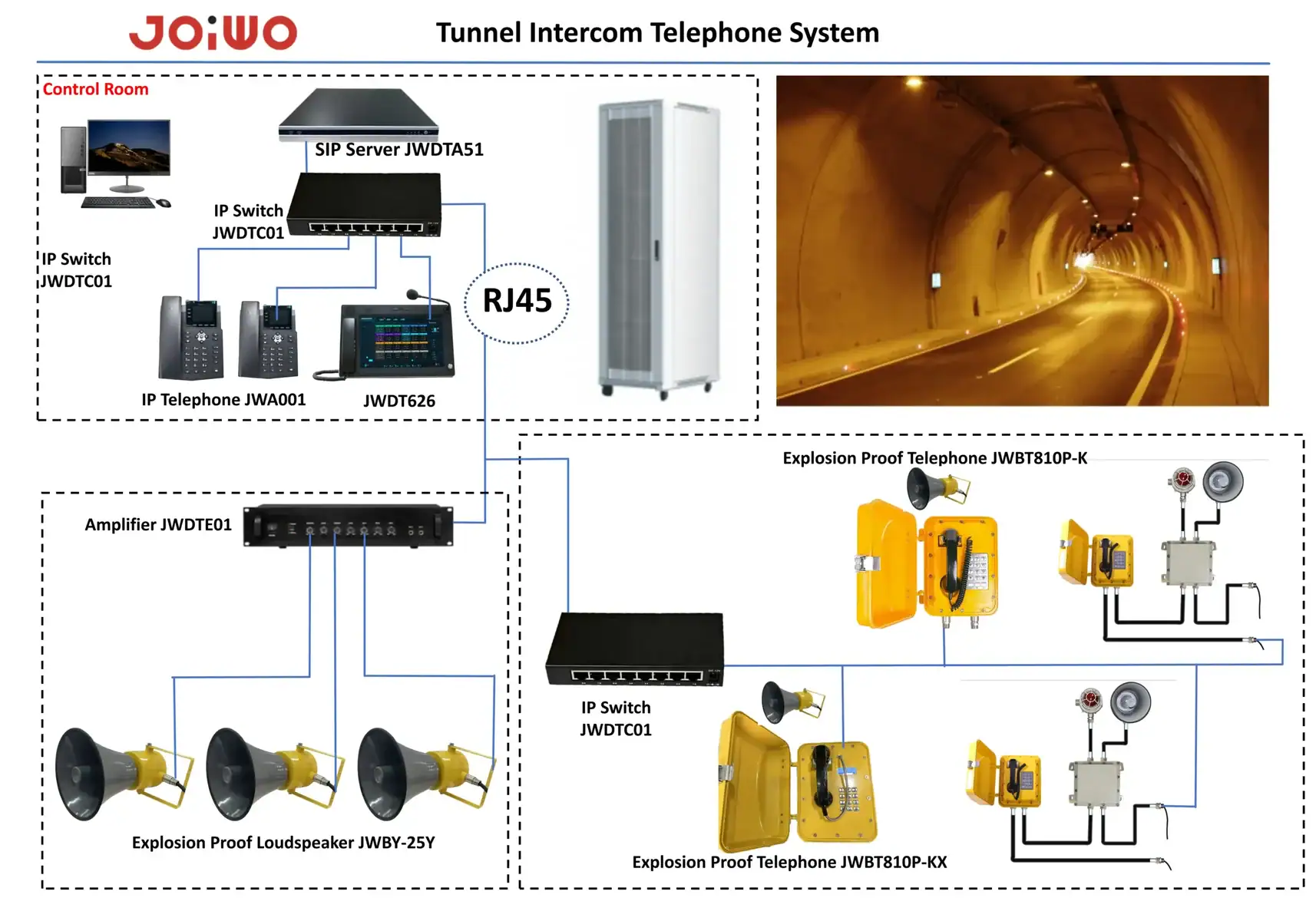

The JWBT series explosion-proof telephones are part of a complete industrial communication system designed for hazardous and high-noise environments. Our solution integrates centralized control, voice communication, emergency alerting, and monitoring, providing a fully reliable network for personnel safety and operational efficiency. The system supports analog, SIP/VoIP, and GSM/3G connections, enabling flexible deployment across petrochemical plants, tunnels, railways, marine/offshore platforms, mining sites, and power plants. With robust, weatherproof, and explosion-proof devices, combined with centralized management software and scalable network architecture, this system ensures seamless communication, rapid response in emergencies, and long-term operational reliability.

JWBT810-2 (1)
