Industrial Explosion Proof ATEX Telephone JWBT810

The JWBT810 Explosion-Proof ATEX Telephone is a mission-critical emergency communication device engineered for reliable operation in the most demanding outdoor industrial environments. It combines a rugged, durable construction with certified intrinsic safety and explosion-proof protection, making it qualified for use in ATEX Zone 1, Zone 2, and Zone 21.

Featuring a high-strength aluminum alloy housing, the telephone delivers exceptional weather resistance and a superior IP rating for protection against dust and water ingress. Designed for clarity and reliability in emergencies, it ensures uninterrupted communication where it matters most.

OEM support and comprehensive customization services are also available to tailor the device to your specific application requirements.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

  1. The standard analogue phone is powered directly by the phone line.

  2. Its aluminum alloy die-casting shell provides high mechanical strength and strong impact resistance.

  3. It features a heavy-duty handset with a hearing aid compatible receiver and a noise-canceling microphone, along with a magnetic reed hook-switch.

  4. The zinc alloy keypad features 15 buttons, including 0–9, *, #, as well as redial, flash, SOS, and mute functions.

  5. Its weatherproof defense grade is IP68, ensuring full protection against dust and water immersion.

  6. The operating temperature range extends from -40 degrees to +70 degrees Celsius.

  7. The unit is finished with a powder-coated, UV-stabilized polyester coating for enhanced durability.

  8. It is designed for wall mounting and offers simple installation.

  9. Multiple housing options and colors are available to suit different environments.

  10. Self-made telephone spare parts are also available for easy maintenance.

  11. The telephone complies with CE, FCC, RoHS, and ISO9001 standards.

Item Technical data
Explosion-Proof Mark ExdibIICT6Gb/EXtDA21IP66T80℃
Power Supply Telephone Line Powered
Voltage 24–65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Amplified Output Power 10～25W
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 1-G3/4”
Installation Wall-mounted

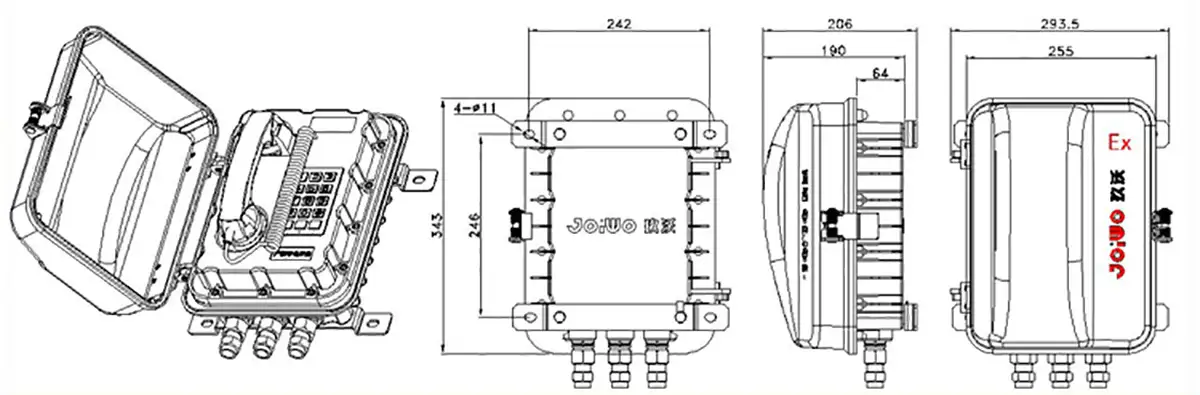

DIMENSIONS

JWBT810 (3)

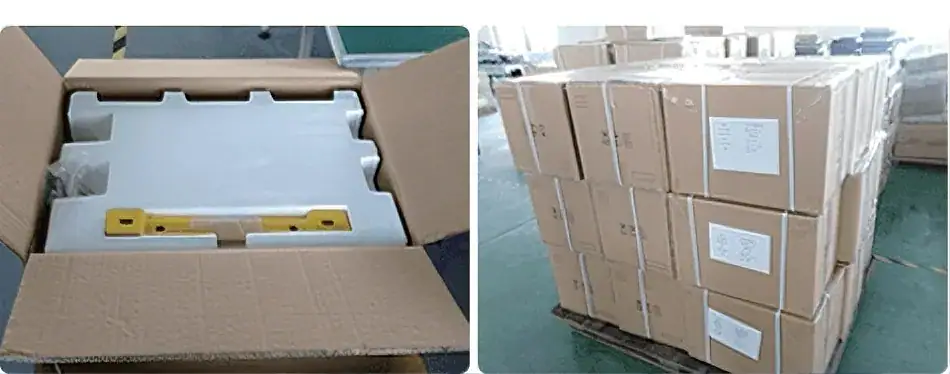

PACKAGE

Every explosion-proof telephone is delivered in robust, protective packaging engineered to ensure complete security during transport and long-term storage. The packaging utilizes impact-resistant materials and features clear, intuitive labeling for straightforward handling and identification.

We also offer flexible OEM and fully custom packaging solutions to align with your specific logistical requirements and brand standards.



Unit size 343×294×206 (mm)
Carton size 440*320*270 (mm)
Packaging materials Pearl cotton, Carton
Net weight 10 KG
Gross weight 10.5 KG
Proof industrial telephone for hazardous environments.
FREQUENTLY ASKED QUESTIONS
Q1: What certifications should I look for in an explosion-proof telephone?
Key international certifications include ATEX (EU), IECEx (global). These ensure the device meets strict safety standards for use in defined hazardous zones. Additional common certifications may cover corrosion resistance, weatherproofing (IP66/IP67), and industry compliance (e.g., CE, RoHS).
Q2: Can these telephones be customized?
We offer OEM and customization options, including branding, color variations, special functions (e.g., emergency call buttons, strobe lights), and tailored communication features to meet specific project or operational requirements.
Q3: How are explosion-proof telephones installed?
They are typically wall- or pole-mounted using sturdy brackets and sealed cable entries to maintain protection ratings. Professional installation following manufacturer guidelines and local hazardous area regulations is recommended.

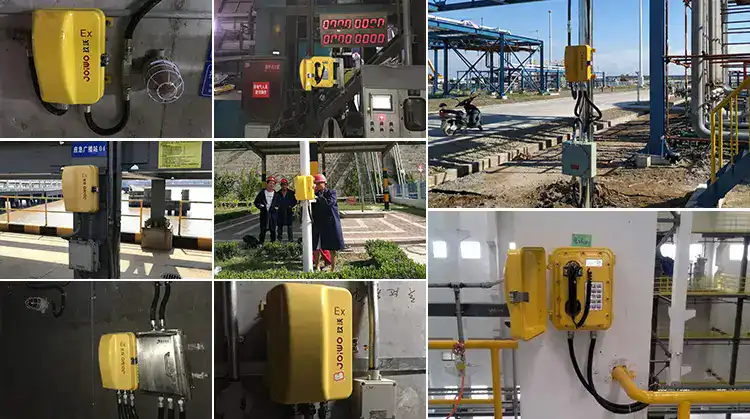

Ideal for locations with flammable gases, vapors, or combustible dust, it is commonly installed in:

  • Oil & Gas Facilities and Petrochemical Plants
  • Mines, Tunnels, Metro & Railway Systems
  • Highways, Bridges & Power Plants
  • Marine Vessels and Offshore Platforms
  • This telephone ensures dependable communication in the most critical and hazardous industrial areas worldwide.

JWBT810 (2)

Joiwo operates not merely as a manufacturer, but as a dedicated integrator of robust telecommunications systems. We deliver comprehensive, end-to-end communication infrastructures—from terminal equipment to core network solutions—tailored to meet the specific demands of each client and environment.

Our Integrated Solutions Include:

  • Core Communication Systems: IP PBX and IP servers for reliable, scalable connectivity.
  • Management & Monitoring Platforms: Telephone self-diagnostic systems and unified network management for optimal performance and control.
  • Specialized Critical Systems: Public Address & General Alarm (PAGA) and Emergency Voice Communication Systems (EVCS) for safety and coordination.
  • Full Customization Support: Tailored OEM solutions and functional customization to fit unique operational requirements.

At Joiwo, we design, build, and support seamlessly integrated systems engineered to perform with unwavering reliability in the world’s most demanding environments. We provide not just products, but total communication confidence.

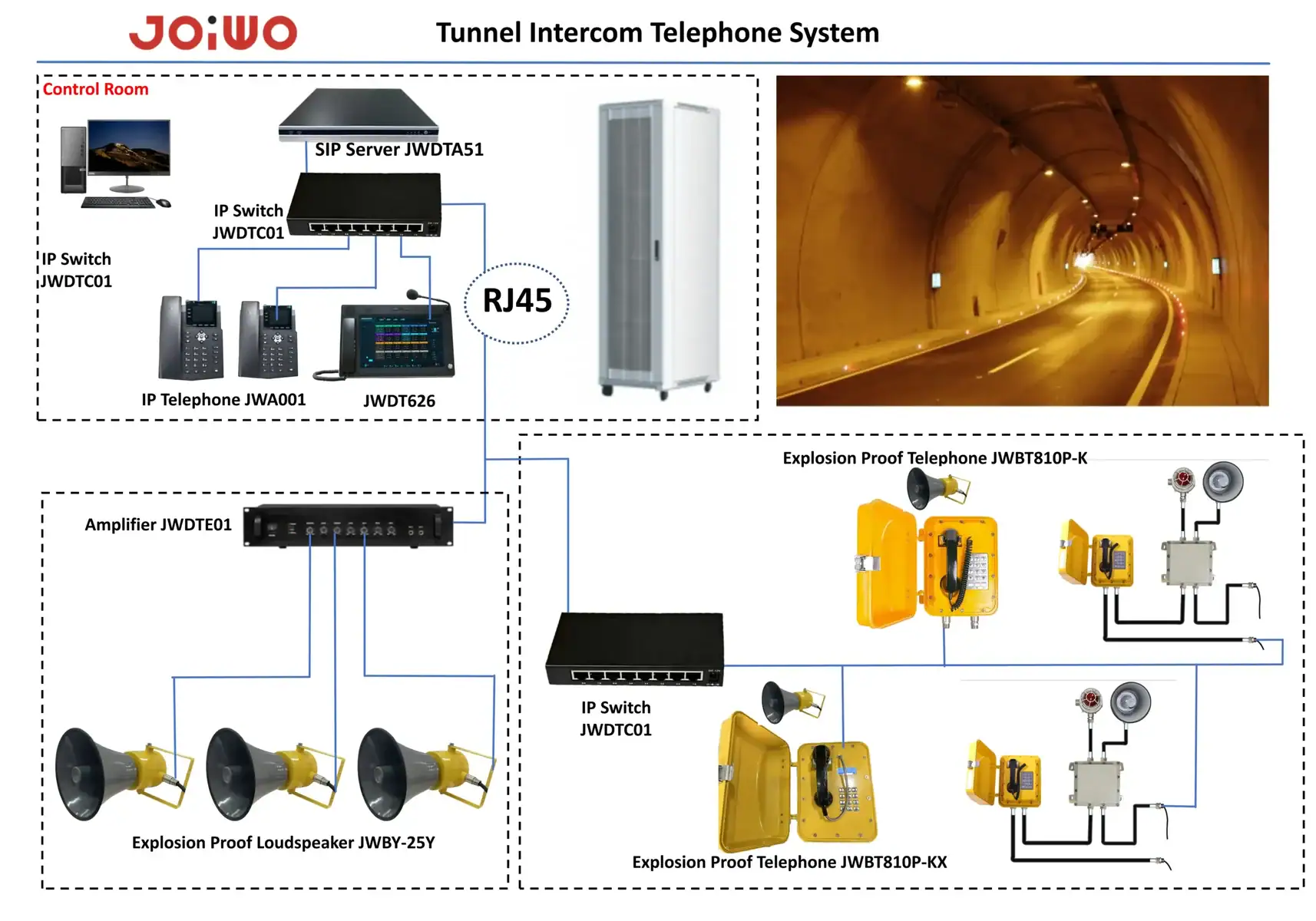

JWBT810 (7)
