IP66 Weatherproof Industrial IP Phone JWAT316P

The JWAT316P industrial IP phone features a durable rolled steel housing with high impact resistance. Its high-temperature powder coating prevents static buildup without electrostatic spraying. The integrated circuit board combines core communication and noise-reduction circuits in a single unit. Equipped with premium components from top international brands, the phone undergoes rigorous testing, including temperature trials and component screening. Comprehensive protective treatments enhance its environmental adaptability and durability, ensuring reliable performance in harsh industrial environments.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

The industrial IP phone features a rugged aluminum alloy die-cast shell, providing high mechanical strength. It supports SIP 2.0 (RFC3261) and offers 2-line capability for flexible communication.

Delivering superior audio quality, it uses G.711, G.722, and G.729 codecs with full-duplex functionality and echo cancellation. The network-ready design includes DHCP, xDSL PPPoE, and WAN/LAN bridge modes.

Equipped with a heavy-duty handset, it has a noise-canceling microphone and hearing-aid compatibility. Its IP68-rated waterproof construction and zinc alloy keypad ensure durability in extreme weather conditions.

Installation is simple with easy wall-mount options, and it features a ringing volume exceeding 80dB(A). Multiple color options and in-house spare parts availability guarantee long-term usability.

The device meets CE, FCC, RoHS, and ISO9001 certifications, confirming its safety and quality compliance.

Voltage DC12V  or POE
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ≥85dB
Defend Grade IP65
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Cable Gland 3-PG11
Weight 5.5kg

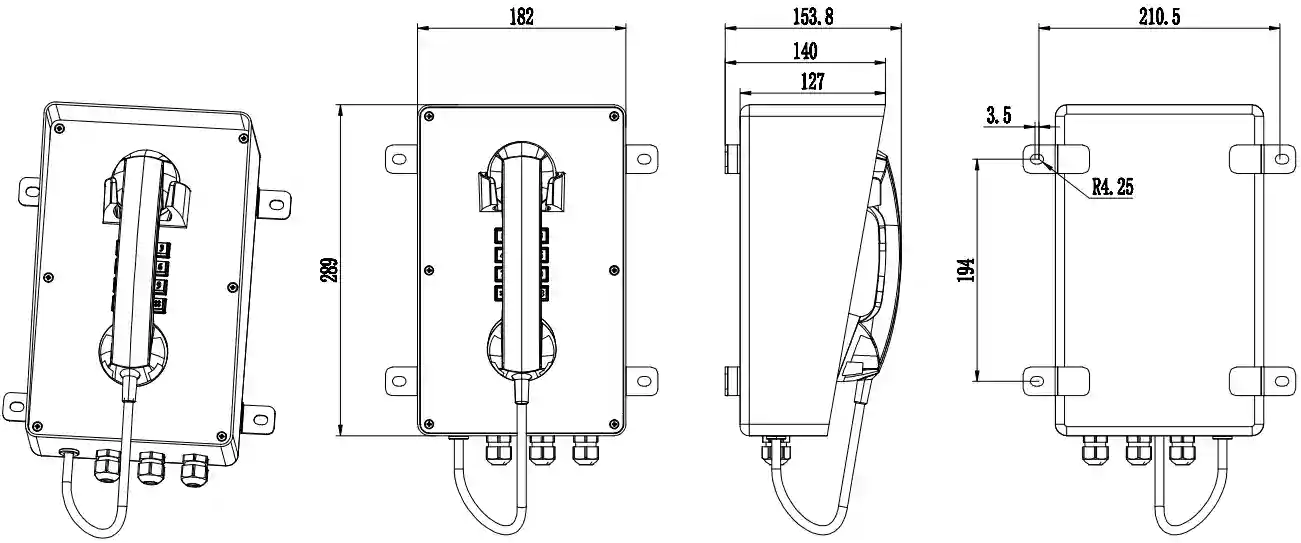

DIMENSIONS

PACKAGE

We prioritize reliability from warehouse to site. Each industrial telephone is packed in high-density foam or tailored pulp trays to absorb impacts, while rugged double-walled cartons safeguard against pressure. Proper labeling and handling instructions ensure your device arrives fully protected and ready for use in demanding environments.

Unit size 289×182×127 (mm)
Carton size 440*320*270 (mm)
Packaging materials Pearl cotton, Carton
Net weight 5 KG
Gross weight 5.5 KG
Weatherproof industrial telephone for harsh environments, IP66 rated for dust and water resistance, suitable for outdoor use and industrial settings.
FREQUENTLY ASKED QUESTIONS
1. What is the waterproof rating of your telephone?
Our waterproof telephones are typically rated IP65-IP67, meaning they are fully protected against water spray, heavy rain, and temporary immersion. The specific rating varies by model.
2. Can the waterproof telephone be used in harsh outdoor environments?
Yes. The device is engineered with corrosion-resistant materials, sealed housings, and robust keypads, making it suitable for outdoor, industrial, marine, and high-humidity environments.
3. Does the telephone require special installation for waterproof performance?
No special tools are needed, but proper sealing of the cable entry and mounting surface is required. We provide installation diagrams and accessories to ensure optimal waterproof protection.
4. What types of networks are supported (analog/IP)?
We offer both analog waterproof telephones and SIP/VoIP waterproof telephones, allowing compatibility with existing PBX systems, IP networks, or industrial communication setups.
5. Is customization available (color, keypad layout, logo, features)?
Absolutely. We provide OEM/ODM support, including customized colors, keypads, branding, and additional functions such as auto-dialing, hotline, speaker, beacon light, and more.
6. How is the audio performance in noisy environments?
The telephones use noise-reduction microphones, high-power receivers, and optional amplified speakers, ensuring clear communication even in environments like factories, tunnels, and marine decks.

This weatherproof industrial IP phone is widely used in environments with stringent requirements for moisture, fire, noise, dust, and frost, such as subways, highways, power plants, petrol stations, docks, and steel mills. Its durable construction and reliable performance make it ideal for demanding industrial and public settings.

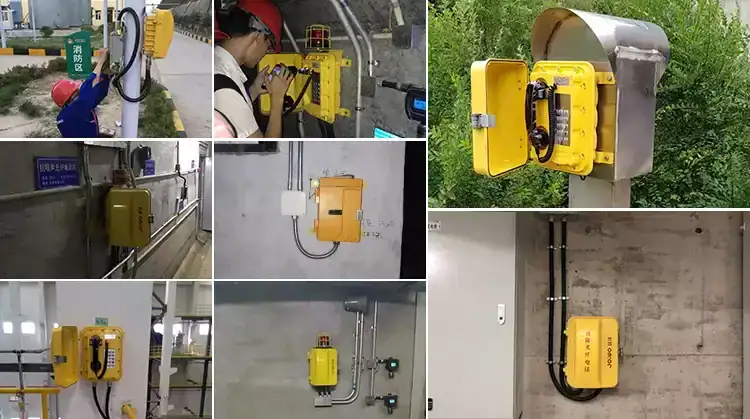

Weatherproof industrial telephone mounted outdoors for harsh environments.

At Joiwo, we go beyond manufacturing—we deliver complete telecom solutions. From terminal equipment to fully integrated, end-to-end communication systems, we tailor our solutions to fit each customer’s operational demands. Our capabilities span IP PBX platforms, IP servers, self-diagnosing telephones, PAGA solutions, unified network management, Emergency Voice Communication Systems, and custom OEM functions for project-specific needs.

Weatherproof industrial telephone JWAT316P designed for harsh environments, featuring IP66 rating for dust and water resistance, suitable for outdoor and industrial use.
