Industrial Waterproof Emergency Telephone JWAT206
The JWAT206 offers a robust carbon steel construction combined with precise engineering and an integrated waterproof seal, making it ideal for indoor use. If you plan to install it outdoors without any cover, our team can modify it to ensure reliable performance in all weather conditions. By enhancing its design and materials, we upgrade it to an IP65–IP66 rating, providing dependable protection against the elements.
Reliable Outdoor Communication
Engineered for outdoor and demanding environments, this waterproof emergency telephone provides secure, immediate communication when you need it most. Built to withstand physical abuse and harsh weather, it ensures users can always connect during critical situations.
Key Features
-
Rugged Construction: Constructed from robust cold-rolled steel with a durable powder coating to ensure excellent impact resistance.
-
Weather Protection: Achieving an IP65 rating for dust and water resistance, the unit features a built-in protective rain canopy for added defense against the elements.
-
Vandal-Resistant Handset: Includes a heavy-duty, anti-vandal handset reinforced with an internal steel lanyard to prevent tampering or theft.
-
Instant Hotline Function: Automatically dials a pre-programmed number the moment the handset is lifted, facilitating rapid emergency response without the need for a keypad.
-
Durable Components: Utilizes a non-mechanical magnetic hook switch for enhanced longevity and reliable daily operation.
-
Audio Enhancement: An optional noise-canceling microphone is available to guarantee crystal-clear communication in loud or windy environments.
-
Simple Deployment: Designed for easy wall mounting using standard RJ11 screw terminal connections.
-
Certified Quality: Fully compliant with CE, FCC, RoHS, and ISO9001 international safety and quality standards.
| Voltage | DC48V |
| Standby Work Current | ≤1mA |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≥80dB(A) |
| Corrosion Grade | WF2 |
| Ambient Temperature | -30～+60℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Lead Hole | 1-Ø10 |
| Installation | Wall-mounted |
We place the utmost importance on protecting your product during transit. Each unit is securely packed with high-density foam inserts or custom-molded cushioning inside a sturdy corrugated cardboard box. Our packaging is rigorously tested to meet industrial shipping standards, providing reliable protection against shocks, vibrations, and handling stress.

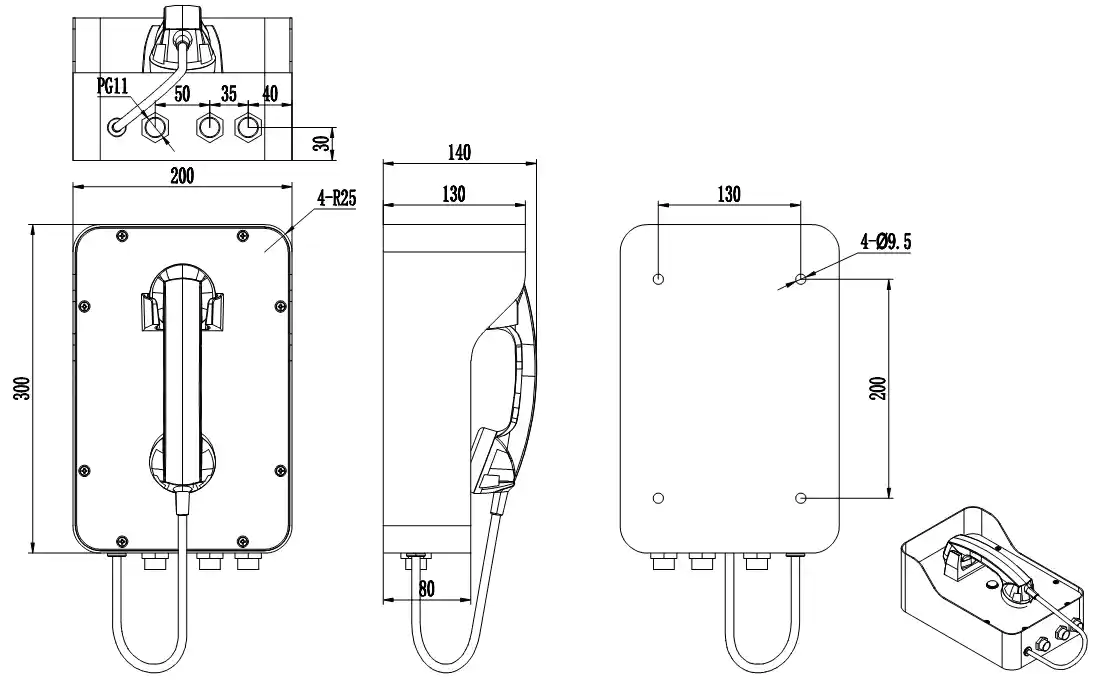

| Unit Size: | 300*200*140MM |
| Carton Size: | 440*340*270MM |
| Packaging materials: | Pearl cotton, Carton |
| Unit Net Weight: | 5.0KG |
| Carton Gross Weight | 5.5KG |

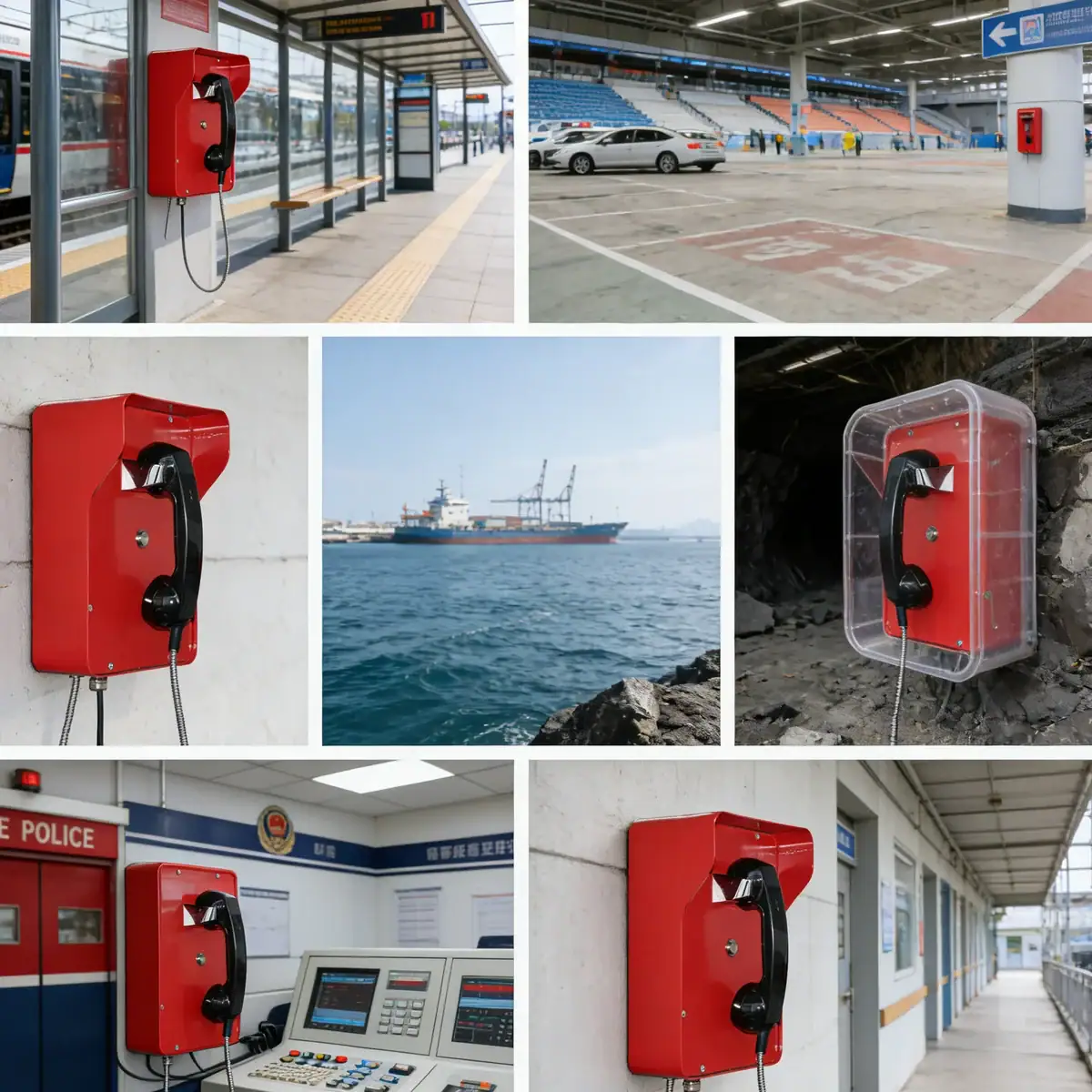

This red emergency telephone is purpose-built for high-risk and public areas, providing fast and reliable communication across a variety of environments.
Public Transit & Infrastructure
- Transportation Hubs: Bus stations, taxi stands, railway facilities, tunnels, and subways.
- Municipal Facilities: Parking lots, stadiums, bank halls, and ATMs.
- Specialized Environments: Marine applications, underground mining sites, and industrial settings.
Security & Emergency Services
- Emergency Agencies: Fire departments, police stations, and other first responders.
- Secure Facilities: Prisons, jails, and guard stations.
- Institutional & Architectural Applications
- Healthcare: Hospitals and medical centers.
- Commercial & Industrial Buildings: Indoor and outdoor structures, warehouses, and industrial sites.

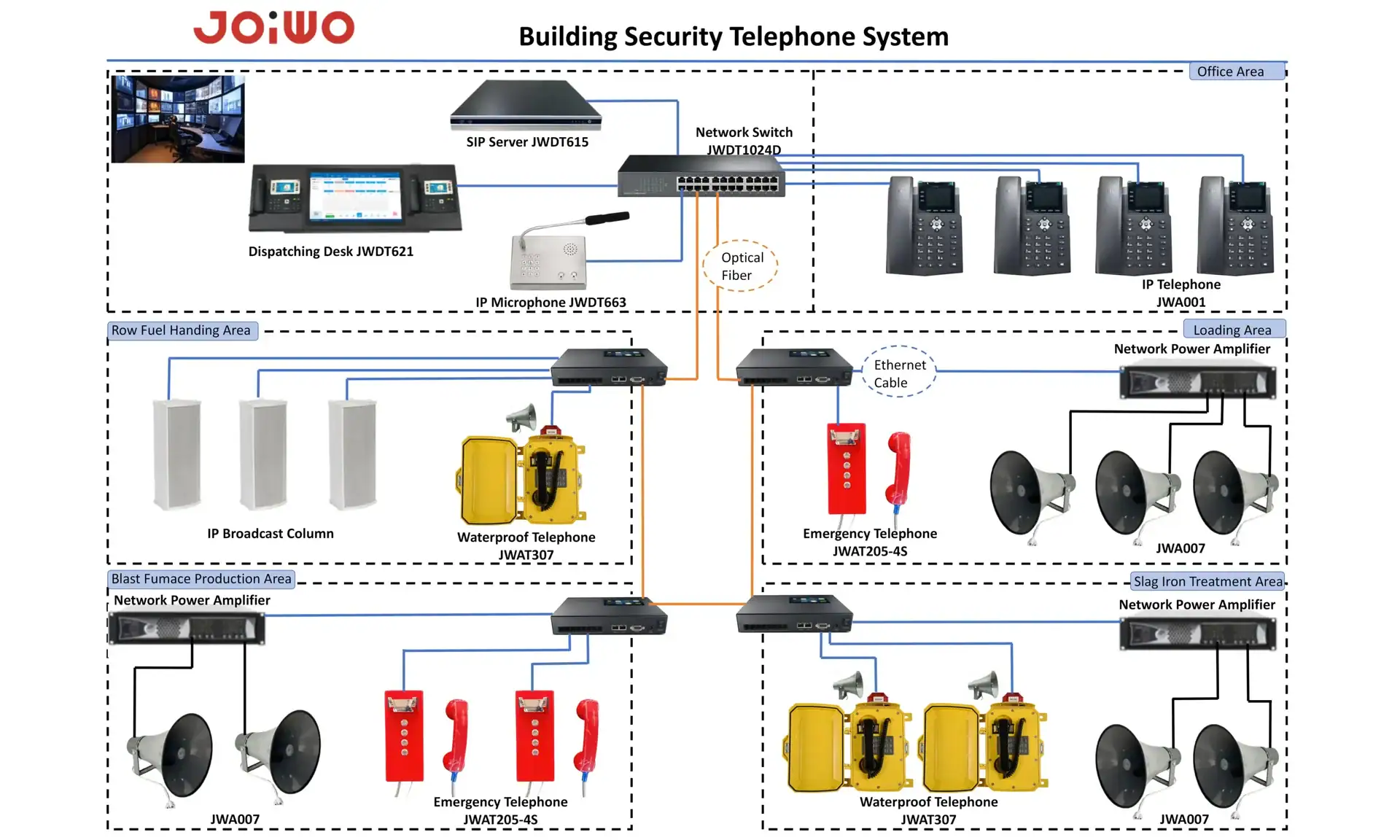

Joiwo’s strength lies in delivering complete, end-to-end communication systems tailored to each customer’s unique needs, going far beyond simply supplying devices. Our portfolio includes comprehensive telecom solutions, IP PBX and IP servers, telephone self-diagnostic platforms, Public Address and General Alarm (PAGA) systems, customized OEM functions, Unified Network Management Systems, and Emergency Voice Communication Systems (EVCS).
