Industrial Weatherproof Telephone with Horn Loudspeaker and Flashlight JWAT301-KJ

Built for harsh environments, this industrial waterproof telephone features a fully sealed, corrosion-resistant aluminum alloy casing, ensuring dust and water protection with high reliability. Integrated loudspeaker and alarm light provide instant audio-visual alerts for incoming calls.

Since 2005, we’ve specialized in industrial telecom solutions, with rigorous waterproof testing, international certifications, and full production control for high quality and dependable after-sales support.

Widely used in:
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

Designed for the most demanding environments, this industrial telephone with horn loudspeaker delivers crystal-clear communication. Built to withstand harsh outdoor and underground heavy-duty industrial conditions, this rugged device ensures your team stays connected in extreme environments or under high ambient noise.

To provide the ultimate communication solution, this weatherproof telephone with horn loudspeaker combines high-grade materials with advanced acoustic engineering. Here is a breakdown of its core features:

  • Extreme Durability: The rugged aluminum alloy die-cast shell offers exceptional impact resistance and high mechanical strength.
  • Total Weather Protection: Rated IP67, this device provides complete defense against dust and water ingress, making it perfect for outdoor or wash-down applications.
  • Superior Audio Quality: It features a heavy-duty handset equipped with a noise-cancelling microphone and a hearing-aid-compatible receiver.
  • Loud & Clear Alerts: The integrated horn loudspeaker delivers a ringing volume of over 80 dB(A).
  • Rugged Waterproof Keypad: The highly durable zinc alloy keys are completely waterproof. You can easily customize key functions to include speed dial, redial, flash, hang-up, or mute to fit your workflow.

This industrial telephone with horn loudspeaker also utilizes standard analog phone functionality, allowing for seamless integration into your existing communication network. Installation is straightforward thanks to its convenient wall-mounted design and secure RJ11 screw terminal connections.

To match your facility’s safety guidelines or corporate branding, the telephone is available in multiple color options. It is also designed with longevity in mind, and we offer readily available spare parts for easy, cost-effective maintenance.

Furthermore, you can trust in its world-class reliability, as the unit is fully certified to CE, FCC, RoHS, and ISO9001 standards.

Power Supply Telephone Line Powered
Voltage 24–65 VDC
Standby Work Current ≤0.2A
Frequency Response 250~3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+60℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Cable Gland 1-PG11
Installation Wall-mounted

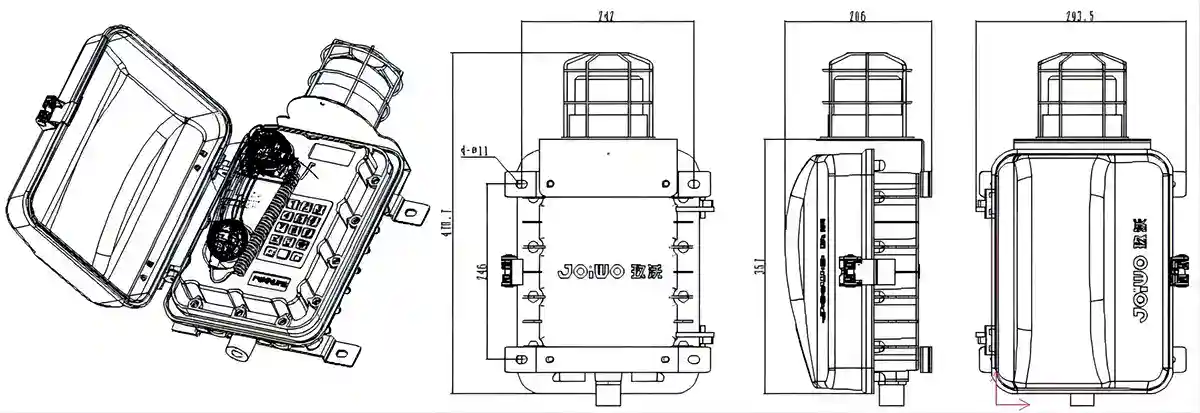

DIMENSIONS

JWAT301-KJ (7)

PACKAGE

We ensure the safe delivery of every industrial telephone. Each unit is securely nestled in high-density foam or custom-molded pulp trays to prevent movement and absorb shocks during transit. The outer packaging uses durable double-walled corrugated cardboard for maximum stacking strength and protection against external pressure. All cartons are clearly labeled with product details, handling instructions, and standard shipping marks, guaranteeing that your telephone arrives in perfect condition for immediate deployment.



Unit size 343×294×206 (mm)
Carton size 440*320*270 (mm)
Packaging materials Pearl cotton, Carton
Net weight 7 KG
Gross weight 8 KG
Waterproof industrial telephone with loudspeaker and flashlight, designed for harsh environments, packaged securely in a cardboard box for shipping and storage.
FREQUENTLY ASKED QUESTIONS
1. What is the waterproof rating of your telephone?
Our waterproof telephones are typically rated IP65-IP67, meaning they are fully protected against water spray, heavy rain, and temporary immersion. The specific rating varies by model.
2. Can the waterproof telephone be used in harsh outdoor environments?
Yes. The device is engineered with corrosion-resistant materials, sealed housings, and robust keypads, making it suitable for outdoor, industrial, marine, and high-humidity environments.
3. Does the telephone require special installation for waterproof performance?
No special tools are needed, but proper sealing of the cable entry and mounting surface is required. We provide installation diagrams and accessories to ensure optimal waterproof protection.
4. What types of networks are supported (analog/IP)?
We offer both analog waterproof telephones and SIP/VoIP waterproof telephones, allowing compatibility with existing PBX systems, IP networks, or industrial communication setups.
5. Is customization available (color, keypad layout, logo, features)?
Absolutely. We provide OEM/ODM support, including customized colors, keypads, branding, and additional functions such as auto-dialing, hotline, speaker, beacon light, and more.
6. How is the audio performance in noisy environments?
The telephones use noise-reduction microphones, high-power receivers, and optional amplified speakers, ensuring clear communication even in environments like factories, tunnels, and marine decks.

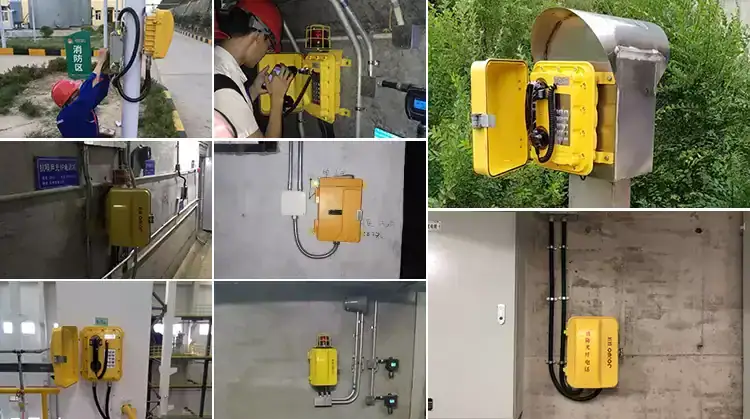

Ideal for heavy-duty applications, this waterproof telephone is commonly used in mining sites, tunnels, marine environments, underground facilities, metro stations, railway platforms, highways, parking lots, steel and chemical plants, power plants, and other demanding industrial settings.

JWAT301-KJ (1)

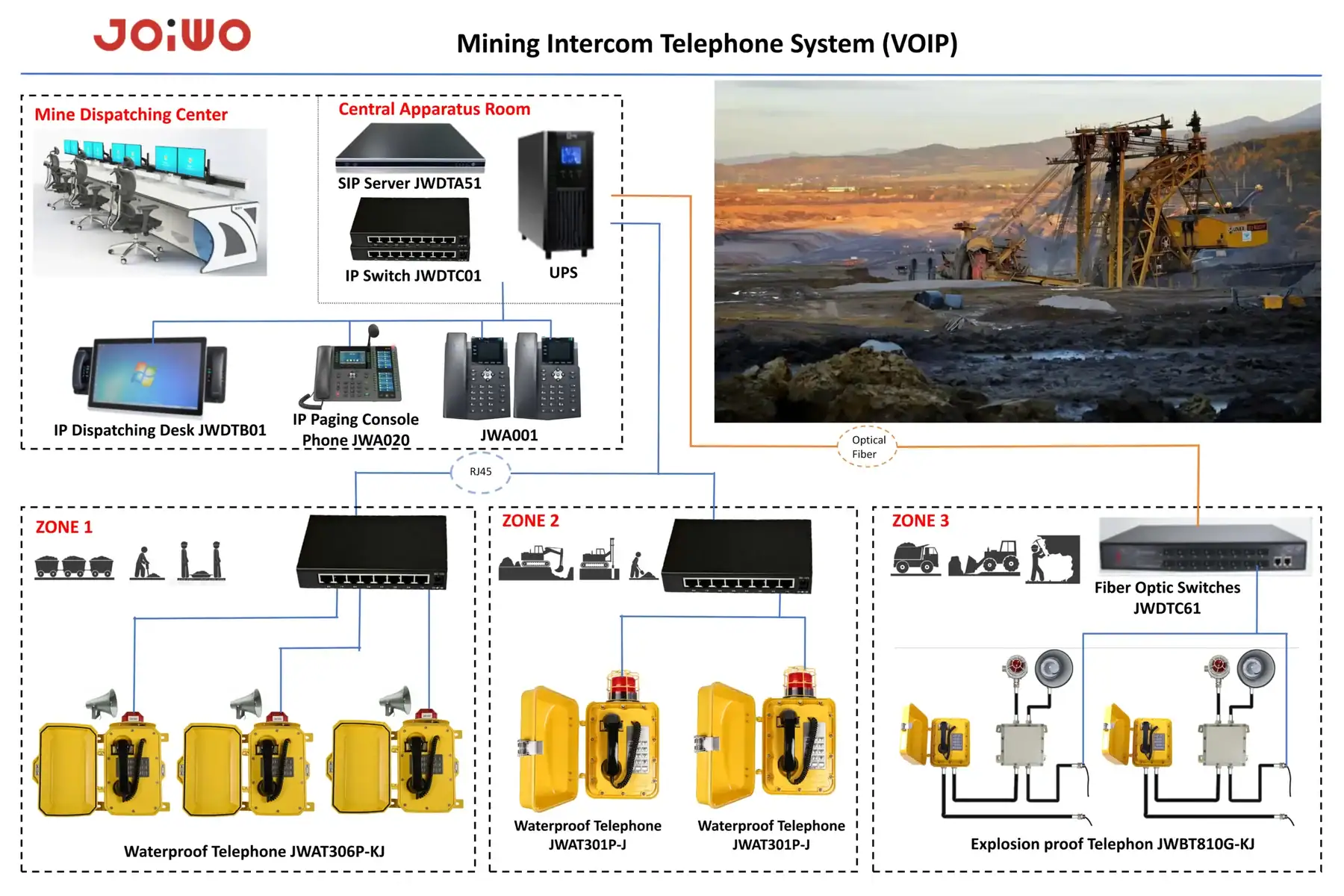

Our industrial waterproof telephone is part of a complete heavy-duty communication system designed for harsh and demanding environments. Integrated with robust wall-mounted units, high-decibel alarms, and optional visual indicators, it ensures reliable voice communication and instant alerting across mining sites, tunnels, marine facilities, power plants, and transportation hubs. The system supports easy installation, modular expansion, and seamless integration with existing analog or VoIP networks. With full compliance to CE, FCC, RoHS, and ISO9001 standards, our solution provides a safe, durable, and maintenance-friendly communication network for critical industrial operations.

JWAT301-KJ (5)
