Industrial Weatherproof IP Telephone for Construction Project JWAT702

This is an industrial-grade, weatherproof telephone, fully enclosed in a corrosion-resistant cast aluminum alloy waterproof casing. Its protective door ensures complete resistance against dust and moisture, resulting in a highly reliable device with an extended MTBF.

Backed by a professional R&D team specializing in industrial telecommunications since 2005, each weatherproof telephone undergoes rigorous waterproof testing and has earned international certifications. With our own factories producing self-manufactured telephone components, we are able to offer competitive pricing, guaranteed quality, and comprehensive after-sales support for our weatherproof telephones.

Widely used in：

MARINE ENVIRONMENT

HIGHWAY SHOULDER

SUBWAY STATION

TUNNEL

UNDERGROUND FACILITY

RAILWAY PLATFORM

MINING SITE

OTHERS

KEY FEATURES

Excellent system expansion and compatibility, supporting standard SIP 2.0 (RFC3261) and related RFC protocols.

One-button direct call dispatch function, with three programmable function keys.

Patented phone casing design that is inherently waterproof and dustproof—no extra cover needed—combining aesthetics with practicality.

Aluminum alloy die-cast shell offers high mechanical strength and strong impact resistance.

Surface treated with high-temperature electrostatic spraying for superior antistatic properties and vibrant, eye-catching colors.

Operating temperature: -30°C to +65°C; Storage temperature: -40°C to +75°C.

Multiple color options available.

Self-manufactured telephone spare parts readily available.

Fully compliant with CE, FCC, RoHS, and ISO9001 standards.

Item	Technical data
Communication Protocol	SIP 2.0(RFC-3261)
Audio Amplifier	2.4W
Audio Speakers	2W
Volume	Adjustable
Supporting Agreement	RTP
Codec	G.729、G.723、G.711、G.722、G.726
Power Supply	12V (± 15%) / 1A DC or PoE
LAN	10/100BASE-TX s Auto-MDIX, RJ-45
WAN	10/100BASE-TX s Auto-MDIX, RJ-45
Installation	Wall-mounted
Communication Protocol	SIP 2.0(RFC-3261)

DIMENSIONS

PACKAGE

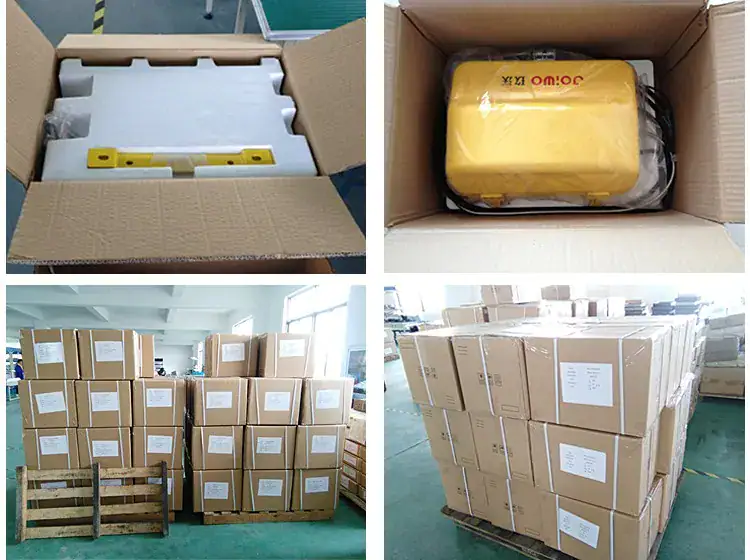

We ensure the safe delivery of every industrial telephone. Each unit is carefully protected in high-density foam or custom-molded pulp trays to prevent movement and absorb shocks during transit. The outer carton is made from durable, double-walled corrugated cardboard, providing maximum stacking strength and resistance to external pressure. All packaging is clearly labeled with product details, handling instructions, and standard shipping marks. Our professional packaging ensures that the telephone’s robust quality is preserved from our warehouse all the way to your demanding application site.

Unit size	339×246×126 (mm)
Carton size	200300440 (mm)
Packaging materials	Pearl cotton, Carton
Net weight	6.5 KG
Gross weight	8 KG

Weatherproof IP telephone for construction sites, designed to withstand harsh environments and ensure reliable communication. Suitable for industrial and outdoor use.

FREQUENTLY ASKED QUESTIONS

1. What is the waterproof rating of your telephone?

Our waterproof telephones are typically rated IP65-IP67, meaning they are fully protected against water spray, heavy rain, and temporary immersion. The specific rating varies by model.

2. Can the waterproof telephone be used in harsh outdoor environments?

Yes. The device is engineered with corrosion-resistant materials, sealed housings, and robust keypads, making it suitable for outdoor, industrial, marine, and high-humidity environments.

3. Does the telephone require special installation for waterproof performance?

No special tools are needed, but proper sealing of the cable entry and mounting surface is required. We provide installation diagrams and accessories to ensure optimal waterproof protection.

4. What types of networks are supported (analog/IP)?

We offer both analog waterproof telephones and SIP/VoIP waterproof telephones, allowing compatibility with existing PBX systems, IP networks, or industrial communication setups.

5. Is customization available (color, keypad layout, logo, features)?

Absolutely. We provide OEM/ODM support, including customized colors, keypads, branding, and additional functions such as auto-dialing, hotline, speaker, beacon light, and more.

6. How is the audio performance in noisy environments?

The telephones use noise-reduction microphones, high-power receivers, and optional amplified speakers, ensuring clear communication even in environments like factories, tunnels, and marine decks.

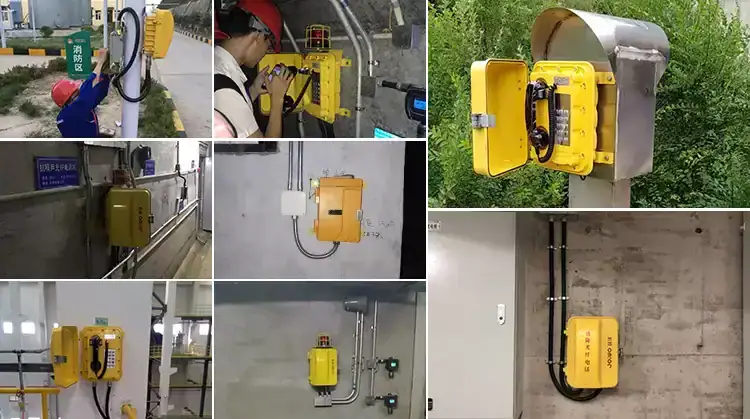

Built for dependable performance in harsh environments, this weatherproof telephone is ideal for critical and demanding applications. It is widely used in tunnels, mining sites, marine environments, and underground facilities. Its durability and reliability make it essential for public areas such as metro stations, railway platforms, and highways. Additionally, it is well-suited for heavy industrial sites, including steel plants, chemical plants, and power plants, as well as general outdoor locations like hotels and parking lots.

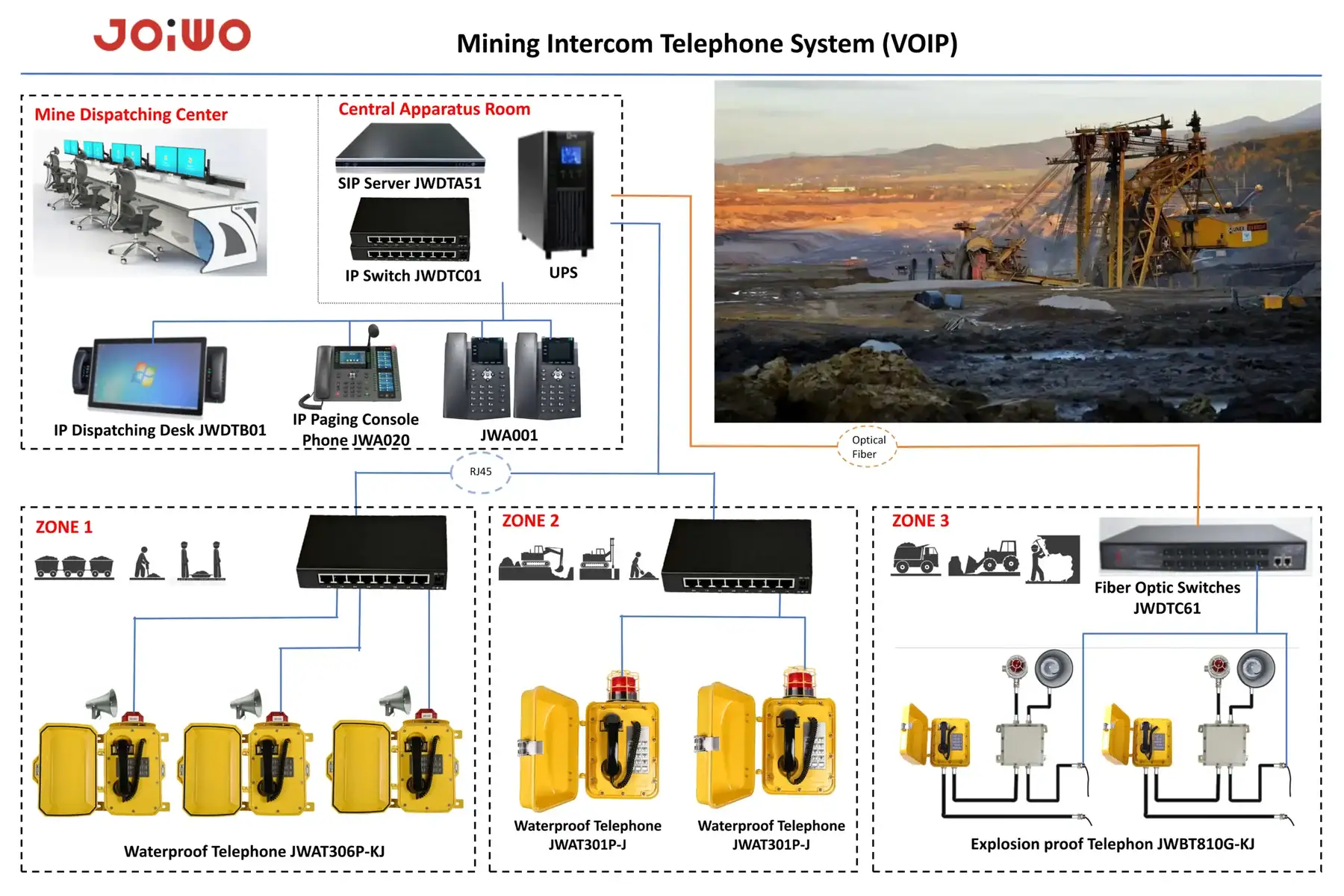

Joiwo is more than a manufacturer—we are a professional integrator of complete telecommunications solutions. Beyond providing terminal equipment, we design and deliver fully integrated, end-to-end communication systems tailored to each customer’s operational needs.

Our expertise covers a broad spectrum of technologies, including IP PBX platforms, IP servers, telephone self-diagnostic systems, PAGA solutions, unified network management systems, Emergency Voice Communication Systems, and customized OEM functions to meet project-specific requirements.
