Industrial Weatherproof IP SIP Phone JWAT306P
The JWAT306P emergency waterproof industrial SIP phone is designed for tough outdoor and industrial conditions. Its robust die-cast aluminum alloy housing, featuring thick walls, provides excellent impact resistance and durability. With an IP67 rating, the phone remains protected even when the door is open, and the sealed door keeps the handset and keypad safe from dust and moisture.
As a leading manufacturer in Asia, we are trusted to supply waterproof phones for critical settings such as tunnels, ensuring reliable emergency communication when it is needed most.
Built to perform reliably in the harshest environments, this industrial SIP phone offers exceptional durability through its sturdy construction and advanced communication features.
Core Design & Durability:
- Rugged Build: Constructed with a high-strength die-cast aluminum alloy shell, it provides excellent mechanical strength and outstanding impact resistance.
- Robust Communication: Comes with a durable handset featuring a hearing aid-compatible receiver and a noise-canceling microphone to ensure clear audio even in noisy settings.
- All-Weather Reliability: Rated IP67 for full protection against dust and water, guaranteeing dependable operation in outdoor conditions.
Intelligent Features & Functionality:
- Easy-to-Use Interface: Equipped with an illuminated stainless steel keypad, with programmable buttons for essential functions like SOS and repeat dialing.
- Powerful Alerts: Includes a 15-25W horn loudspeaker and a DC 12V flashing light to deliver highly visible and audible emergency signals.
- Flexible Installation: Designed for straightforward wall mounting and supports a variety of network connections (WAN/LAN), including Bridge mode, DHCP, and PPPoE for xDSL.
Advanced Technical Specifications:
- Protocol & Codec Support: Compatible with 2-line SIP (RFC3261) and supports a wide range of audio codecs (G.711, G.722, G.729) along with full network protocol support (IPv4, TCP, UDP, RTP, etc.).
- Superior Call Quality: Features full-duplex communication and G.167/G.168 echo cancellation for smooth, uninterrupted conversations.
Quality Assurance & Customization:
Certified Compliance: Meets CE, FCC, and RoHS standards and is produced under an ISO9001 quality management system.
| Item | Technical data |
| Signal Voltage | 100-230VAC |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Amplified Output Power | 10～25W |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+70℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Cable Gland | 3-PG11 |
| Installation | Wall-mounted |
| Signal Voltage | 100-230VAC |
We ensure your industrial telephone arrives in perfect condition. Each unit is secured in custom-fit foam or molded pulp trays to prevent movement, then packed in durable double-walled corton for stacking strength and crush resistance. Clear labeling with product details and handling symbols enables smooth logistics. Our packaging is designed to protect the product from our facility to your site—intact and ready for installation.

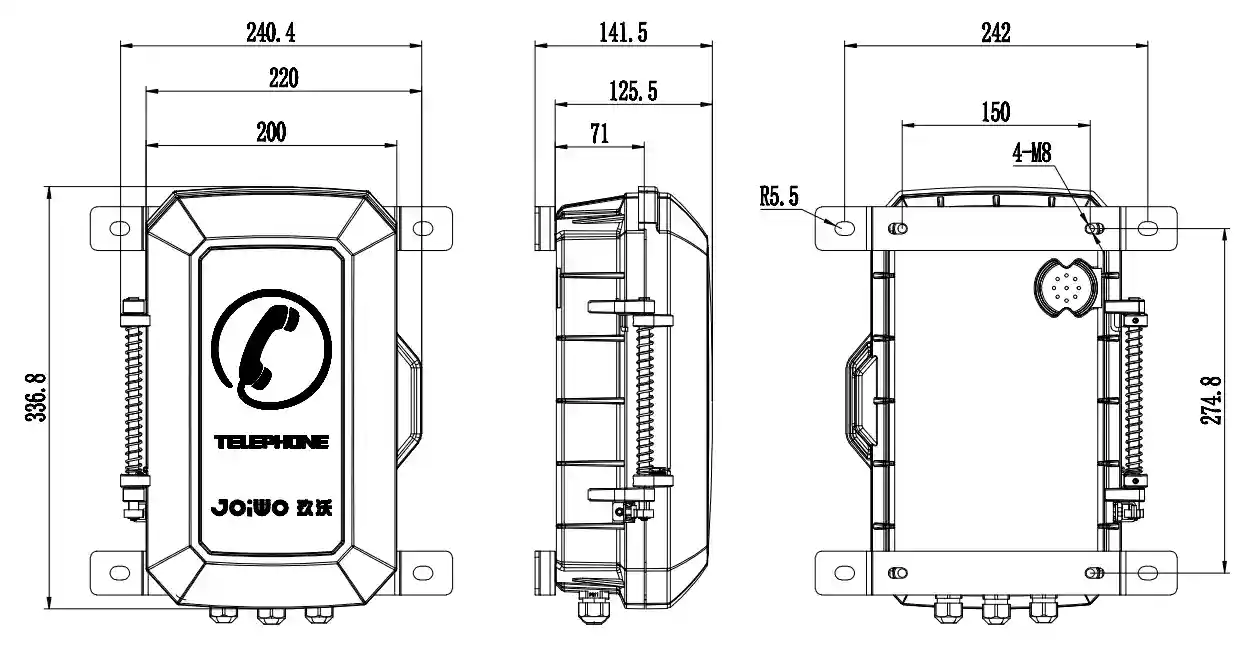

| Unit size | 339×246×126 (mm) |
| Carton size | 470*290*210 (mm) |
| Packaging materials | Pearl cotton, Carton |
| Net weight | 6.5 KG |
| Gross weight | 7 KG |
Joiwo Waterproof Telephone JWAT306P is a mission-critical communication solution engineered for the world’s most demanding environments. Designed to deliver unwavering reliability, it ensures stable, rugged, and crystal-clear voice transmission in sectors such as mining and tunneling, effortlessly enduring extreme dust, humidity, and vibration.
With its fully waterproof, corrosion-resistant, and anti-UV construction, the JWAT306P also excels in harsh marine applications. It provides a robust and trusted communication lifeline, enhancing both operational safety and efficiency wherever durability matters most.

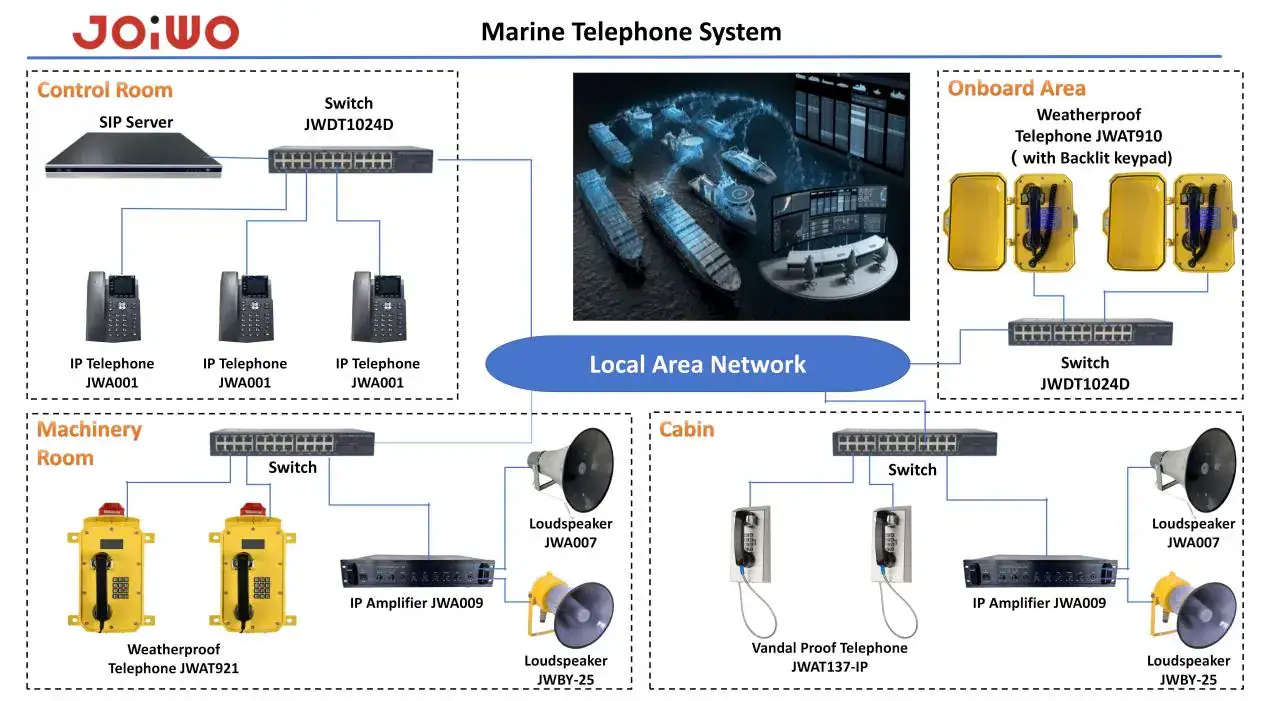

The JWAT306P is more than a standalone device; it’s the cornerstone of a robust, IP-based communication system for critical and harsh environments. This solution integrates seamlessly with existing networks (via SIP protocol) and central management platforms to deliver reliable voice, emergency alert, and broadcast capabilities.
Core Components & Value:
- Rugged Field Terminal: The IP67-rated, corrosion-resistant JWAT306P operates reliably in tunnels, mines, and marine settings.
- Seamless Network Integration: Easily connects to IP-PBX or dispatch systems, supporting key protocols (SIP, RTP, DHCP) for flexible deployment.
- Centralized Control: Enables remote management, group broadcasting, and—when integrated—one-touch SOS alerts with location mapping for swift emergency response.

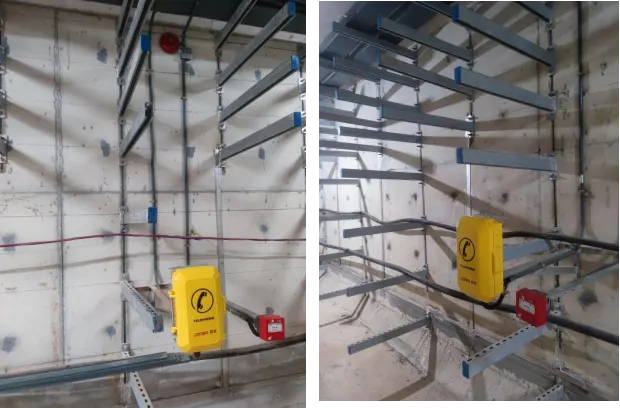

- Application Scenarios: Ideal for enhancing safety communications in transportation tunnels, mining operations, ports, and industrial plants.
This solution transforms the JWAT306P into a vital node within a smart safety network, ensuring uninterrupted communication to protect personnel and optimize operations.
