Industrial Weatherproof Wall Speaker Phone JWAT306-K
The JWAT306-K is a durable analog wall speaker phone with a die-cast aluminum body, IP67 rating, noise-canceling microphone, waterproof keypad, loud 80dB(A) alert, easy wall mounting, and compliance with CE, FCC, RoHS, and ISO9001 standards for reliable use in harsh environments.
Heavy-Duty Analog Wall Speaker Phone
The JWAT306-K is a robust wall speaker phone engineered specifically for harsh environments and emergency situations. Encased in a high-strength die-cast aluminum alloy housing, it offers exceptional impact resistance and an IP67 protection rating against dust and water, guaranteeing reliable, continuous performance in both outdoor and demanding industrial settings.
Core Advantages
-
Rugged Construction: The die-cast alloy body provides superior mechanical strength to withstand severe physical abuse.
-
Clear Communication: Equipped with a heavy-duty handset, it features a noise-canceling microphone and a hearing aid-compatible receiver for pristine audio quality.
-
Fully Sealed Keypad: The unit includes a waterproof zinc alloy keypad outfitted with programmable function keys for rapid access to speed dial, redial, flash, hang-up, and mute functions.
-
High-Volume Alert: Engineered for high-noise areas, the audible ring tone exceeds 80dB(A) to ensure incoming calls are never missed.
-
Easy Installation & Maintenance: Designed for simple wall mounting, it supports custom color options and utilizes self-manufactured spare parts to streamline long-term maintenance.
-
Compliance & Connection: Operating as a standard analog device with secure RJ11 screw terminals, it is fully compliant with CE, FCC, RoHS, and ISO9001 quality and safety standards.
| Item | Technical data |
| Signal Voltage | 100-230VAC |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Amplified Output Power | 10～25W |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+70℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Cable Gland | 3-PG11 |
| Installation | Wall-mounted |
We ensure your industrial telephone arrives in perfect condition. Each unit is secured in custom-fit foam or molded pulp trays to prevent movement, then packed in durable double-walled corton for stacking strength and crush resistance. Clear labeling with product details and handling symbols enables smooth logistics. Our packaging is designed to protect the product from our facility to your site—intact and ready for installation.

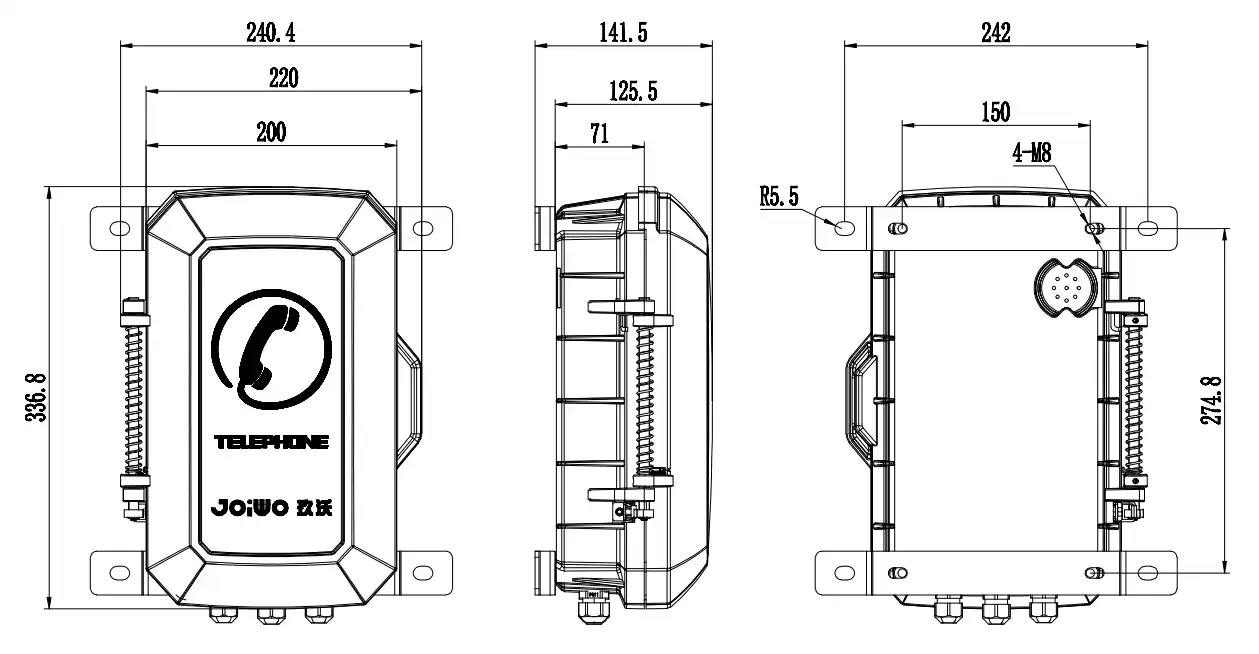

| Unit size | 339×246×126 (mm) |
| Carton size | 470*290*210 (mm) |
| Packaging materials | Pearl cotton, Carton |
| Net weight | 6.5 KG |
| Gross weight | 7 KG |
This robust weatherproof telephone is engineered for mission-critical communication in the world’s most demanding environments. It serves as a vital communication lifeline across essential infrastructure and heavy industries, including:

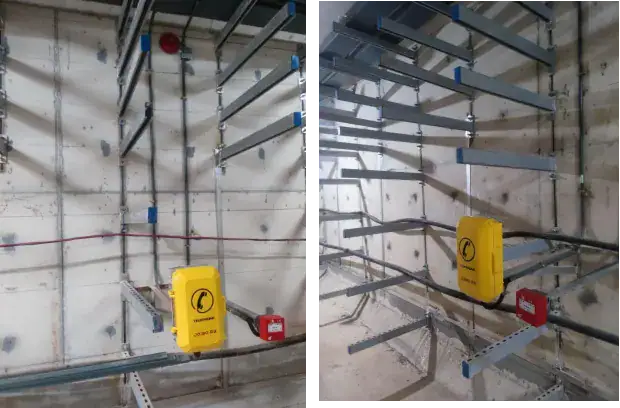

- Transportation Networks: Ensuring safety and operational continuity in tunnels, metro systems, railways, and highways, where reliable communication is non-negotiable during emergencies or daily operations.
- Industrial & Resource Sectors: Providing dependable voice contact in harsh settings such as mining operations and industrial plants, where dust, moisture, and physical impacts are common challenges.
- Marine & Coastal Applications: Withstanding corrosive saltwater environments in ports, offshore platforms, and coastal facilities, guaranteeing clear communication regardless of weather.
This rugged telephone provides a robust, dedicated voice communication solution for environments where standard systems fail. Designed as a reliable node within larger safety and operational networks, it ensures always-available contact in tunnels, industrial plants, marine facilities, and transportation hubs.
Its analogue design ensures simple, direct integration into existing systems, offering a failsafe communication layer. Built to endure extreme conditions with full compliance, it delivers long-term reliability, reduces total cost of ownership, and strengthens the overall resilience of your critical infrastructure.
