Industrial waterproof telephone with keypad and handset, designed for mining environments, housed in a durable yellow protective case.

Waterproof industrial telephone designed for mining environments, featuring rugged construction and corrosion resistance for reliable communication in harsh conditions.

IP Industrial Waterproof Telephone for Mining Project JWAT301P-K

The Weatherproof Telephone is engineered for demanding outdoor industrial environments, providing reliable emergency communication under the harshest conditions. Its IP66-rated sealed design ensures complete protection against water, dust, and moisture, making it ideal for metro and high-speed rail applications. Crafted from a sturdy aluminum alloy, the device delivers robust durability and explosion-proof safety. Available in both VoIP and analog versions, it supports OEM customization to meet specific project requirements.

Widely used in：

MARINE ENVIRONMENT

HIGHWAY SHOULDER

SUBWAY STATION

TUNNEL

UNDERGROUND FACILITY

RAILWAY PLATFORM

MINING SITE

OTHERS

KEY FEATURES

Aluminum alloy die-cast shell ensures high mechanical strength and excellent impact resistance.

Supports SIP 2.0 (RFC3261) with 2 lines.

Compatible with G.711, G.722, and G.729 audio codecs.

Full IP protocol support: TFTP, RTP, RTCP, DHCP, SIP, IPv4, UDP.

Echo cancellation compliant with G.167/G.168 standards.

Supports full-duplex communication.

WAN/LAN bridge mode supported; WAN port can obtain IP via DHCP.

xDSL PPPoE support included.

Heavy-duty handset with noise-canceling microphone and hearing-aid-compatible receiver.

Weatherproof design rated IP68; waterproof zinc alloy keypad.

Wall-mounted for easy installation.

Ringing sound level exceeds 80dB(A).

Optional color selections available.

Self-produced spare parts for maintenance convenience.

Compliant with CE, FCC, RoHS, and ISO9001 standards.

Item	Technical data
Power Supply	PoE,12V DC or 220VAC
Voltage	100-230VAC
Standby Work Current	≤0.2A
Frequency Response	250～3000 Hz
Ringer Volume	≥80dB(A)
Corrosion Grade	WF1
Ambient Temperature	-40～+60℃
Atmospheric Pressure	80～110KPa
Relative Humidity	≤95%
Lead Hole	3-PG11
Installation	Wall-mounted

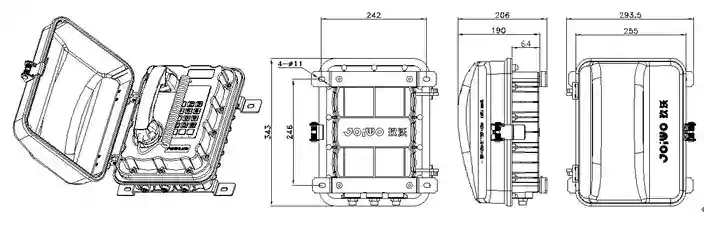

DIMENSIONS

JWAT301P-K (2)

PACKAGE

Safe transport is our top priority. Industrial telephones are cushioned in dense foam or molded pulp trays to prevent damage during shipment. Sturdy double-walled cartons provide maximum stacking strength, and all packaging is clearly marked with product and handling information, ensuring your equipment reaches its destination securely.

Unit size	343×294×206 (mm)
Carton size	440320270 (mm)
Packaging materials	Pearl cotton, Carton
Net weight	7 KG
Gross weight	8 KG

Waterproof industrial telephone for mining applications, designed for harsh environments, with durable construction and reliable communication features.

FREQUENTLY ASKED QUESTIONS

1. What is the waterproof rating of your telephone?

Our waterproof telephones are typically rated IP65-IP67, meaning they are fully protected against water spray, heavy rain, and temporary immersion. The specific rating varies by model.

2. Can the waterproof telephone be used in harsh outdoor environments?

Yes. The device is engineered with corrosion-resistant materials, sealed housings, and robust keypads, making it suitable for outdoor, industrial, marine, and high-humidity environments.

3. Does the telephone require special installation for waterproof performance?

No special tools are needed, but proper sealing of the cable entry and mounting surface is required. We provide installation diagrams and accessories to ensure optimal waterproof protection.

4. What types of networks are supported (analog/IP)?

We offer both analog waterproof telephones and SIP/VoIP waterproof telephones, allowing compatibility with existing PBX systems, IP networks, or industrial communication setups.

5. Is customization available (color, keypad layout, logo, features)?

Absolutely. We provide OEM/ODM support, including customized colors, keypads, branding, and additional functions such as auto-dialing, hotline, speaker, beacon light, and more.

6. How is the audio performance in noisy environments?

The telephones use noise-reduction microphones, high-power receivers, and optional amplified speakers, ensuring clear communication even in environments like factories, tunnels, and marine decks.

Engineered for reliable operation in extreme conditions, this weatherproof telephone is ideal for demanding sectors. It is widely deployed in tunnels, mining operations, marine environments, and underground facilities. Its rugged design also suits public infrastructure, including metro stations, railway platforms, and highways, as well as heavy industrial sites like steel mills, chemical plants, and power stations. Additionally, it performs reliably in general outdoor settings such as hotels, parking lots, and other open areas.

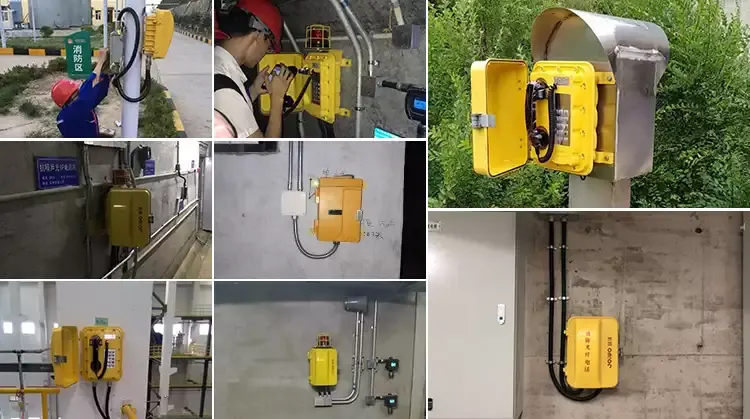

JWAT301P-K (3)

Joiwo is not just a manufacturer; we serve as a professional integrator of complete telecom solutions. Beyond supplying terminal devices, we design and implement fully integrated, end-to-end communication systems tailored to each client’s operational needs. Our expertise covers a broad spectrum of technologies, including IP PBX platforms, IP servers, telephone self-diagnostic systems, PAGA solutions, unified network management systems, Emergency Voice Communication Systems, and bespoke OEM functionalities to support project-specific requirements.

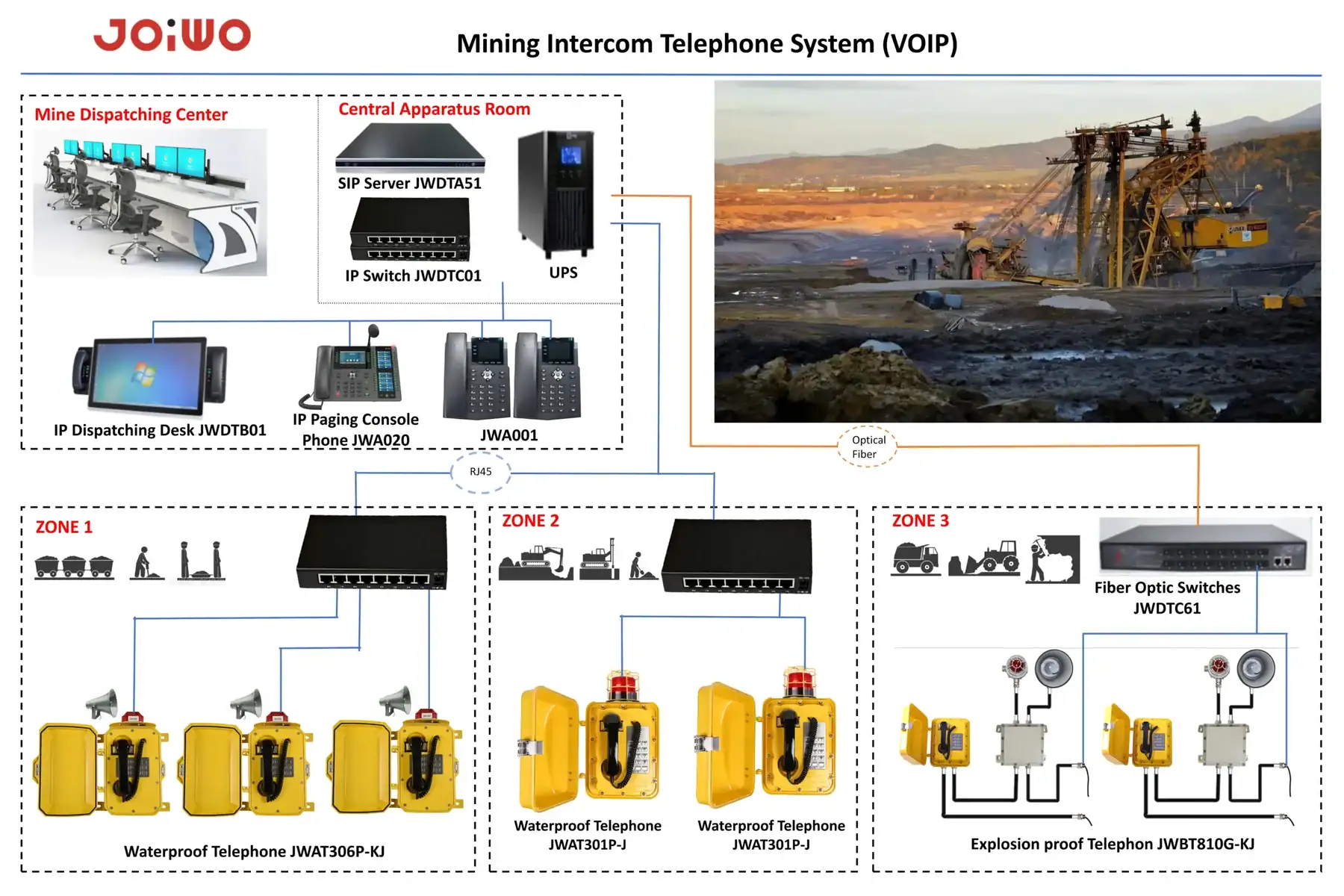

JWAT301P-K (8)
