IP SIP VoIP Fingerprint Gate Intercom for Commercial Video Door Entry System JWAT422P

This IP-based video intercom system features a 7-inch HD touchscreen, HD camera with two-way communication, and noise-reducing audio. It supports multi-method authentication, remote door release, attendance tracking, multiple alarm triggers, and centralized platform management for secure access control and facility management.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

This ip based video intercom system is designed for secure access control and facility management. Built with a durable aluminum panel and powered by domestically sourced chips, it serves as a highly reliable commercial video door entry system.

Hardware & Audiovisual Specifications

  • Display: 7-inch HD touchscreen (1280×800 resolution).
  • Video: Built-in HD camera with H.264 encoding for two-way video communication, functioning as an ip video door station.
  • Audio: Built-in 3W speaker, microphone, and a digital audio processor for noise reduction and hands-free calling.
  • Design: Compact, stylish, and robust enough to be used as an outdoor ip intercom.

Access Control & Attendance

  • Authentication: As a fingerprint video intercom, it supports face recognition, fingerprint scanning, password entry, and multi-method combinations.
  • Door Release: Operates as a complete intercom system with camera and door release. Administrators can verify visitors via video and use the remote intercom unlock door feature.
  • Permission Control: Entry permissions can be scheduled based on personnel information and effective times.
  • Attendance Tracking: Supports employee attendance logging via face, fingerprint, or password.

Security & Platform Management

  • Alarms: This security video intercom supports multiple alarm triggers, including tampering, door open timeouts, blacklist matches, and duress situations. Alerts are uploaded to the platform in real-time.
  • Centralized Management: Functioning as an ip based video door phone and sip door phone with camera, all devices are managed via a centralized remote platform.
  • Data Synchronization: The platform handles device registration, personnel permissions, and remote control, making it a highly secure ip door phone with camera and security video door phone solution.
Power Supply DC 24V/1A or PoE (IEEE802.3af)
Standby Power Consumption ≤ 4W
Overall Power Consumption ≤ 6W
Network Protocol SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Sampling Rate 8kHZ-44.1kHz, 16bit
Transmission Bit Rate 8Kbps～320Kbps
Video Transmission Bit Rate 512Kbps～1Mbps
Video Coding GVA
Signal-To-Noise (S/N) Ratio 84dB
Total Harmonic Distortion (THD) ≤ 1%
PACKAGE

The product is securely housed in a custom-molded foam interior within a durable corrugated carton, guaranteeing protection against shocks and vibrations during transit. Each carton is clearly labeled for easy identification and logistics handling.

Fingerprint recognition intercom device for IP SIP VoIP systems, featuring video intercom functionality and high security. Suitable for access control and communication.
FREQUENTLY ASKED QUESTIONS
Does the device require an internet connection and platform to access all features?
Basic access control functions (such as local fingerprint, PIN, and card unlocking) and video intercom with visitors can operate independently within a local network. However, advanced features such as remote video calls, mobile app unlocking, centralized user permission management, real-time alarm reporting, and attendance data synchronization require the device to be connected to the internet and registered with the management platform.
How durable and accurate is the fingerprint recognition module? How many fingerprints can be stored?
The device is equipped with live fingerprint detection technology and a highly wear-resistant sensor, effectively preventing spoofing and maintaining a high recognition rate under various environmental conditions. A single device typically supports storage for thousands of fingerprints (exact capacity depends on the model), which is sufficient for managing users in large residential complexes or corporate settings or factory setting.

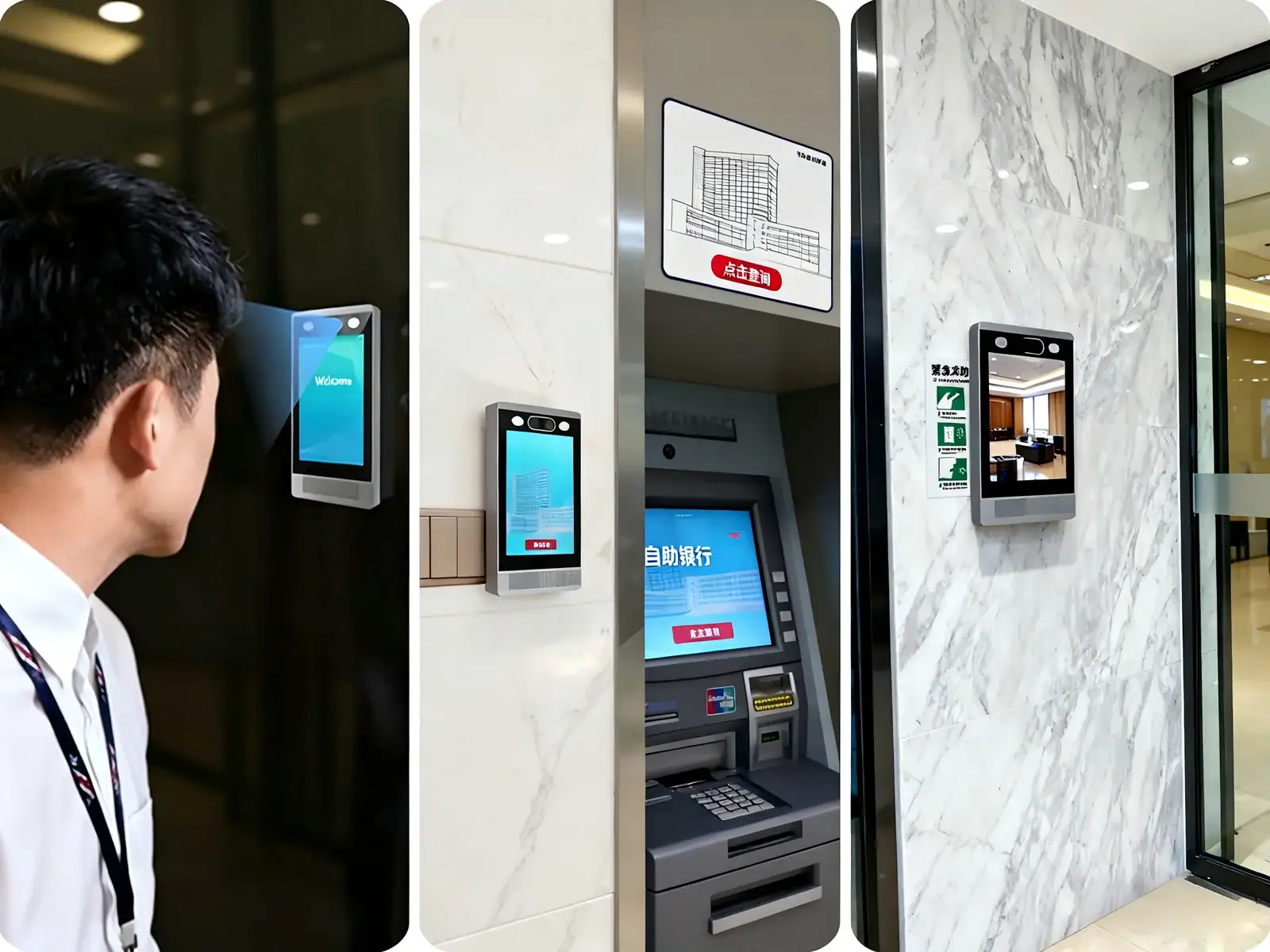

This smart access terminal is a key component of modern gate intercom systems with camera, ideal for office buildings, residential complexes, campuses, and healthcare facilities. It offers secure multi-method authentication including face, fingerprint, PIN, and card. Featuring an integrated HD video intercom and remote management, it enhances security and convenience. The centralized control platform simplifies visitor management, access control, and time attendance, delivering efficient and reliable security from one robust device.

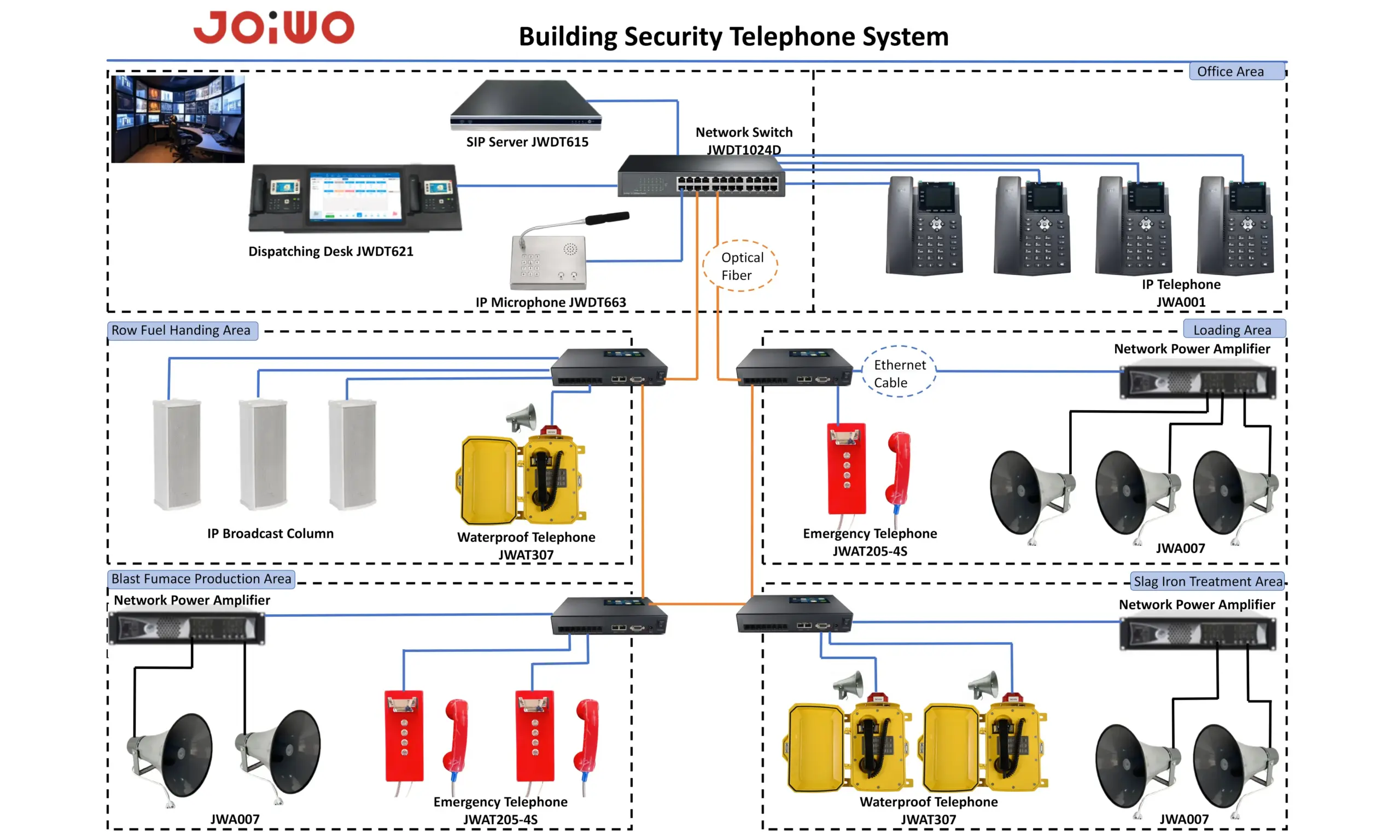

JWAT205-4S 5 JWAT422P-5

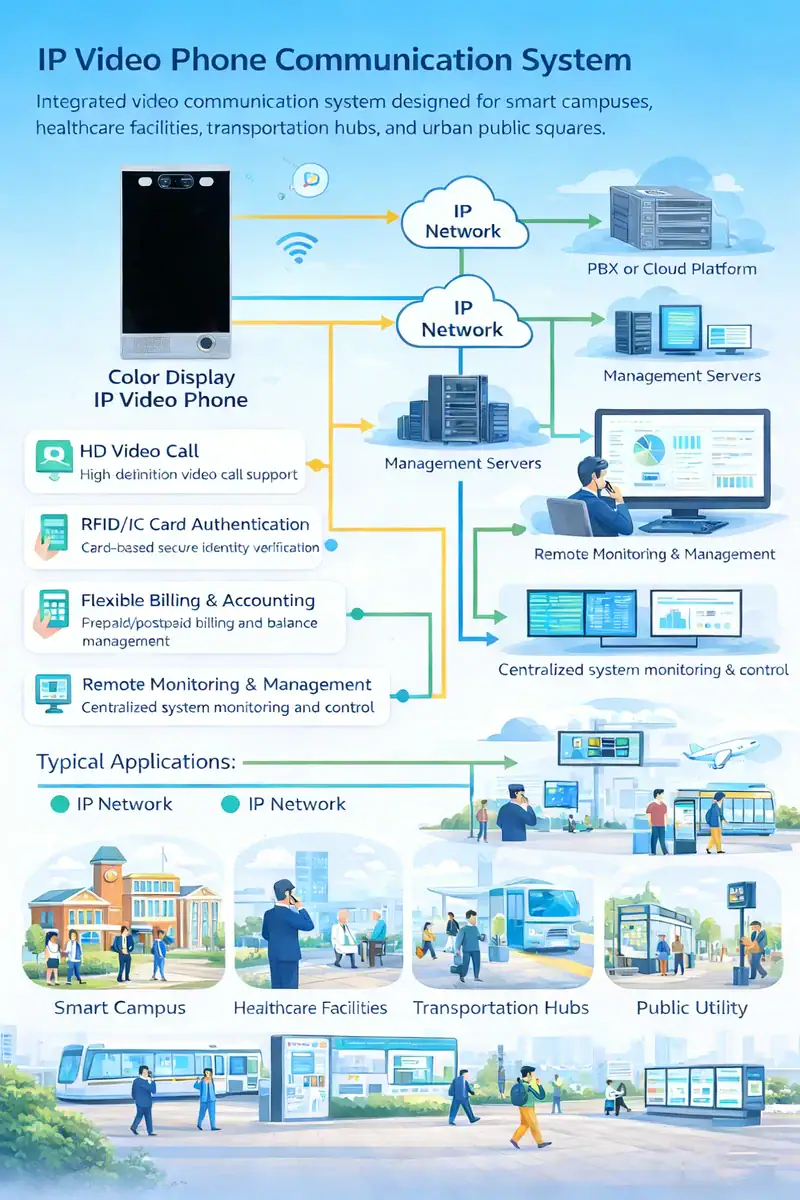

This device serves as the intelligent front-end of a comprehensive access ecosystem. It seamlessly integrates with a centralized management platform, forming a complete scalable, cloud-ready system solution. The platform enables real-time remote monitoring, unified permission management across all endpoints, and instant synchronization of personnel data and schedules. This integrated system provides administrators with total oversight—from video verification and access control to attendance reporting and alarm management—all through a single, efficient interface, significantly enhancing operational security and management efficiency.
