IP SIP VoIP Fingerprint & Video Gate Access Intercom JWAT422

Advanced Gate Access Intercom features a 7-inch HD touchscreen, high-definition video/audio with noise reduction, and multiple authentication methods (face, fingerprint, password). It offers real-time alarms, attendance tracking, and remote management via a centralized platform, all in a durable aluminum design with secure, domestic core chips.

Widely used in：

MARINE ENVIRONMENT

HIGHWAY SHOULDER

SUBWAY STATION

TUNNEL

UNDERGROUND FACILITY

RAILWAY PLATFORM

MINING SITE

OTHERS

KEY FEATURES

Advanced Gate Access Intercom

This high-performance gate access intercom combines a compact, stylish design with a robust, high-grade aluminum panel to seamlessly integrate into various environments while providing durable security. Powered by reliable, domestically sourced core chips, it delivers independent, secure, and efficient access control and communication.

Key Features

High-Definition Interface: Features a 7-inch HD touchscreen with a 1280×800 resolution for clear, intuitive user interaction and feedback.
Superior Audio & Video: Equipped with a built-in 3W speaker, microphone, and high-definition digital camera (H.264 encoding). It supports two-way video intercom, hands-free calling, broadcast reception, and live monitoring. A built-in digital audio processor enhances noise reduction and overall audio quality.
Comprehensive Authentication: Secure your premises with flexible door opening options, including face, fingerprint, and password authentication, or combinations of these methods. It also supports multi-user authentication, video verification, and remote unlocking for complex security scenarios.
Advanced Access & Attendance: Administrators can tightly control door opening permissions based on personnel profiles, effective times, and access schedules. It simultaneously functions as an attendance system using face, fingerprint, or password verification.
Integrated Alarm System: Maximizes security with multiple built-in alarms, including tamper, door open timeout, blacklist, and duress alarms, pushing real-time alerts directly to the management platform.
Centralized Platform Management: Enables streamlined remote management. Devices require platform authorization to register and sync personnel permissions, allowing administrators to remotely control and monitor the intercom from a centralized dashboard.

Power Supply	DC 24V/1A or PoE (IEEE802.3af)
Standby Power Consumption	≤ 4W
Overall Power Consumption	≤ 6W
Network Protocol	SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Sampling Rate	8kHZ-44.1kHz, 16bit
Transmission Bit Rate	8Kbps～320Kbps
Video Transmission Bit Rate	512Kbps～1Mbps
Video Coding	GVA
Signal-To-Noise (S/N) Ratio	84dB
Total Harmonic Distortion (THD)	≤ 1%

PACKAGE

The product is securely housed in a custom-molded foam interior within a durable corrugated carton, guaranteeing protection against shocks and vibrations during transit. Each carton is clearly labeled for easy identification and logistics handling.

FREQUENTLY ASKED QUESTIONS

Does the device require an internet connection and platform to access all features?

Basic access control functions (such as local fingerprint, PIN, and card unlocking) and video intercom with visitors can operate independently within a local network. However, advanced features such as remote video calls, mobile app unlocking, centralized user permission management, real-time alarm reporting, and attendance data synchronization require the device to be connected to the internet and registered with the management platform.

How durable and accurate is the fingerprint recognition module? How many fingerprints can be stored?

The device is equipped with live fingerprint detection technology and a highly wear-resistant sensor, effectively preventing spoofing and maintaining a high recognition rate under various environmental conditions. A single device typically supports storage for thousands of fingerprints (exact capacity depends on the model), which is sufficient for managing users in large residential complexes or corporate settings or factory setting.

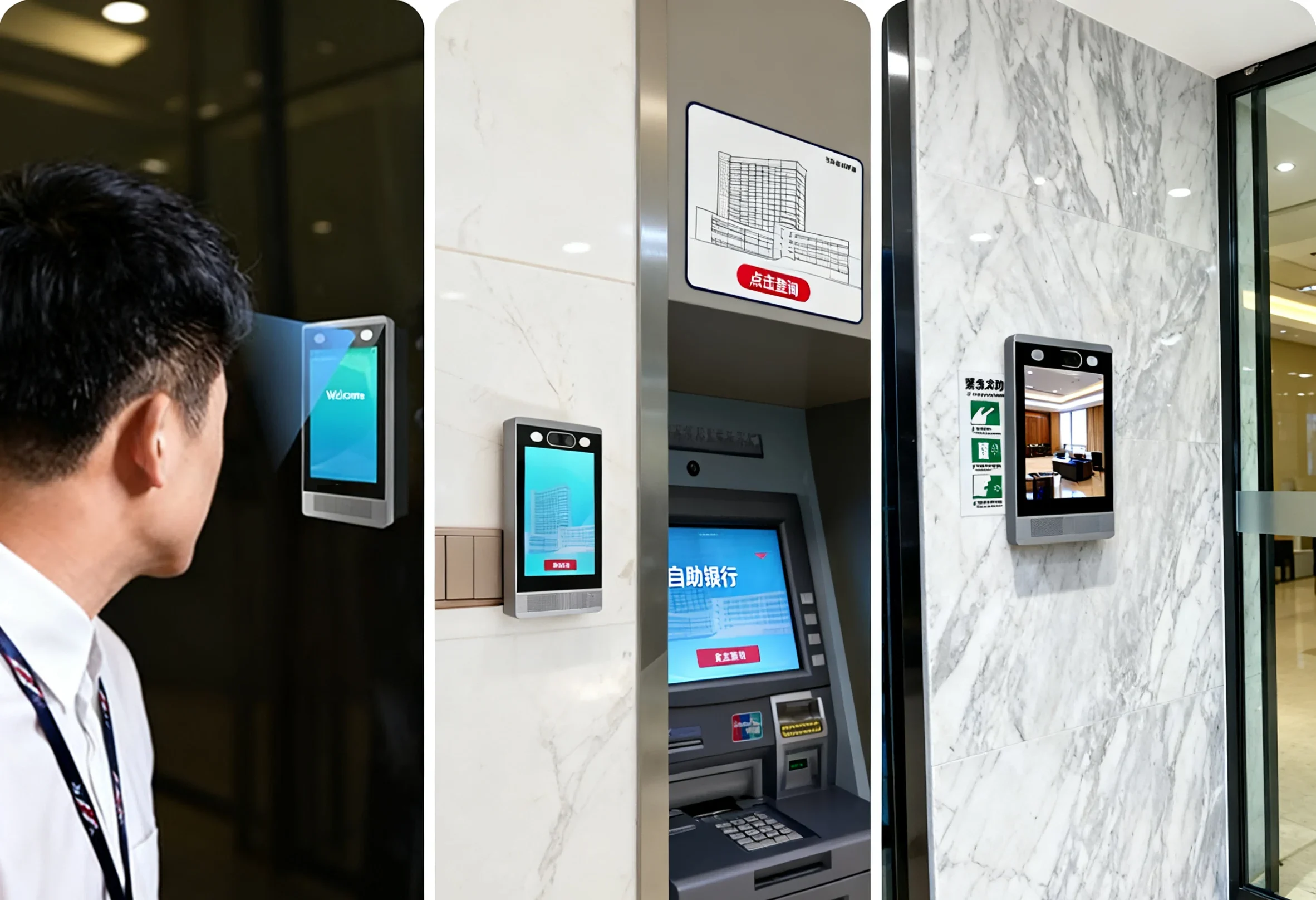

This smart gate access intercom serves as the core of modern security for various settings. It is ideally suited for office buildings, residential complexes, campuses, and healthcare facilities, providing secure, multi-method authentication (face, fingerprint, PIN, card) and remote management. The integrated HD video intercom and centralized control platform enhance both security and convenience, making visitor management, access control, and time attendance efficient and reliable from a single, robust device. JWAT422P 4

This gate access intercom serves as the intelligent front-end of a comprehensive access ecosystem. It seamlessly integrates with a centralized management platform, forming a complete scalable, cloud-ready system solution. The platform enables real-time remote monitoring, unified permission management across all endpoints, and instant synchronization of personnel data and schedules. This integrated system provides administrators with total oversight—from video verification and access control to attendance reporting and alarm management—all through a single, efficient interface, significantly enhancing operational security and management efficiency.
