Mini Size Stainless Steel Vandal Proof Phone JWAT145 for Inmate & Jail

The JWAT145 vandal proof phone features a brushed stainless steel housing, ensuring excellent mechanical strength, wear resistance, and corrosion protection. Its integrated main circuit board combines call circuitry and noise reduction into a compact unit.

Selected high-quality international components guarantee reliability. After rigorous temperature testing and careful production, the circuit receives protective treatment, enhancing environmental adaptability and durability for tough, vandal-prone settings.

Widely used in：

MARINE ENVIRONMENT

HIGHWAY SHOULDER

SUBWAY STATION

TUNNEL

UNDERGROUND FACILITY

RAILWAY PLATFORM

MINING SITE

OTHERS

KEY FEATURES

This analog vandal proof phone is powered directly by the phone line, requiring no external power source. It features a 304 stainless steel housing that offers high mechanical strength and excellent impact resistance. The vandal proof handset includes an internal steel lanyard and a reinforced grommet, enhancing the security of the handset cord.

The phone is equipped with a heavy chrome metal keypad bezel, metal buttons, and a reinforced hook-switch lever, all designed to withstand abuse and vandalism. It uses a magnetic hook switch with a reliable reed switch design. For improved voice clarity in noisy environments, an optional noise-canceling microphone is available.

Its wall-mounted design allows for easy and secure installation. The device offers weatherproof protection with an IP54 rating, making it suitable for indoor and semi-outdoor use. The connection interface consists of an RJ11 screw terminal pair cable.

Multiple color options can be provided upon request. All telephone spare parts are manufactured in-house, ensuring long-term availability and maintenance support. The phone is certified to meet CE, FCC, RoHS, and ISO 9001 standards.

Power Supply	Telephone Line Powered
Voltage	DC48V
Standby Work Current	≤1mA
Frequency Response	250～3000 Hz
Ringer Volume	＞80dB(A)
Corrosion Grade	WF2
Ambient Temperature	-40～+70℃
Atmospheric Pressure	80～110KPa
Relative Humidity	≤95%
Anti-vandalism Level	IK10
Installation	Wall-mounted

DIMENSIONS

JWAT145 (8)

PACKAGE

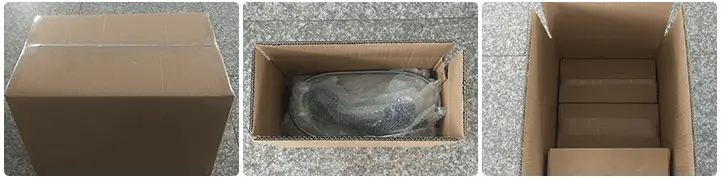

Each telephone is meticulously packaged to ensure safe delivery and optimal protection during transit. The unit is cushioned with high-performance shock-absorbing materials and enclosed in a durable, export-grade carton, offering superior resistance to impact, moisture, and vibration.

All accessories are clearly labeled and neatly organized, enabling quick and hassle-free installation upon receipt. For large-scale projects or special requirements, customized packaging solutions are available, including OEM branding, personalized labeling, and bulk pallet configurations.

Unit Size:	16511045MM
Unit Box Size:	330150150MM
Unit Net Weight:	1.5KG
Carton Gross Weight	1.9KG

FREQUENTLY ASKED QUESTIONS

1. What makes a prison or industrial telephone different from a regular telephone?

Industrial and prison telephones are designed for high-security and high-durability environments. They feature vandal-resistant materials, tamper-proof designs, reinforced cords, and are often weatherproof for indoor or outdoor use.

2. Are these telephones weatherproof and dustproof?

Yes. Most models meet IP54 or higher standards, offering protection against dust, water, and harsh environmental conditions. Some can even withstand extreme temperatures and corrosive environments.

3. Can the telephone be integrated into a larger communication system?

Absolutely. These phones can be integrated with emergency communication systems, IP PBX, PAGA systems, control rooms, and other unified network solutions. Custom OEM features can also be added.

4. Are the handsets vandal-resistant?

Yes. Handsets are typically reinforced with steel cords or internal lanyards and made of high-strength materials to prevent tampering or damage.

5. What installation options are available?

These telephones are generally wall-mounted for stability and security. Installation is simple, with all accessories clearly labeled. Some models support flush-mounting or surface-mounting for added protection.

6. What certifications do these telephones have?

Quality and compliance are ensured with certifications such as CE, FCC, RoHS, and ISO9001, depending on the manufacturer.

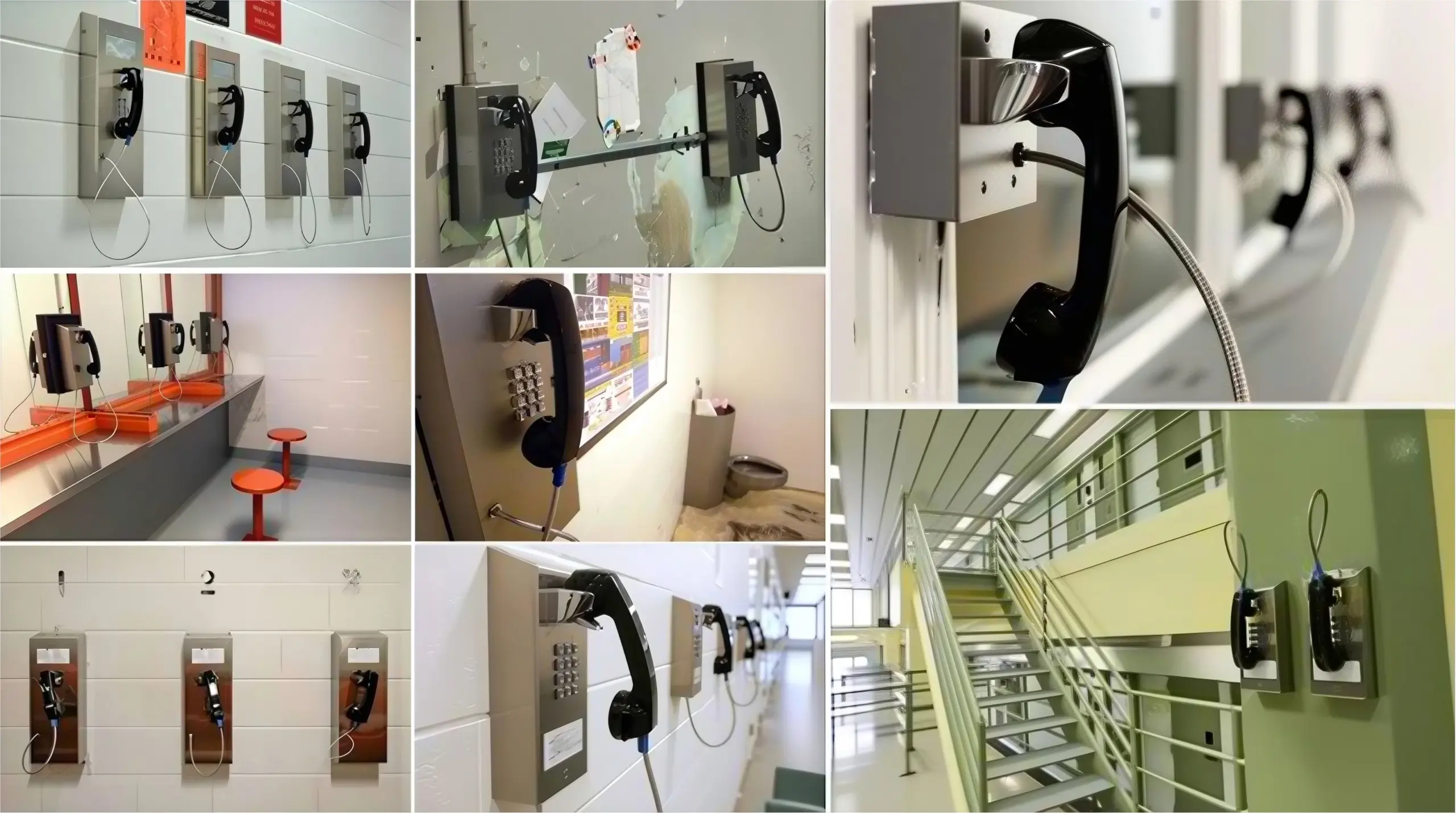

This stainless steel vandal proof phone is designed for reliable performance in demanding environments, including correctional facilities, hospitals, oil rigs, offshore platforms, dormitories, airports, control rooms, sally ports, schools, industrial plants, gates, PREA-compliant areas, and public waiting rooms.

Built with a rugged, vandal-resistant stainless steel housing, it offers long-term durability and stable operation in high-traffic and harsh industrial or security-sensitive settings. Its robust construction ensures dependable communication when reliability is critical, making it an ideal choice for environments where performance and resilience cannot be compromised.

JWAT145 (10)

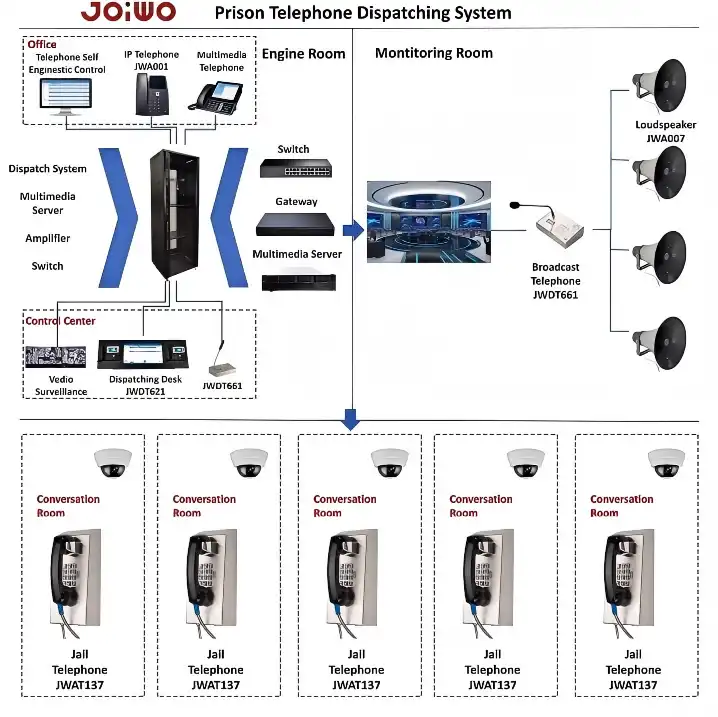

Joiwo provides a complete prison communication solution designed for high-security environments, enabling controlled inmate communication, accurate identity management, and centralized supervision.

Key Features

Anti-vandal prison telephones

Call restriction, monitoring, and recording

IC card and fingerprint-based inmate identification

Prepaid / postpaid call billing

POS-based inmate consumption management

Video visitation and secure messaging(Optional Extensions)

Managed access and unauthorized mobile prevention(Optional Extensions)

Advantages

Prison-grade security design

Centralized management platform

Flexible system expansion

Applicable to prisons, detention centers, and high-security correctional facilities.
