Network Switch PBX JWDTC01

The JWDTC01 is a Gigabit PoE switch engineered to meet robust Power over Ethernet requirements. Built with advanced high-speed Ethernet switching chips and an ultra-high backplane bandwidth, it delivers exceptional data processing speeds and ensures smooth, stable transmission.

It features 24 Fast Ethernet (10/100M) RJ45 ports and two Gigabit RJ45 uplink ports. All 24 ports support the IEEE 802.3af/at PoE standards, delivering up to 30W per port with a total PoE budget of 300W. The switch automatically detects and identifies compliant powered devices (PDs) and provides prioritized power supply through the Ethernet cable.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

Network & Port Configuration

  • Provides 24×Fast Ethernet (10/100M) RJ45 ports and 2×Gigabit RJ45 uplink ports for flexible network deployment in various scenarios.
  • All ports support non-blocking, wire-speed forwarding to ensure smooth, high-performance data transmission.
  • Supports IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control for stable network operation.

PoE Power Delivery

  • All 24 Fast Ethernet ports support IEEE 802.3af/at PoE standards.
  • Delivers up to 30W per port, with a total PoE budget of 250W for the entire device.
  • Features a PoE priority mechanism to ensure continuous power to critical connected devices when system power is limited.

Ease of Use & Management

  • Truly plug-and-play, requiring no configuration for immediate use.
  • Equipped with a mode switch: one-click activation enables 10M/250m long-distance transmission on ports 17-24 for extended reach.
  • Intuitive LED indicators (Power, Link, PoE) provide clear status visibility at a glance.

Design & Installation

  • Energy-efficient, fanless design ensures silent operation and enhanced reliability.
  • Durable metal casing supports effective heat dissipation and long-term stability.
  • Supports both desktop placement and standard 1U rack-mount installation (19-inch compatible).
Power supply standard Comply with IEEE802.3af/at international standards
Forwarding mode Store and forward (full line speed)
Backplane bandwidth 14.8Gbps (non-blocking)
Packet forwarding rate@64byte 6.55Mpps
MAC address table 16K
Packet forwarding cache 4M
Maximum single port/average power 30W/15.4W
Total power/input voltage 300W （AC100-240V）
Power consumption of the whole machine Standby power consumption: <20W; Full load power consumption: <300W
LED indicator Power indicator: PWR (green); Network indicator: Link (yellow); PoE indicator: PoE (green)
Supporting power supply Built-in switching power supply, AC: 100~240V 50-60Hz 4.1A
Operating temperature/humidity -20～+55°C; 5%～90% RH without condensation
Storage temperature/humidity -40～+75°C; 5%～95% RH without condensation
Dimensions (W × D × H) 330*204*44mm
Net  Weight/Gross Weight 2.3kg / 3kg
Installation way Desktop, wall-mounted, rack-mounted
Lightning protection Port lightning protection: 4KV 8/20us
PACKAGE

We are committed to ensuring the safe arrival of your products. Each unit is placed in precision-cut, high-density foam or custom-molded cushioning, then securely packed in a heavy-duty corrugated box. Our packaging solutions undergo rigorous testing to exceed industry shipping standards, offering dependable protection against impact, vibration, and handling stresses throughout transit.

FREQUENTLY ASKED QUESTIONS
1. What is a PoE switch and what are its advantages?
A PoE (Power over Ethernet) switch is a network switch that can transmit both data and electrical power to connected devices through a standard Ethernet cable. Its main benefits are simplified installation (no need for separate power outlets near devices like cameras or wireless access points), reduced costs, greater deployment flexibility, and a cleaner, more manageable system.
2. What PoE standards does this switch support?
This switch fully supports the IEEE 802.3af (PoE) and 802.3at (PoE+) standards. It automatically detects and powers compatible IEEE-compliant devices (PDs).
3. How do I know if my device is PoE-compatible?
Your device (e.g., a camera or AP) should specify "IEEE 802.3af/at PoE compliant" or "PoE powered" in its technical specifications. If it complies with these standards, the switch will automatically detect and supply power once connected.
4. Will connecting a non-PoE device (like a regular computer) damage it?
No, it will not. The switch features intelligent detection and only delivers power to IEEE-compliant PoE devices. For non-PoE equipment like computers or standard switches, it functions as a regular data port and is completely safe.

Designed for simplified network deployment, the JWDTC01-24 PoE switch delivers both data and power over a single Ethernet cable, offering a clean and flexible foundation for modern networks.

Key Applications:

Surveillance Systems: Powers multiple IP cameras effortlessly, eliminating separate power cabling for easier installation.

Wireless Coverage: Centrally supplies power to wireless access points (APs) for rapid and stable Wi-Fi deployment.

Smart Office: Connects and powers IP phones, video conferencing units, and other devices with a single cable for a tidy, efficient workspace.

Digital Signage: Streamlines power and connectivity for displays and interactive kiosks, enabling flexible retail and lobby layouts.

At Joiwo, we specialize in integrated telecom solutions, offering more than just hardware. We provide complete end-to-end communication systems designed around your operational needs. Our capabilities span IP PBX, IP servers, self-diagnostic telephony, PAGA, unified network management, EVCS, and tailored OEM features for specialized projects.

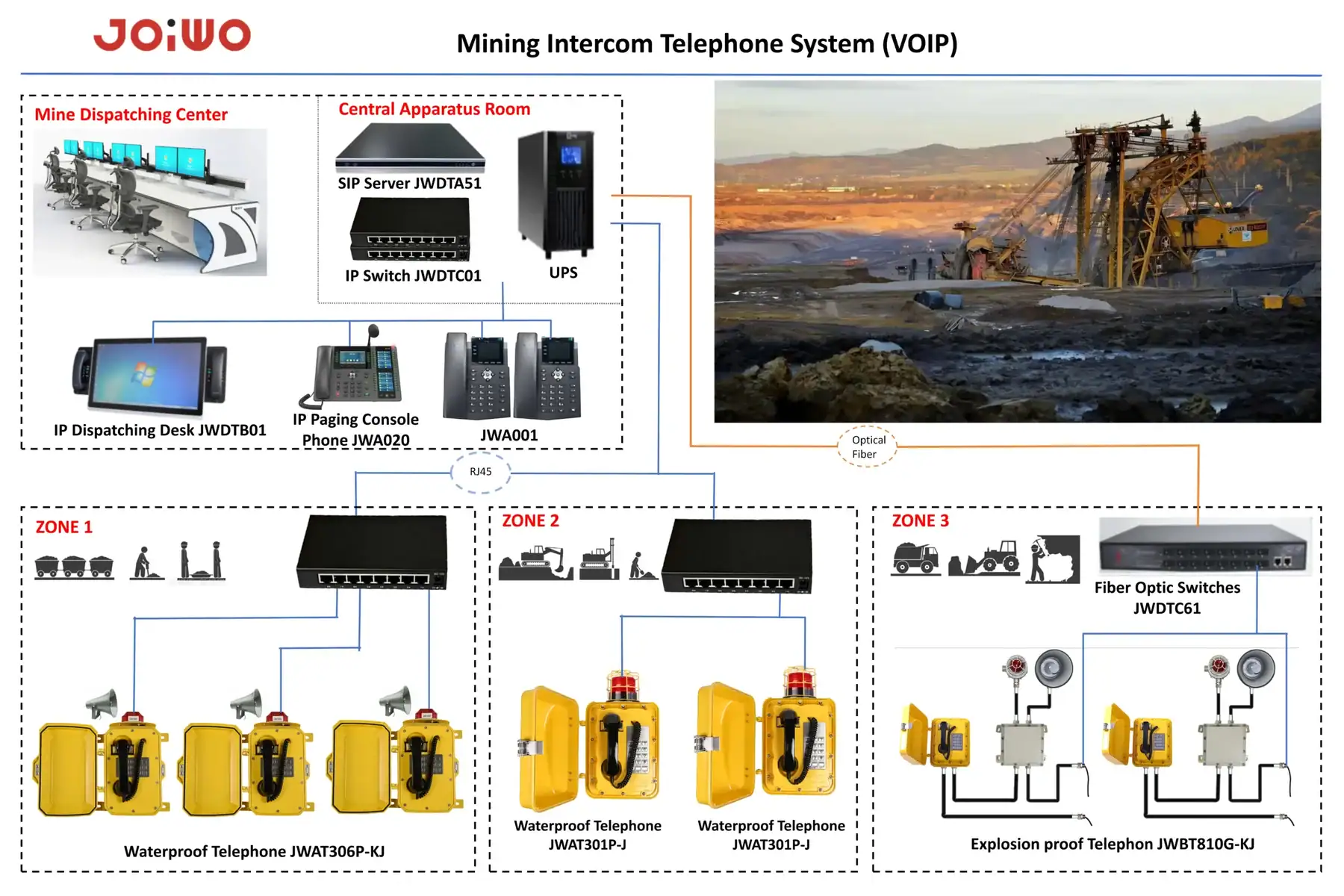

JWDTC01 (2)
