Mining Outdoor Industrial Telephone JWAT304-K
The JWAT304 plastic mining outdoor industrial telephone is available in both IP and analog versions, featuring dual communication systems. With a waterproof rating of IP65–IP66, it is an ideal choice for industrial manufacturing, tunnel corridors, defense communications, deep-sea operations, and other industrial or underground applications. This model offers a cost-effective solution for customers and project contractors with limited budgets. Additionally, this weatherproof telephone can also be installed beside swimming pools in residential settings.
Rugged Communication for Extreme Environments
Built specifically to withstand the rigors of heavy industry, this mining outdoor industrial telephone delivers dependable communication when and where you need it most. Its durable, engineering-grade plastic housing provides high mechanical strength and excellent impact resistance to endure the physical demands of mining and outdoor environments.
Key Features
- Reliable Analogue Operation: Functions as a standard analogue telephone, supporting both pulse and tone dialing methods.
- Superior Audio Quality: Features a heavy-duty handset equipped with a hearing-aid-compatible receiver and a noise-canceling microphone to ensure clear conversations in loud surroundings.
- Weather and Environment Protection: Achieves an IP65 weatherproof rating and includes a waterproof plastic keypad, guaranteeing reliable long-term performance in harsh outdoor or industrial settings.
- High-Visibility Alerts: Designed for noisy industrial environments, the loud ringer output exceeds 85 dB(A) to ensure incoming calls are clearly heard.
- Practical Installation & Maintenance: Supports a simple, wall-mounted installation process utilizing secure RJ11 screw-terminal connections. It operates entirely on line power, eliminating the need for an external power supply.
- Customization and Support: Available in optional colors to meet specific application needs, and supported by in-house manufactured spare parts for fast, reliable maintenance.
- Certified Quality: Fully compliant with CE, FCC, RoHS, and ISO9001 standards, ensuring maximum safety and operational reliability.
| Power Supply | Telephone Line Powered |
| Voltage | 24–65 VDC |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≥85dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+60℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Cable Gland | 1 -PG11 |
| Installation | Wall-mounted |
Each unit is securely packed to ensure safe transportation and handling. The product is enclosed in a protective inner foam cradle to prevent impact or vibration damage, then placed in a durable corrugated carton suitable for international shipping. All accessories, installation screws, and user manuals are neatly organized inside the box. Customized packaging, labeling, and palletizing options are available upon request to meet project or distributor requirements.
| Unit size | 322×260×142 (mm) |
| Carton size | 470*290*210 (mm) |
| Packaging materials | Pearl cotton, Carton |
| Net weight | 2.5 KG |
| Gross weight | 3 KG |

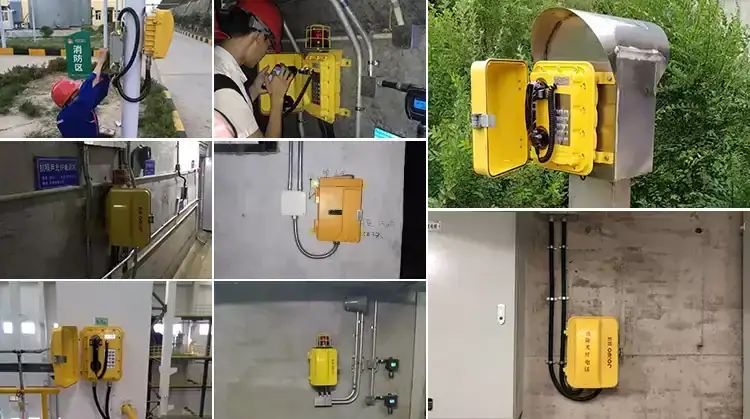

Built for reliable performance in harsh environments, this weatherproof telephone is widely used in tunnels, mining sites, marine areas, and underground facilities. It also serves well in public locations like metro stations, railway platforms, and highway roadsides, as well as industrial sites such as steel mills, chemical plants, and power plants. Its durability further makes it suitable for general outdoor settings, including hotels and parking areas.
Joiwo is not just a manufacturer; we are a professional integrator of comprehensive telecommunications solutions.

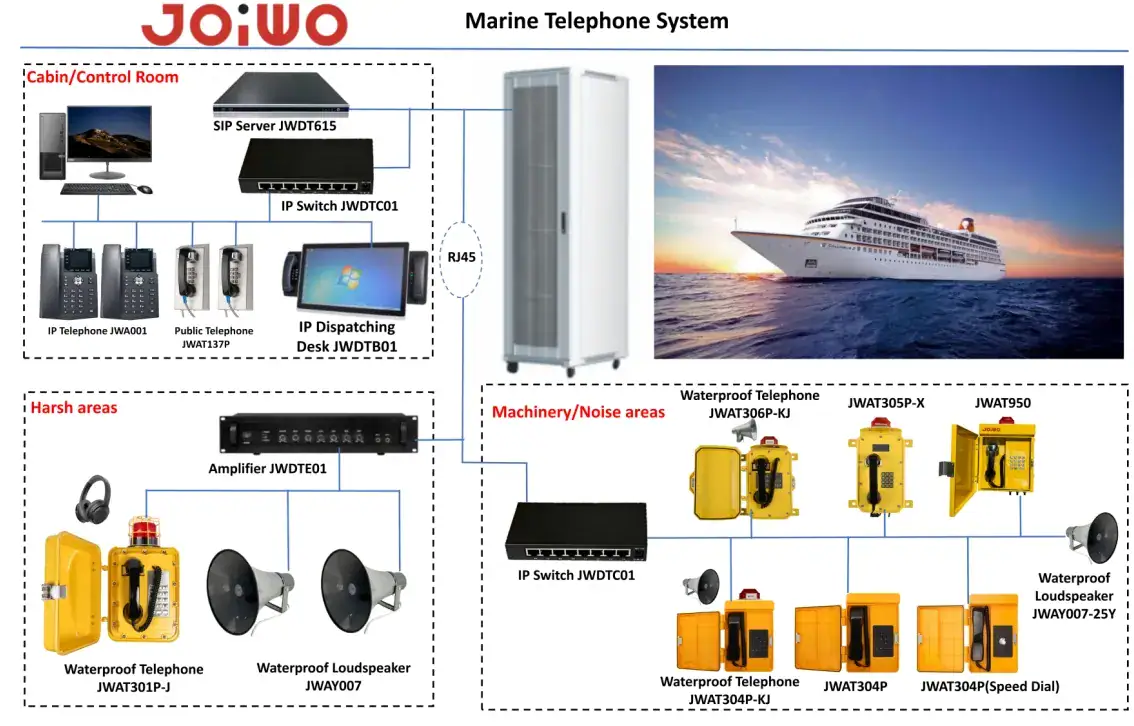

In addition to supplying terminal equipment, we design and deliver fully integrated, end-to-end communication systems customized to meet each customer’s specific operational requirements.
Our expertise covers a broad suite of technologies, including IP PBX platforms, IP servers, telephone self-diagnostic systems, PAGA solutions, unified network management systems, Emergency Voice Communication Systems, and customized OEM functions designed for project-specific requirements.
