IP66 & IP67 Engineering Plastic Telephone JWAT304P-K
This durable engineering plastic telephone offers analogue, SIP/VoIP, and GSM/3G versions, with a noise-canceling microphone and hearing aid compatible receiver. It features IP66-IP67 waterproofing, a waterproof keypad, and phone-line-powered operation. Compliant with CE, FCC, RoHS, and ISO9001 standards for reliable use in harsh environments.
This engineering plastic telephone combines rugged durability with dependable communication performance. Its injection-molded engineering-grade plastic housing delivers outstanding mechanical strength and impact resistance, making it a reliable choice for industrial, outdoor, and public-use applications.
Designed with flexibility in mind, this telephone is available in analogue, SIP/VoIP, and GSM/3G versions to suit different communication systems. It features a heavy-duty handset with a hearing aid compatible receiver and a noise-canceling microphone, ensuring clear conversations even in noisy surroundings.
With an IP66-IP67 protection rating, the unit offers excellent resistance to water, dust, and harsh weather conditions. A fully waterproof keypad, wall-mounted structure, and secure RJ11 screw terminal connection further enhance its practicality, while phone-line-powered operation removes the need for an external power supply.
For high-noise locations, the ringing volume exceeds 80dB(A) to help prevent missed calls. Multiple housing styles and color options are available, and self-manufactured spare parts support easy maintenance and long-term service life. The product also meets CE, FCC, RoHS, and ISO9001 standards for quality and compliance.
| Power Supply | 100-230VAC or POE |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≥110dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+60℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Cable Gland | 3-PG11 |
| Installation | Wall-mounted |
Each unit is carefully packaged to ensure safe handling and transportation. The product is secured in a custom protective foam insert to minimize impact and vibration during transit, and then enclosed in a strong corrugated carton designed for international shipping standards. All accessories, installation hardware, and user manuals are neatly arranged inside the package.
Customized packaging, labeling, and palletizing solutions are available upon request to accommodate specific project or distributor requirements.

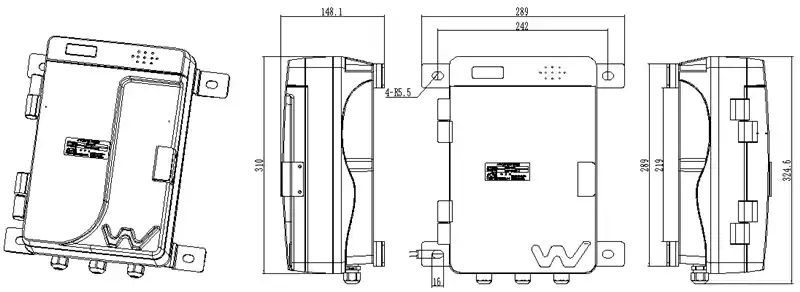

| Unit size | 322×260×142 (mm) |
| Carton size | 470*290*210 (mm) |
| Packaging materials | Pearl cotton, Carton |
| Net weight | 4 KG |
| Gross weight | 5 KG |

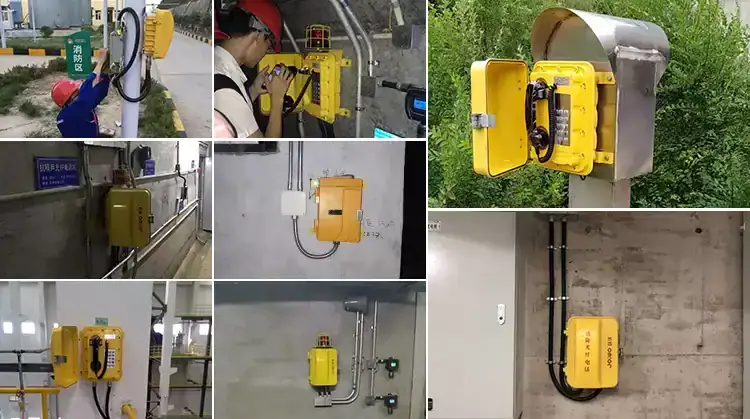

Built for reliable performance in harsh environments, this engineering plastic weatherproof telephone is widely used in tunnels, mining sites, marine areas, and underground facilities. It also serves well in public locations like metro stations, railway platforms, and highway roadsides, as well as industrial sites such as steel mills, chemical plants, and power plants. Its durability further makes it suitable for general outdoor settings, including hotels and parking areas.

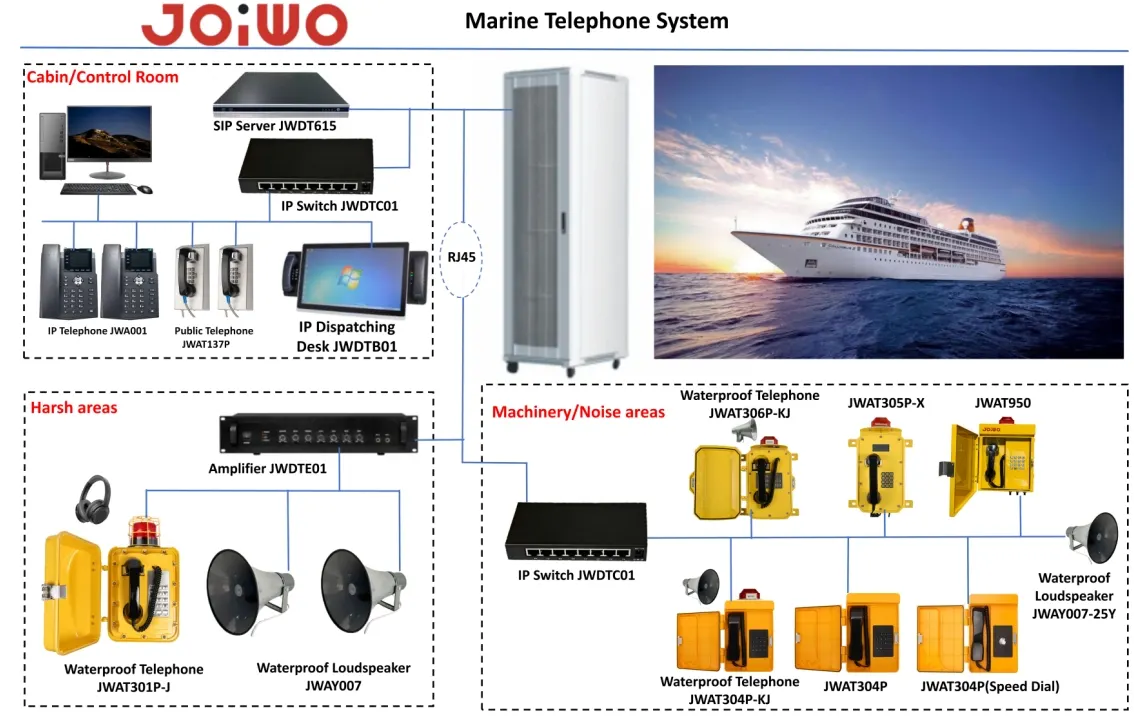

The JWAT series waterproof IP telephone system provides a reliable, stable, and cost-effective communication solution for harsh and mission-critical environments. Integrated with IP-based networks, the system supports centralized management, real-time voice communication, and loudspeaker broadcasting, ensuring clear and efficient communication even in noisy or remote locations.
Designed for industrial plants, tunnels, offshore platforms, mines, and underground facilities, the system can be easily connected to IP-PBX, VoIP servers, control rooms, and dispatch systems. Its high waterproof rating, rugged construction, and noise-canceling technology guarantee uninterrupted operation under extreme weather and environmental conditions.
The solution allows for flexible deployment, easy expansion, and low maintenance, making it an ideal choice for industrial safety communication, emergency response, and daily operations.
