Wall Mounted Intercom Phone for Marine Project JWAT304P

This durable, wall-mounted SIP/VoIP intercom supports 2 SIP lines, advanced audio codecs, and echo cancellation. IP65 rated with a waterproof keypad featuring programmable keys. Easy installation via RJ45 screw terminals. Available in multiple colors with spare parts. Certified CE, FCC, RoHS, and ISO9001 compliant.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

Versatile IP Intercom Solution for Marine Application

If you require a reliable and robust communication device, this feature-rich wall mounted intercom phone is engineered to deliver superior network connectivity and long-lasting durability. Housed in a tough engineering plastics injection molding shell, it provides high mechanical strength and strong impact resistance for demanding environments.

Key Features

  • Advanced Network Connectivity: This SIP/VoIP device supports 2 SIP lines and SIP 2.0 (RFC3261), utilizing a comprehensive suite of IP protocols (IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP). It features Bridge mode support for WAN/LAN, PPPoE for xDSL, and DHCP for automatic IP retrieval on the WAN port.

  • Superior Audio Performance: Enjoy clear, full-duplex communication powered by standard audio codecs (G.711, G.722, G.729) and advanced G.167/G.168 echo cancellation. The heavy-duty handset includes a hearing aid-compatible receiver and a noise-canceling microphone, backed by a powerful ringer that exceeds 80dB(A).

  • Durable & User-Friendly Interface: Built to IP65 weatherproof standards, the phone is equipped with a waterproof plastic keypad that includes four programmable keys, allowing you to easily set up functions like speed dialing and redial.

  • Simplified Installation: The unit is specifically designed to be wall-mounted for simple, secure installation, utilizing an RJ45 screw terminal pair cable for connection.

  • Customization and Maintenance: The phone is available in multiple color options to fit your specific facility requirements. Additionally, self-made telephone spare parts are readily available to support easy long-term maintenance.

  • Certified Quality: You can trust in its safety and reliability, as the intercom is fully CE, FCC, RoHS, and ISO9001 compliant.

Power Supply PoE or 12V DC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Cable Gland 3-PG11
Installation Wall-mounted
DIMENSIONS

JWAT304P (2)

PACKAGE

Each unit is carefully packaged for safe transport and handling. It is cushioned in a custom-fit foam insert to absorb shocks and resist vibration damage, then enclosed in a sturdy corrugated carton rated for international shipping. All accessories, mounting hardware, and user manuals are neatly included inside. Custom packaging, labeling, and palletizing options are available upon request to meet specific project or distributor needs.



Unit size 322×260×142 (mm)
Carton size 470*290*210 (mm)
Packaging materials Pearl cotton, Carton
Net weight 2.5 KG
Gross weight 3 KG
Plastic Marine Telephone for Marine Project JWAT304P, packaged securely in a cardboard box with protective foam insert, ready for shipping and installation in marine environments.
FREQUENTLY ASKED QUESTIONS
1.Q: What harsh environments can this mining telephone operate in?
A: The telephone is rated IP66—fully dust-tight and resistant to temporary immersion—making it suitable for high-humidity, high-dust, and extreme-temperature conditions in coal mines, metal/non-metal mines, and underground tunnels.
2.Q: Does it feature noise cancellation for clear communication in loud areas?
A: Yes. It includes a noise-cancelling microphone and a hearing aid-compatible (HAC) receiver to ensure clear voice transmission even in high-noise mining environments.
3.Q: Are different housing colors available?
A: Yes. Multiple color options are offered to support visual identification or site-specific safety coding.
4.Q: Does the phone comply with international safety standards?
A: Yes. It is certified to CE, FCC, RoHS, and ISO9001 standards, ensuring global compliance for safety, environmental, and quality requirements.

Designed specifically for demanding mining environments, this rugged wall mounted intercom phone is ideal for reliable voice communication in underground coal mines, metal and non-metal mines, tunneling projects, shaft stations, and surface industrial areas. Its robust IP66-rated construction, noise-cancelling audio, and heavy-duty keypad ensure dependable operation in high-dust, high-humidity, and high-noise conditions—making it a trusted solution for daily operations, safety coordination, and emergency response in mining facilities worldwide.

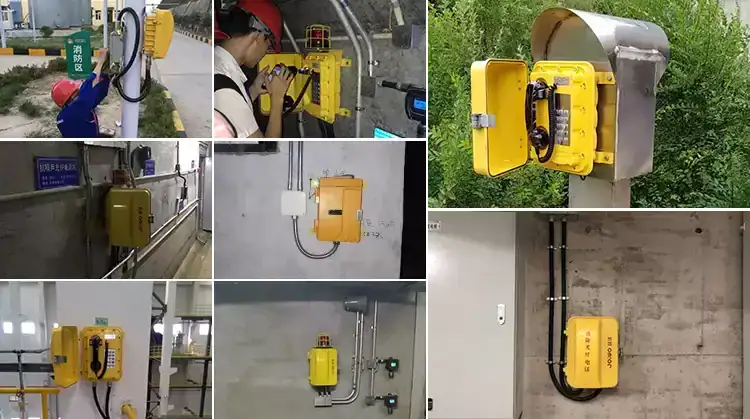

JWAT304P (7)

This wall mounted intercom phone integrates seamlessly into existing mine communication networks (POTS or PBX systems) as a rugged endpoint device. Designed for direct wall mounting in underground and surface hazardous areas, it provides clear, hands-free capable voice communication with minimal infrastructure—ideal for emergency call stations, refuge chambers, conveyor zones, and remote work sites.

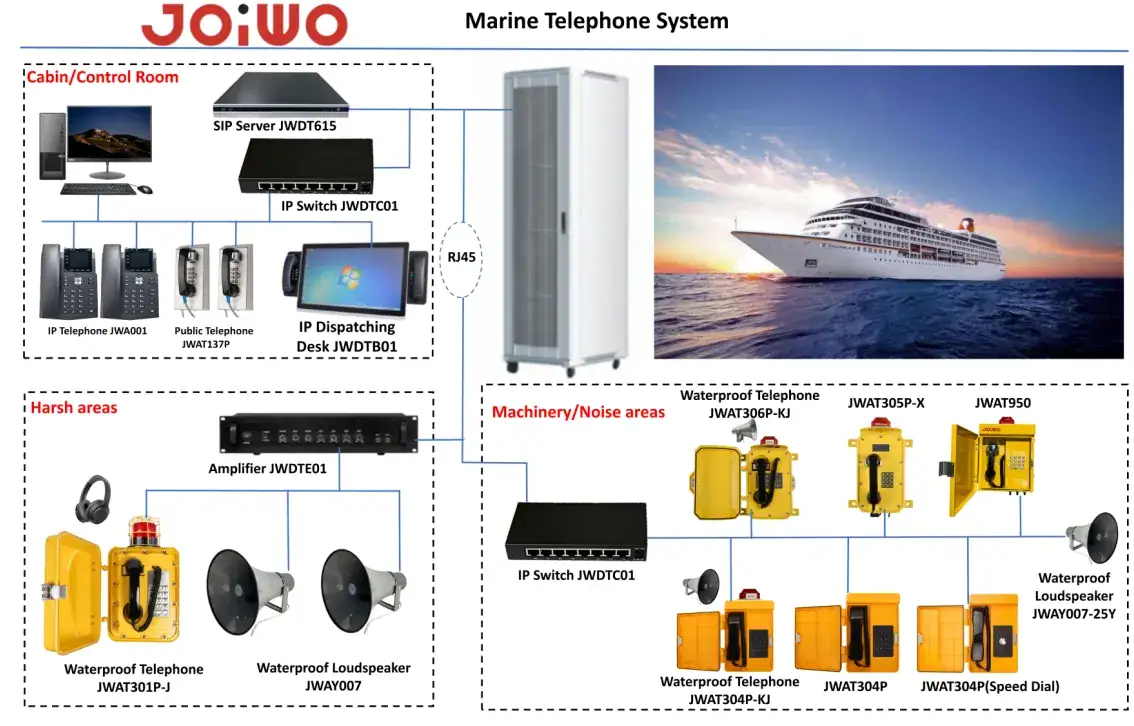

JWAT304P (8)
