Professional Power Amplifier JWDTE01
The JWDTE01 is a high-voltage, constant-voltage pure power amplifier designed to deliver powerful and efficient audio performance over large areas. By increasing voltage and reducing current, it minimizes line losses, ensuring clear and consistent sound even across long cable runs.
This amplifier focuses purely on power amplification, without built-in functions such as source switching or volume control, making it ideal for integration with mixers or pre-amplifiers. Its constant-voltage design guarantees stable output under varying loads, providing reliable performance for distributed audio systems.
Premium 2U Aluminum Front Panel – Elegant black finish with a sleek, durable design, combining aesthetics with sturdiness.
Double-Sided PCB Technology – Ensures stronger component adhesion and more stable, reliable performance.
High-Efficiency Pure Copper Transformer – Delivers stronger power output and higher energy efficiency.
Flexible Connectivity – Equipped with both RCA and XLR interfaces for versatile audio connections.
Multiple Output Options – Supports 100V and 70V constant voltage outputs, as well as 4–16Ω constant resistance outputs.
Adjustable Output Volume – Allows precise control of audio levels.
5-Unit LED Display – Provides clear visibility of operating status at a glance.
Comprehensive Protection Features – Includes short-circuit, high-temperature, overload, and DC protection, plus temperature-controlled cooling fans to ensure safe operation.
Ideal for Medium and Small Public Spaces – Perfectly suited for public address systems, commercial venues, and community broadcasts.
| Model No. | JWDTE01 |
| Rated output power | 300W |
| Output method | 4-16 ohms (Ω) constant resistance output |
| 70V (13.6 ohms (Ω)) 100V (27.8 ohms (Ω)) constant voltage output | |
| Line input | 10k ohms (Ω) <1V, unbalanced |
| Line output | 10k ohms (Ω) 0.775V (0 dB), unbalanced |
| Frequency response | 60 Hz ~ 15k Hz (± 3 dB) |
| Non-linear distortion | <0.5% at 1kHz, 1/3 of rated output power |
| Signal to noise ratio | >70 dB |
| Damping coefficient | 200 |
| Rate of voltage rise | 15V/uS |
| Output adjustment rate | <3 dB, from no signal static operation to full load operation |
| Function control | One Volume adjustment , One power switch one |
| Cooling method | DC 12V FAN forced air cooling method |
| Indicator Power | ‘POWER’, Peaking: ‘CLIP’, Signal: ‘SINGNAL’, |
| Power cord | (3 × 1.5 mm2) × 1.5M (standard) |
| Power supply | AC 220V ± 10% 50-60Hz |
| Power consumption | 485W |
| Net weight | 15.12kg |
| Gross weight | 16.76kg |
Each product is shipped in durable, protective packaging designed for secure transport and storage. The packaging features impact-resistant materials and clear labeling for easy handling, with OEM and custom packaging options available.
This IP amplifier is specifically engineered for command and dispatch broadcasting in mission-critical environments. It is widely used across public safety sectors—including police, armed forces, fire services, and civil defense—as well as in defense, transportation (railways), energy (power, petroleum, mining), forestry, and government agencies.
The system enables rapid emergency response by integrating multiple communication channels into a unified platform, ensuring reliable, real-time audio delivery for critical operations. Its robust design and networked capabilities make it an essential component for secure, large-scale broadcasting and emergency communication systems.
The JWDTE01 IP Network Amplifier acts as the central audio processing and distribution hub in modern unified command and broadcasting systems. It is designed to deliver reliable, clear, and instantaneous audio communication across large and complex operational environments.
System Architecture & Workflow

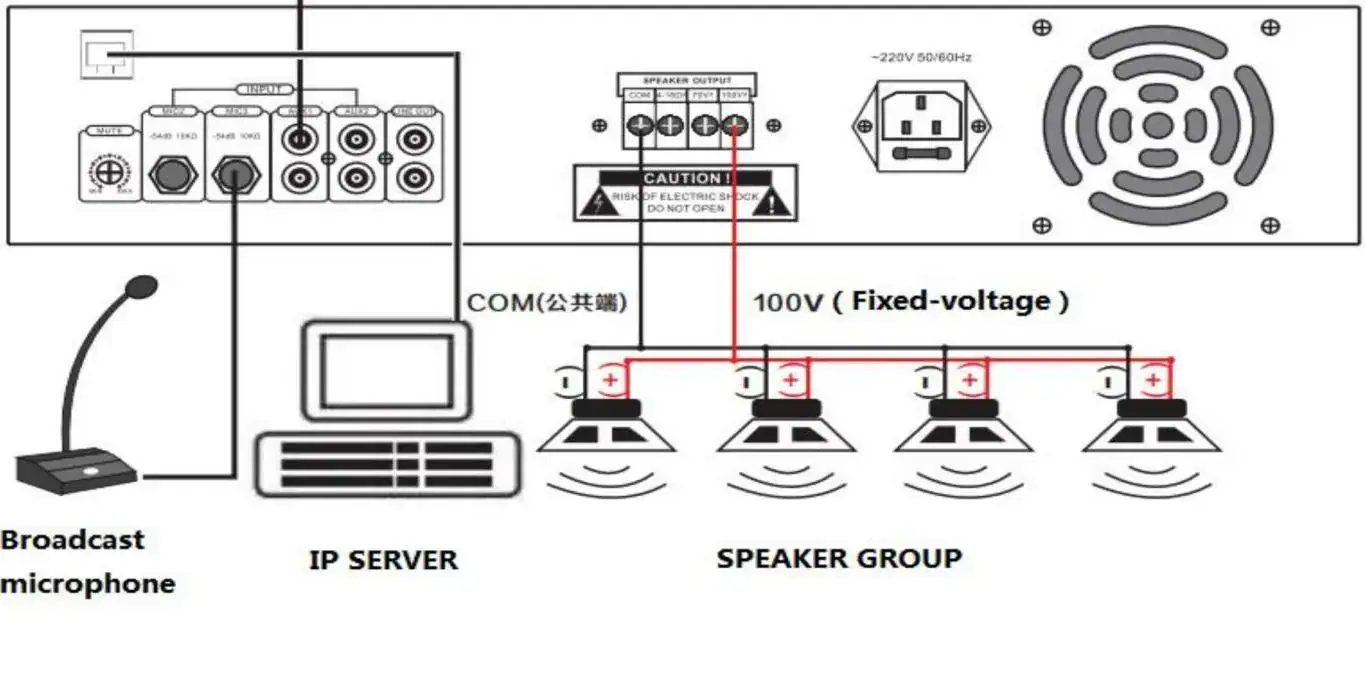

The solution consolidates audio from multiple sources—including wired and wireless microphones, line-level inputs from dispatch consoles, and digital media—into the JWDTE01 amplifier. Using standard IP networks (LAN/WAN), the amplifier receives, processes, and amplifies these signals before distributing high-power output to strategically positioned speaker zones via 100V/70V constant-voltage or low-impedance lines.
A central management software platform enables remote monitoring, zone paging, scheduled playback, and emergency alert activation, all from a single, unified interface. This architecture ensures flexible, scalable, and responsive audio communication suitable for campuses, public safety operations, and critical infrastructure environments.
Key Advantages:
Centralized audio processing for multiple input sources
IP-based distribution for scalable, long-distance coverage
High-power output supporting both constant-voltage and low-impedance speaker lines
Remote management and emergency alert capability via a single platform
Ideal for command centers, large campuses, and mission-critical broadcasting
