Wall Mounted Vandal Resistant Phone JWAT137

Model JWAT137 vandal-resistant phone features a durable 304 stainless steel shell, IP65 weatherproofing, armored handset cord, optional noise-canceling microphone, zinc alloy keypad with volume control, magnetic hook switch, easy wall-mounted installation, no extra power needed, multiple colors, and full CE, FCC, RoHS, ISO9001 compliance.

Engineered for maximum durability, the JWAT137 is ideal for use in jails and prisons as an inmate or staff telephone, as well as in correctional facilities, healthcare centers, hospitals, water parks, airports, and other public or industrial locations where vandal resistance and reliability are critical.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES

Model JWAT137 vandal resistant phone is built for maximum security in tough environments. Designed as a highly durable vandal resistant phone, it features a robust 304 stainless steel shell that provides exceptional mechanical strength, strong impact resistance, and IP65-rated weatherproof protection against the elements.

  • The heavy-duty handset protects communication lines using an armored cord and grommet, and it supports an optional noise-canceling microphone for noisy areas.

  • A weather-sealed, tactile zinc alloy digital keypad includes a built-in volume control button for quick audio adjustments.

  • The magnetic hook switch operates with a dependable reed switch to ensure long-lasting functionality without fragile mechanical parts.

  • Installation is fast and straightforward thanks to a simple wall-mounted design and RJ11 screw terminal pair cable connections. It also does not need additional power cord.

  • Users can customize their devices with multiple color options and easily maintain the units with readily available self-made spare parts.

  • Fully CE, FCC, RoHS, and ISO9001 compliant.

Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ＞80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Anti-vandalism Level IK10
Installation Wall-mounted
DIMENSIONS

JWAT137 (2)

PACKAGE

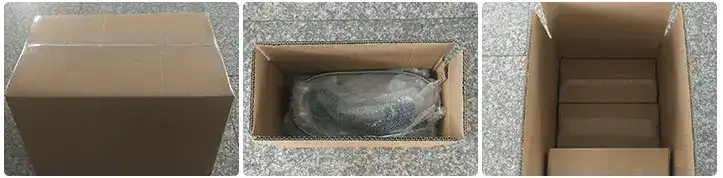

Each telephone is carefully packaged to ensure maximum protection during transport. Shock-absorbing internal materials secure the device, while a sturdy, shipment-ready carton withstands long-distance handling and storage. Accessories and components are neatly organized to streamline unpacking and on-site installation. For large-scale orders or private-label programs, custom packaging solutions—including branded labeling, personalized designs, and palletized shipping—are available to meet specific project requirements.



Unit Size: 287.5*136.5*75MM
Unit Box Size: 330*150*150MM
Unit Net Weight: 3KG
Carton Gross Weight 3.8KG
Mounted inmate telephone in a sturdy, durable design for correctional facilities. Easy to install and secure, providing reliable communication for inmates in a secure environment.
FREQUENTLY ASKED QUESTIONS
1. What makes a prison or industrial telephone different from a regular telephone?
Industrial and prison telephones are designed for high-security and high-durability environments. They feature vandal-resistant materials, tamper-proof designs, reinforced cords, and are often weatherproof for indoor or outdoor use.
2. Are these telephones weatherproof and dustproof?
Yes. Most models meet IP54 or higher standards, offering protection against dust, water, and harsh environmental conditions. Some can even withstand extreme temperatures and corrosive environments.
3. Can the telephone be integrated into a larger communication system?
Absolutely. These phones can be integrated with emergency communication systems, IP PBX, PAGA systems, control rooms, and other unified network solutions. Custom OEM features can also be added.
4. Are the handsets vandal-resistant?
Yes. Handsets are typically reinforced with steel cords or internal lanyards and made of high-strength materials to prevent tampering or damage.
5. What installation options are available?
These telephones are generally wall-mounted for stability and security. Installation is simple, with all accessories clearly labeled. Some models support flush-mounting or surface-mounting for added protection.
6. What certifications do these telephones have?
Quality and compliance are ensured with certifications such as CE, FCC, RoHS, and ISO9001, depending on the manufacturer.

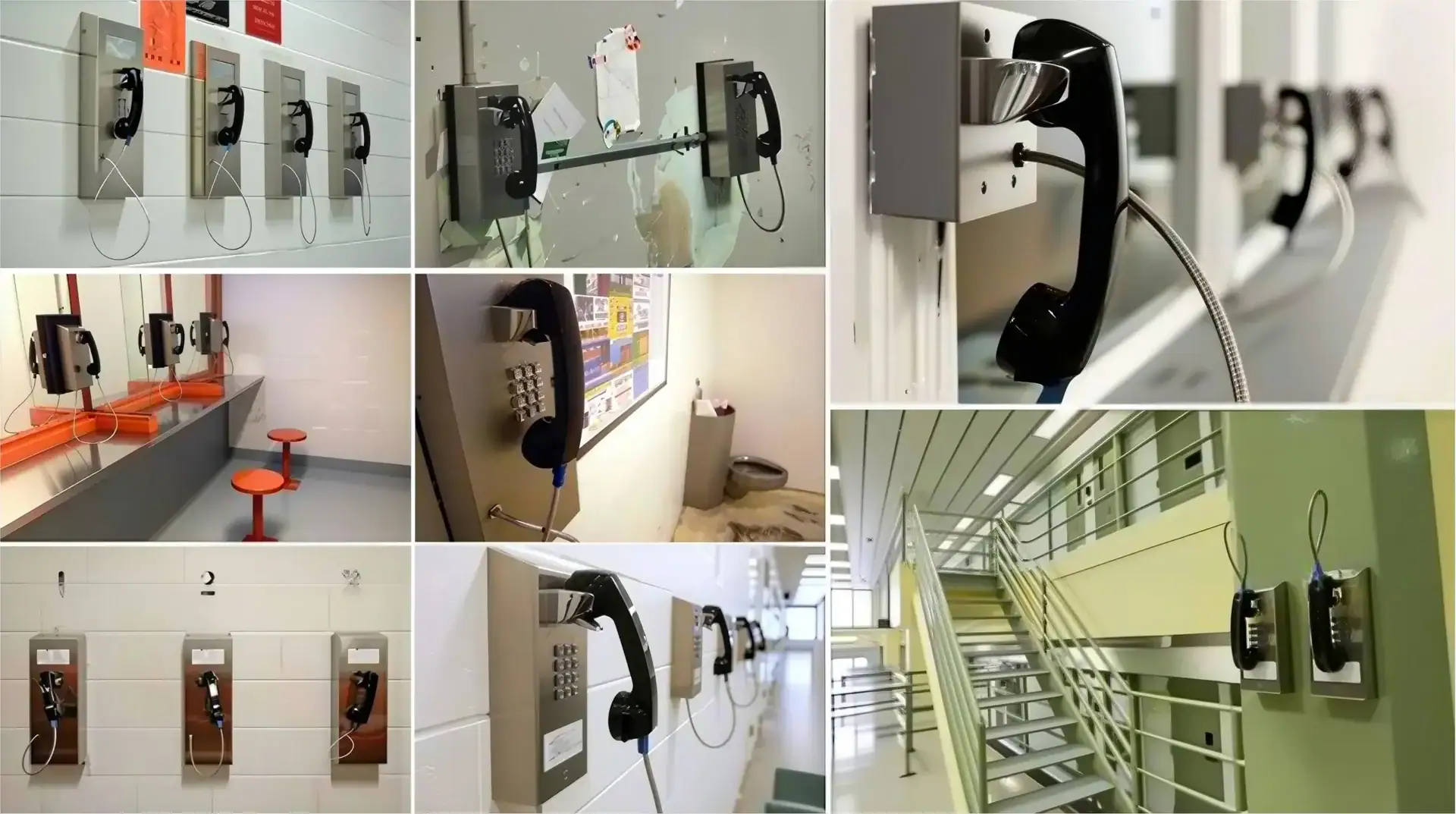

Engineered for toughness and reliability, this stainless steel vandal resistant phone performs flawlessly in the most demanding settings. Its robust design withstands vandalism, heavy usage, and harsh environmental conditions, making it perfect for correctional facilities, hospitals, industrial plants, offshore platforms, airports, schools, and public spaces. Ideal for high-traffic, security-sensitive, or PREA-compliant areas, it ensures uninterrupted communication where durability and dependability matter most.

JWAT137 (8)

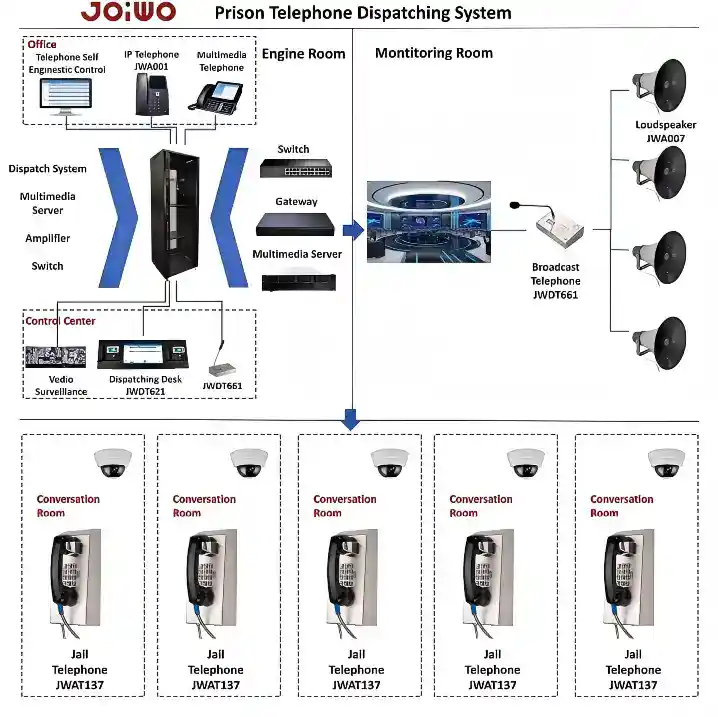

Joiwo provides a complete prison communication solution designed for high-security environments, enabling controlled inmate communication, accurate identity management, and centralized supervision.

Key Features

Anti-vandal prison telephones

Call restriction, monitoring, and recording

IC card and fingerprint-based inmate identification

Prepaid / postpaid call billing

POS-based inmate consumption management

Video visitation and secure messaging(Optional Extensions)

Managed access and unauthorized mobile prevention(Optional Extensions)

Advantages

Prison-grade security design

Centralized management platform

Flexible system expansion

Applicable to prisons, detention centers, and high-security correctional facilities.
