Wall Mount Telephone with Anti-destruction Handset JWAT130
The JWAT130 Vandal-Resistant Handset Telephone is a reliable communication solution designed for prison and correctional facility systems. Its body is constructed from SUS304 stainless steel (cold-rolled steel optional) for corrosion and oxidation resistance, while the high-tensile handset can withstand forces up to 100 kg. Installation is simple and adjustable, with a secure housing and backplate fixed by four screws and an additional security screw to prevent unauthorized access. The back-mounted cable entrance protects against tampering.
There are multiple versions are available, including options with or without a keypad, additional function buttons on request, and customizable colors. All components, including the keypad, cradle, and handset, are self-manufactured and fully customizable to meet specific requirements.
When reliable communication is critical in high-risk or public areas, you need equipment designed to survive abuse and harsh conditions. Our standard analogue phone delivers straightforward, line-powered operation housed in an incredibly tough exterior. Built to withstand both severe weather and vandalism, this phone is ideal for industrial sites, transit stations, and outdoor public spaces where standard equipment would quickly fail.
The heavy-duty construction ensures your communication lines stay open no matter what. With easy wall-mounted installation and highly customizable options, it provides a secure and dependable intercom solution tailored to your exact environment.
Key Features
- The standard analogue phone is fully powered by the phone line for simple and reliable operation.
- The shell is constructed from 304 stainless steel to provide exceptional mechanical strength and strong impact resistance.
- It features anti-destruction handsets with an internal steel lanyard and grommet to completely secure the handset cord.
- Components include a highly durable zinc alloy keypad and a magnetic hook switch utilizing a reed switch.
- You can easily wall-mount the unit using the standard RJ11 screw terminal pair cable connection.
- Optional upgrades include a noise-canceling microphone and weatherproof protection ranging from IP55 to IP65.
- The phone is available in multiple colors to suit your facility’s aesthetic or safety requirements.
- The unit is fully CE, FCC, RoHS, and ISO9001 compliant, with self-made spare parts readily available for long-term maintenance.
| Power Supply | Telephone Line Powered |
| Voltage | DC48V |
| Standby Work Current | ≤1mA |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≤80dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+70℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Anti-vandalism Level | IK10 |
| Installation | Wall-mounted |
Each telephone is securely packaged with shock-absorbing materials in a durable export-grade carton, protecting it from impact, moisture, and vibration during transit. Accessories are organized for quick installation, and custom packaging, branding, and bulk pallet options are available to meet project or OEM needs.
| Unit Size: | 270*130*60MM |
| Unit Box Size: | 330*150*150MM |
| Unit Net Weight: | 3.5KG |
| Carton Gross Weight | 3.8KG |

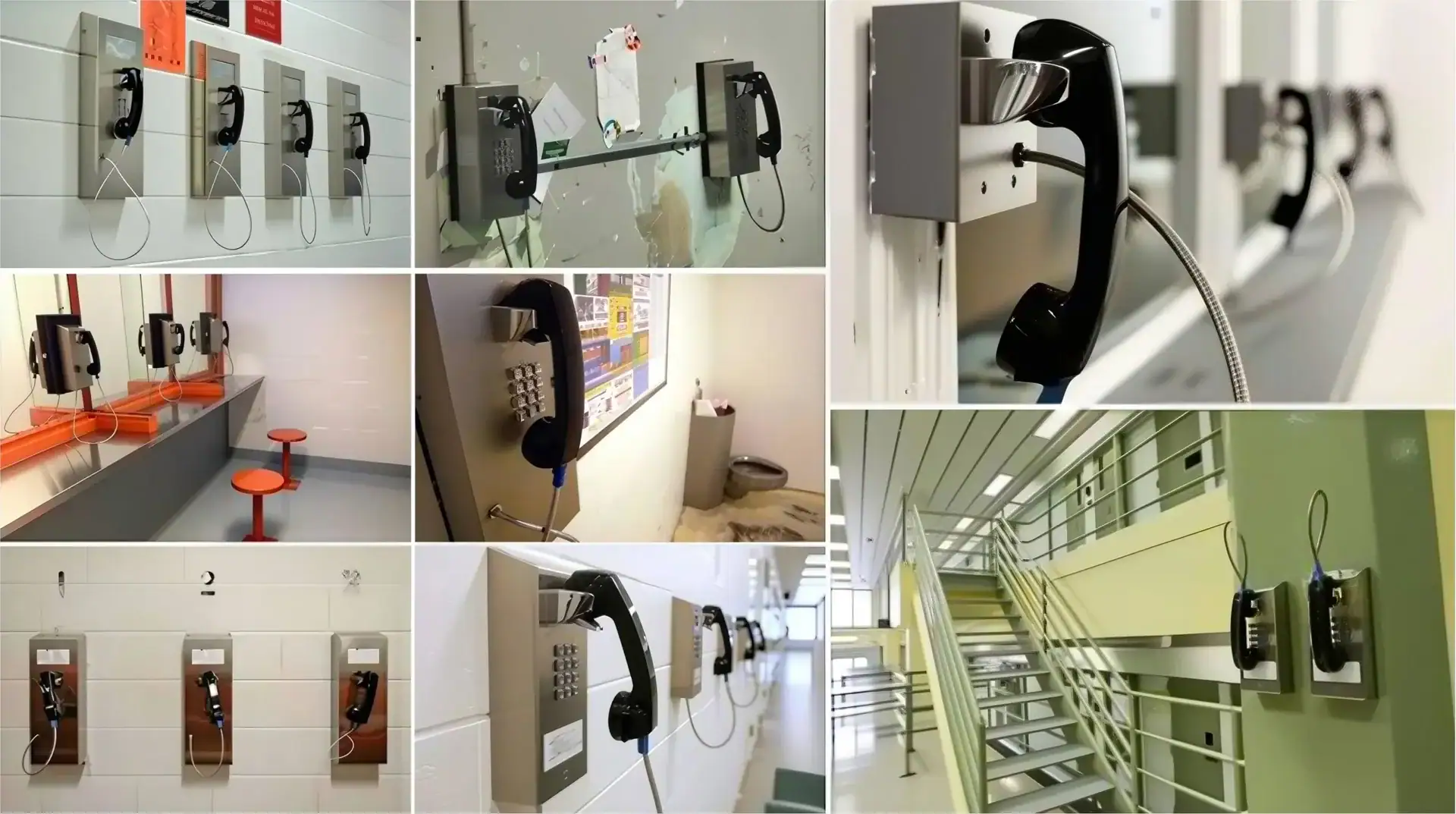

The stainless steel phone is designed for demanding environments, including correctional facilities, hospitals, offshore platforms, oil rigs, dormitories, airports, control rooms, sally ports, schools, industrial plants, entry gates, PREA-compliant areas, and waiting rooms. Its rugged construction delivers reliable, long-lasting performance even in high-traffic, harsh, or security-sensitive conditions.

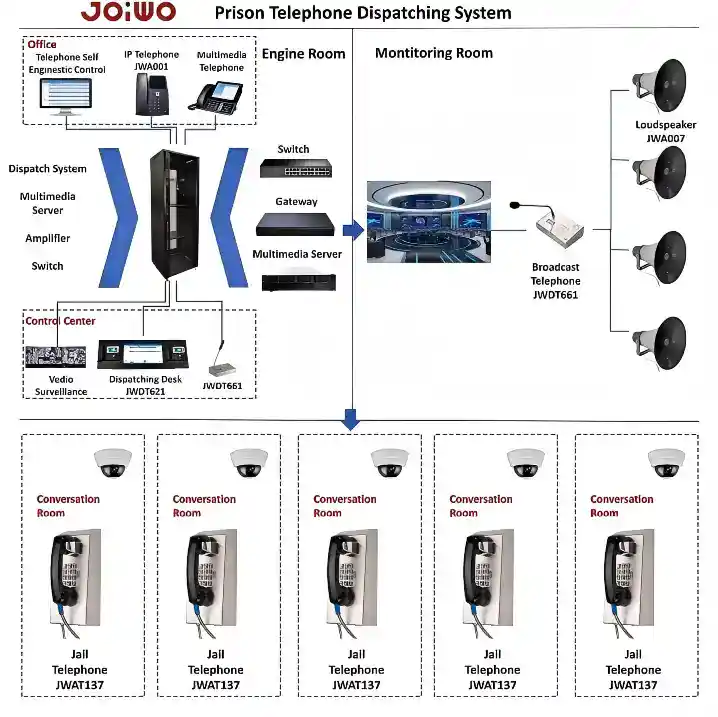

Joiwo provides a complete Jail communication solution designed for high-security environments, enabling controlled inmate communication, accurate identity management, and centralized supervision.
System Architecture
- Analog & IP Supported
- Analog prison telephone system
- IP / SIP-based prison communication system
- Flexible deployment and easy system upgrade
Core Modules
| Inmate Telephone System | Controlled calling, call monitoring, and recording |
| Inmate Identification
|
IC card, fingerprint, or multi-factor authentication |
| Billing & Consumption Management | Call billing, prepaid/postpaid accounts, POS consumption |
| Internal Communication & Emergency | Intercom, emergency calls, PA and alarm integration |
| Centralized Management Platform | Unified monitoring, reports, and audit logs
|
| Video & Digital Communication | Video visitation and secure messaging |
| Signal Control & Security Management
|
Managed access and unauthorized mobile prevention |
Applicable to:
Prisons, detention centers, and high-security correctional facilities
