Wall Mount Speed Dial Intercom Emergency Telephone JWAT415

The JWAT415 Waterproof Industrial Telephone is specially designed for use in demanding environments such as food processing plants, schools, chemical factories, and public areas.

It features excellent stability and strong anti-interference performance, fully compliant with the national standard GB/T 15279-94. The telephone supports full-duplex, two-way communication, ensuring clear and reliable voice transmission at all times.

Engineered to operate reliably in extreme temperatures ranging from -40°C to +60°C, the JWAT415 meets stringent industrial durability requirements, with technical performance reaching an internationally advanced level. With a waterproof rating of IP65, it is ideal for use in wet conditions, harsh weather, and other challenging outdoor or industrial environments.

Widely used in：
MARINE ENVIRONMENT
HIGHWAY SHOULDER
SUBWAY STATION
TUNNEL
UNDERGROUND FACILITY
RAILWAY PLATFORM
MINING SITE
OTHERS
KEY FEATURES
  1. Standard Analogue phone. SIP version available.
  2. Robust housing, constructed of cold rolled steel material.
  3. 4 X Tamper proof screws for mounting and one lock key.
  4. Hands-free Operation.
  5. Vandal resistant stainless steel keypad with 4 programmed button, supporting programmable speed dial, redial, and volume up/down for convenient use.
  6. Wall mounted Installation type.
  7. Defend Grade protection IP65 .
  8. Connection: RJ11 screw terminal pair cable.
  9. Self-made telephone spare part available.
  10. CE, FCC, RoHS, ISO9001 compliant.
Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40～+70℃
Anti-Vandalism Level Ik10
Atmospheric Pressure 80～110KPa
Weight 3.8kg
Relative Humidity ≤95%
Installation Wall mounted

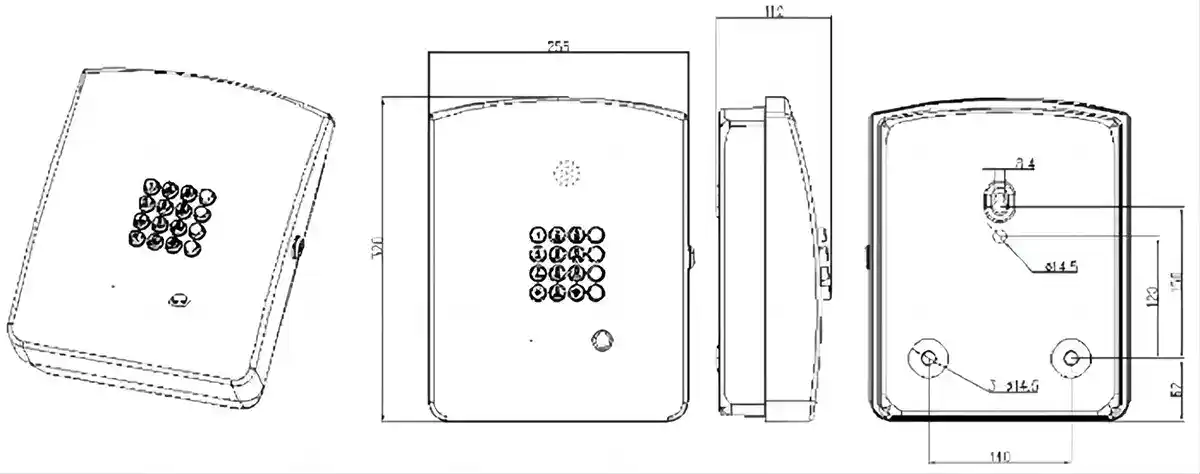

DIMENSIONS

Wall Mount Speed Dial Intercom JWAT415 for emergency communication and access control. Compact design with easy-to-use speed dial buttons, suitable for security and emergency response in various facil.

PACKAGE

Each telephone is carefully packed in high-strength, protective packaging to guarantee safe arrival. The box is constructed with impact-resistant materials and features clear, durable labeling for easy identification and handling. For clients with specific needs, we offer both standard protective packaging and custom/OEM packaging solutions.



Unit size 320×255×112 (mm)
Carton size 440*320*270 (mm)
Packaging materials Pearl cotton, Carton
Net weight 3.5 KG
Gross weight 4 KG
Intercom wall mount speed dial in packaging, ready for installation.
FREQUENTLY ASKED QUESTIONS
Q1: What environments is this telephone designed for?
A: This product is specifically engineered for extreme outdoor and industrial environments. It is commonly used in locations such as tunnels, mines, metro stations, railway platforms, highways, power plants, chemical plants, ports, and underground facilities. With an IP66 protection rating, it resists rain, dust, and moisture.
Q2: What installation methods are supported?
A: The telephone is designed for wall mounting. Its compact structure allows for simple and secure installation on walls, columns, or control cabinets.
Q3: Does it support VoIP communication?
A: Yes. The telephone is available in two versions: standard analogue and SIP (VoIP), providing flexibility to integrate with your existing communication infrastructure.
Q4: Is customization available (e.g., color, logo, features)?
A: Yes. We offer OEM and customization services, including housing color, company logos, and specific functional adjustments to meet various project requirements.
Q5: Which international certifications does the product hold?
A: This telephone complies with CE, FCC, RoHS, and ISO9001 quality management system standards, meeting multiple international safety and environmental requirements.

This intercom is specifically designed for use in clean rooms, laboratories, hospital isolation wards, sterile areas, and other restricted or controlled environments.

It is also widely applicable in a variety of public and industrial settings, including elevators/lifts, parking facilities, prisons, railway and metro platforms, hospitals, police stations, ATM machines, stadiums, campuses, shopping malls, access doors, hotels, and outdoor building installations.

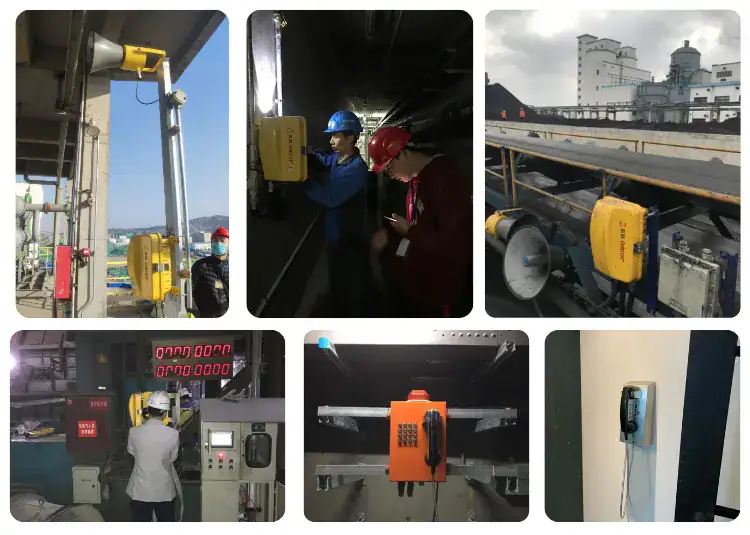

Emergency intercom device for quick communication in industrial or public safety settings. Wall-mounted speed dial intercom with durable design for emergency use.

This durable hands-free telephone serves as the backbone of a dedicated emergency communication system, built for harsh and critical environments. It ensures instant and reliable voice connectivity in challenging locations such as tunnels, industrial facilities, and transportation hubs, supporting safety and rapid response.

The system integrates seamlessly with existing analogue or VoIP networks, featuring vandal-resistant, weatherproof (IP66) endpoints. Fully compliant with CE, FCC, and RoHS standards, it also offers flexible customization options, providing a dependable, always-ready communication lifeline for emergency situations.

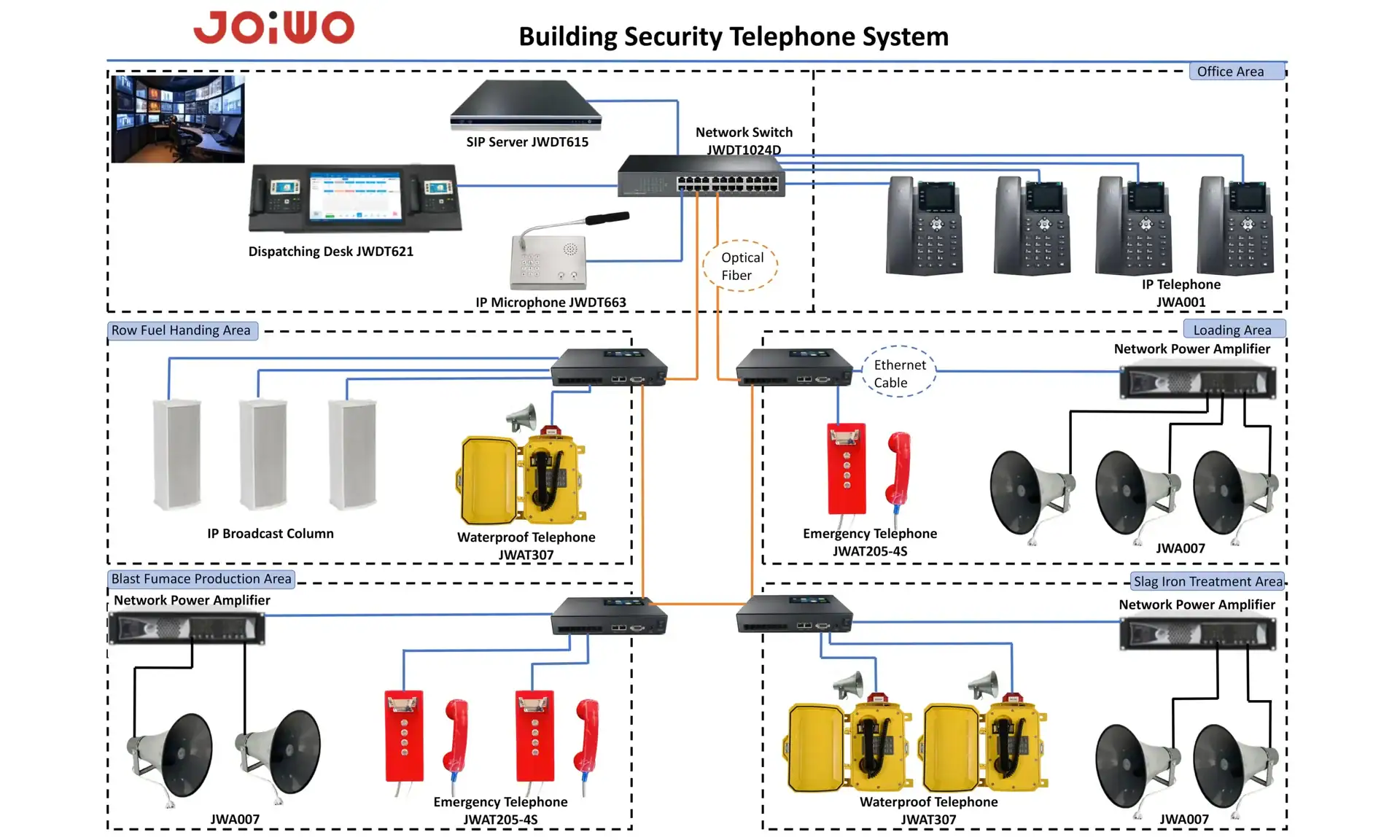

Wall-mounted speed dial intercom system with emergency telephone, network switches, and security components for building communication.
