Wall Mounted Corded Rolled Public Emergency Telephone JWAT202
The JWAT202 telephone features a cold-rolled steel housing, offering excellent corrosion resistance, oxidation resistance, and long-term durability. It is equipped with a full zinc-alloy keypad and four programmable function keys, which can be customized for redial, volume adjustment, speed dialing, and other functions.
Multiple configurations are available, including models with stainless-steel armored cords or spiral cords, with or without a keypad, and optional additional function buttons upon request.
As a leading manufacturer with self-owned factory for customized public telephone production, we engineered this heavy-duty analog telephone to provide instant, reliable communication in high-traffic and industrial areas.
Powered directly by the phone line with a simple plug-and-play setup, it eliminates the need for external power sources while delivering outstanding physical protection.
Rugged Vandal-Resistant Design
Designed to the rigorous standards, this unit is built to survive abuse and harsh environments:
- Heavy-Duty Housing: Constructed from cold-rolled steel and treated with a durable powder-coated finish for maximum longevity.
- Secure Handset: The vandal-resistant handset features an internal steel lanyard and a reinforced grommet for greatly enhanced cord security.
- Wear-Free Switching: Incorporates a magnetic hook switch paired with a reliable reed switch design.
- Weatherproof Rating: Engineered with an IP54 protection rating to defend internal components against dust and moisture.
Speed-Dial Configuration & Factory Support
This terminal provides seamless usability alongside flexible factory-direct customization options:
- Programmable Calling: Features a robust zinc-alloy keypad equipped with four programmable speed-dial buttons for rapid emergency or service calling.
- Acoustic Upgrades: An optional noise-canceling microphone is available to ensure greatly improved voice clarity in noisy environments.
- Simple Deployment: The wall-mounted design allows for quick installation via a standard RJ11 interface or secure screw terminal pair cable.
- Certified Customization: Available in multiple colors with custom in-house manufactured spare parts. The unit is fully compliant with CE, FCC, RoHS, and ISO9001 quality and safety standards.
| Power Supply | Telephone Line Powered |
| Voltage | DC48V |
| Standby Work Current | ≤1mA |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ＞80dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+70℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Anti-vandalism Level | IK09 |
| Installation | Wall-mounted |
Each telephone is meticulously packaged to ensure maximum protection during transportation. Shock-absorbing materials and sturdy, export-grade cartons safeguard the unit against impact, moisture, and vibration. Accessories are securely organized and clearly labeled for easy installation. Customized packaging, private labeling, and palletized bulk options are available to meet specific project requirements or OEM needs.

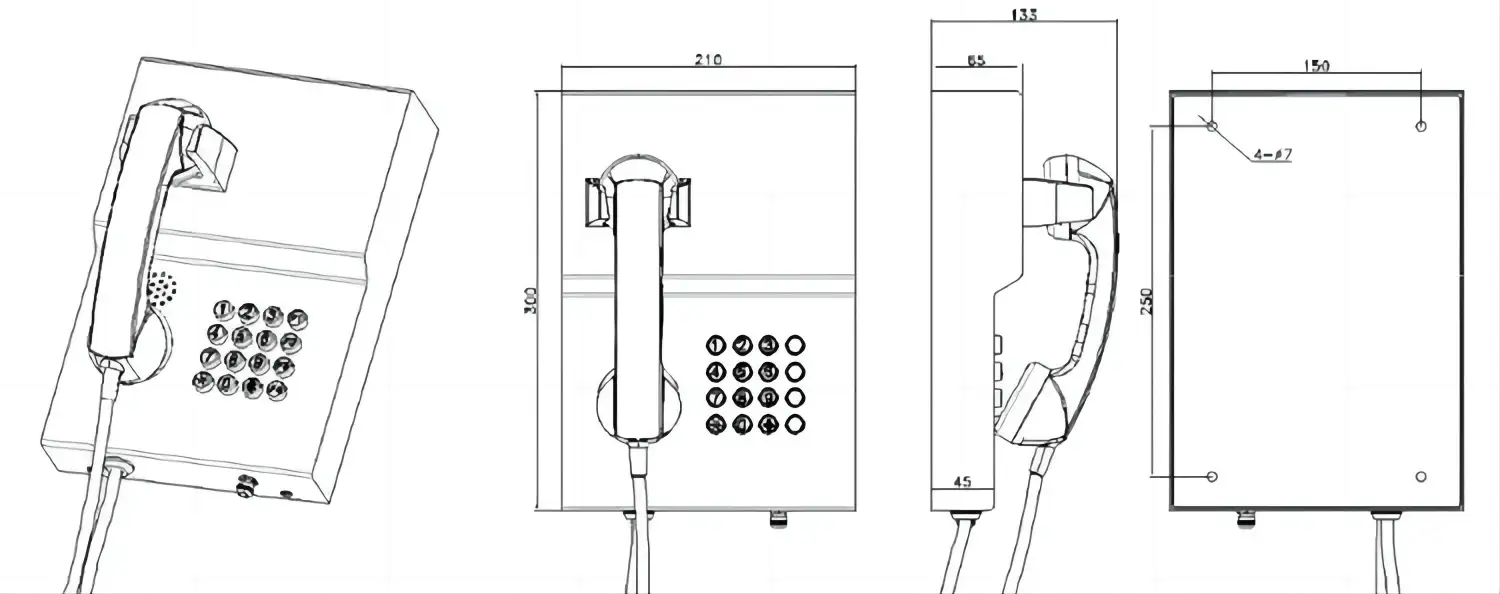

| Unit Size: | 210*300*65MM |
| Unit Box Size: | 440*320*270MM |
| Unit Net Weight: | 3.5KG |
| Carton Gross Weight | 3.8KG |

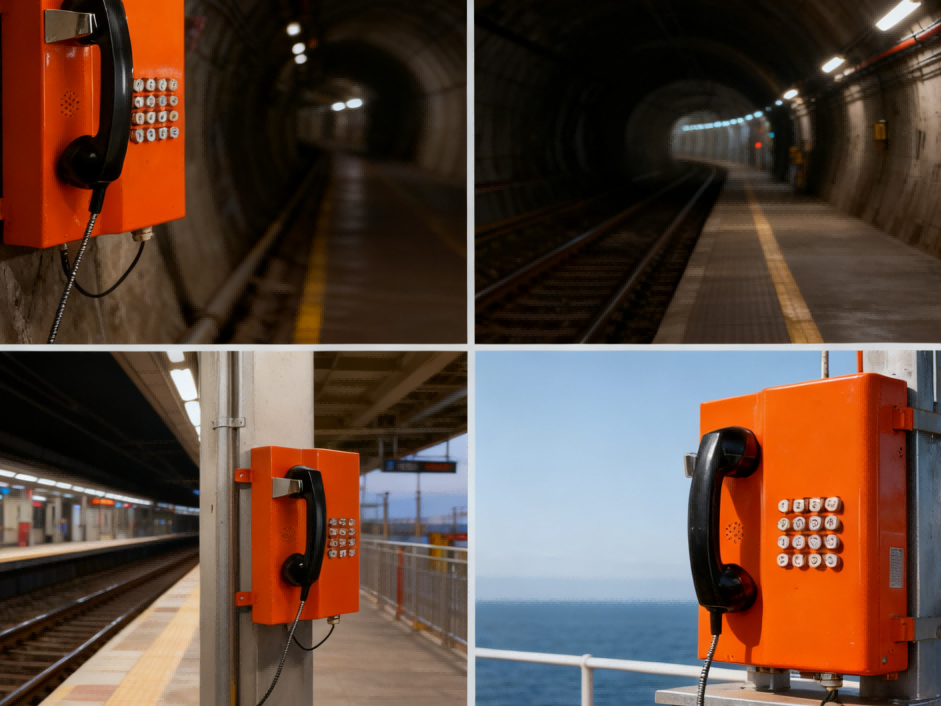

This vandal-proof telephone is designed for use in demanding and high-risk environments. It is ideal for railway and metro systems, marine and offshore facilities, tunnels and underground mining sites, fire and emergency services, industrial plants, prisons and correctional facilities, parking areas, hospitals, guard stations, police stations, bank halls, ATM areas, stadiums, and both indoor and outdoor building installations.

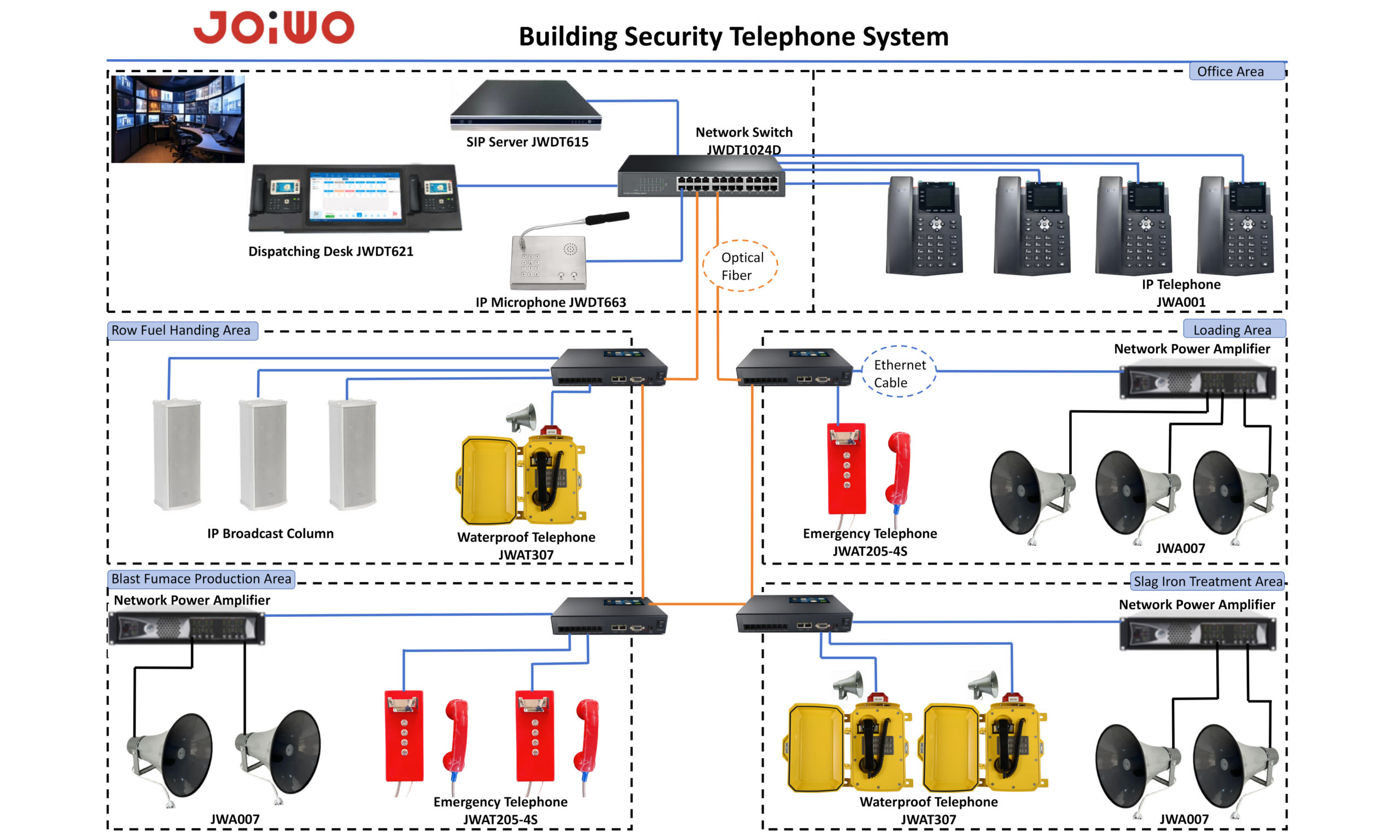

The vandal-proof telephone system provides a reliable and secure communication solution for harsh and high-risk environments. Integrated with standard analogue telephone networks, PBX systems, or emergency communication platforms, the system ensures clear and immediate voice communication during daily operations and emergency situations. With its robust construction, weather-resistant design, and optional noise-canceling features, the solution supports 24/7 operation in industrial sites, transportation hubs, and public safety facilities. It can be deployed as a standalone unit or as part of a centralized communication system for monitoring, control, and emergency response.
