Customized Explosion Proof Telephone with RoSH Compliance JWBT810P-JK
Joiwo manufactures explosion-proof telephones with rugged, RoHS-compliant designs featuring warning beacons, heavy-duty handsets, noise-canceling mics, and zinc alloy keypads. Housed in weatherproof, impact-resistant enclosures (IP66–IP67) operating from –40°C to +70°C, they meet CE, FCC, and ISO9001 standards.
As a specialized manufacturer of explosion-proof telephones, Joiwo combines rugged engineering with full RoHS compliance to deliver highly customized communication solutions. The company offers tailored explosion-proof communication systems that integrate features such as warning beacons and alarm horns.

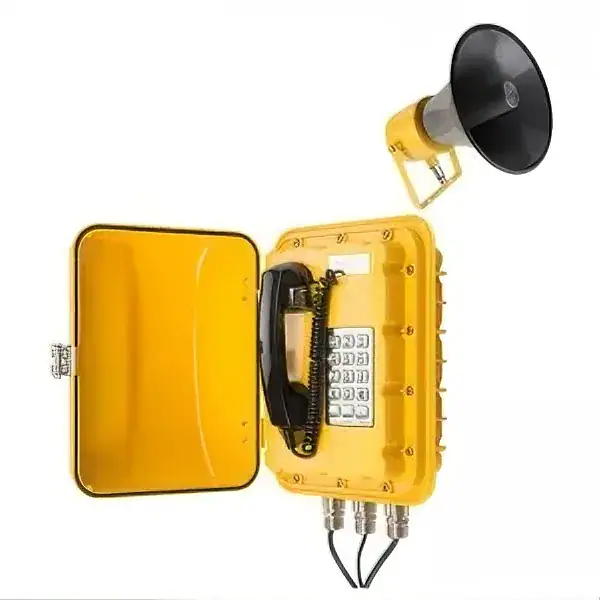

Housed in a high-strength aluminum alloy die-cast enclosure, the telephone offers excellent impact resistance. It features a heavy-duty handset with a hearing aid-compatible receiver and a noise-canceling microphone, along with a durable zinc alloy keypad and magnetic reed hook switch. The unit is weatherproof with IP66–IP67 protection and operates reliably in temperatures ranging from –40°C to +70°C.
Designed for noisy environments, the built-in flashing indicator and loudspeaker ensure clear communication. The UV-stabilized polyester powder-coated finish guarantees long-term outdoor use. With a wall-mounted design, multiple housing styles and color options, plus in-house manufactured spare parts for stable supply and quality control, Joiwo also meets CE, FCC, and ISO9001 standards.
| Explosion-proof mark | ExdibIICT6Gb/EXtDA21IP66T80℃ |
| Signal Voltage | 100-230VAC |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | 110dB |
| Amplified Output Power | 25W |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+60℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Lead Hole | 3-G3/4” |
| Installation | Wall-mounted |
Each explosion-proof telephone is shipped in durable, protective packaging designed for secure transport and storage. The packaging features impact-resistant materials and clear labeling for easy handling, with OEM and custom packaging options available.

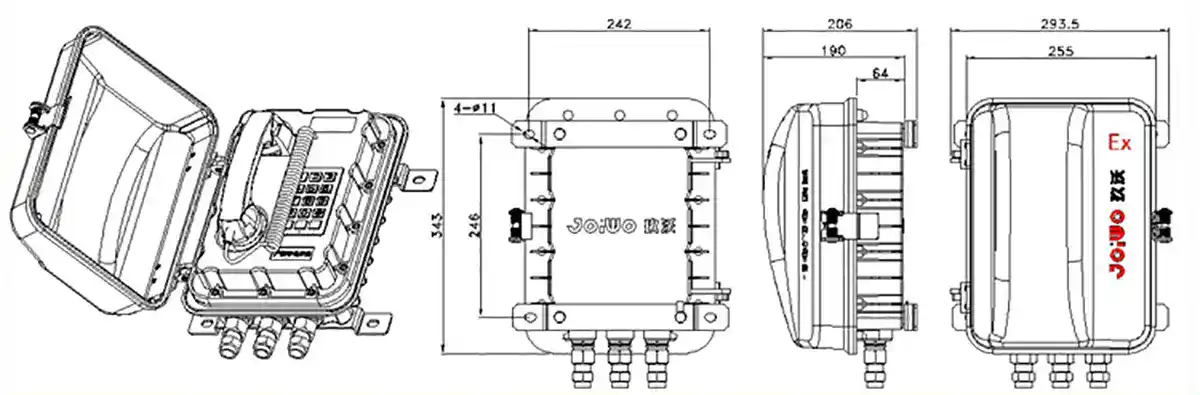

| Unit size | 343×294×206 (mm) |
| Carton size | 440*320*270 (mm) |
| Packaging materials | Pearl cotton, Carton |
| Net weight | 10 KG |
| Gross weight | 10.5 KG |

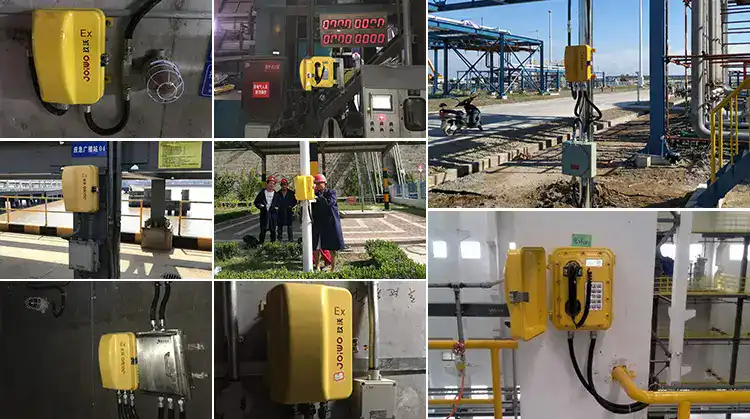

This explosion-proof telephone is designed for reliable operation in high-risk and harsh industrial environments.
Typical Applications
Ideal for locations where flammable gases, vapors, or combustible dust may be present, including:
Oil & gas facilities and petrochemical plants
Mines, tunnels, and metro or railway systems
Highways, bridges, and transportation infrastructure
Marine vessels, offshore platforms, power plants, and other hazardous industrial areas

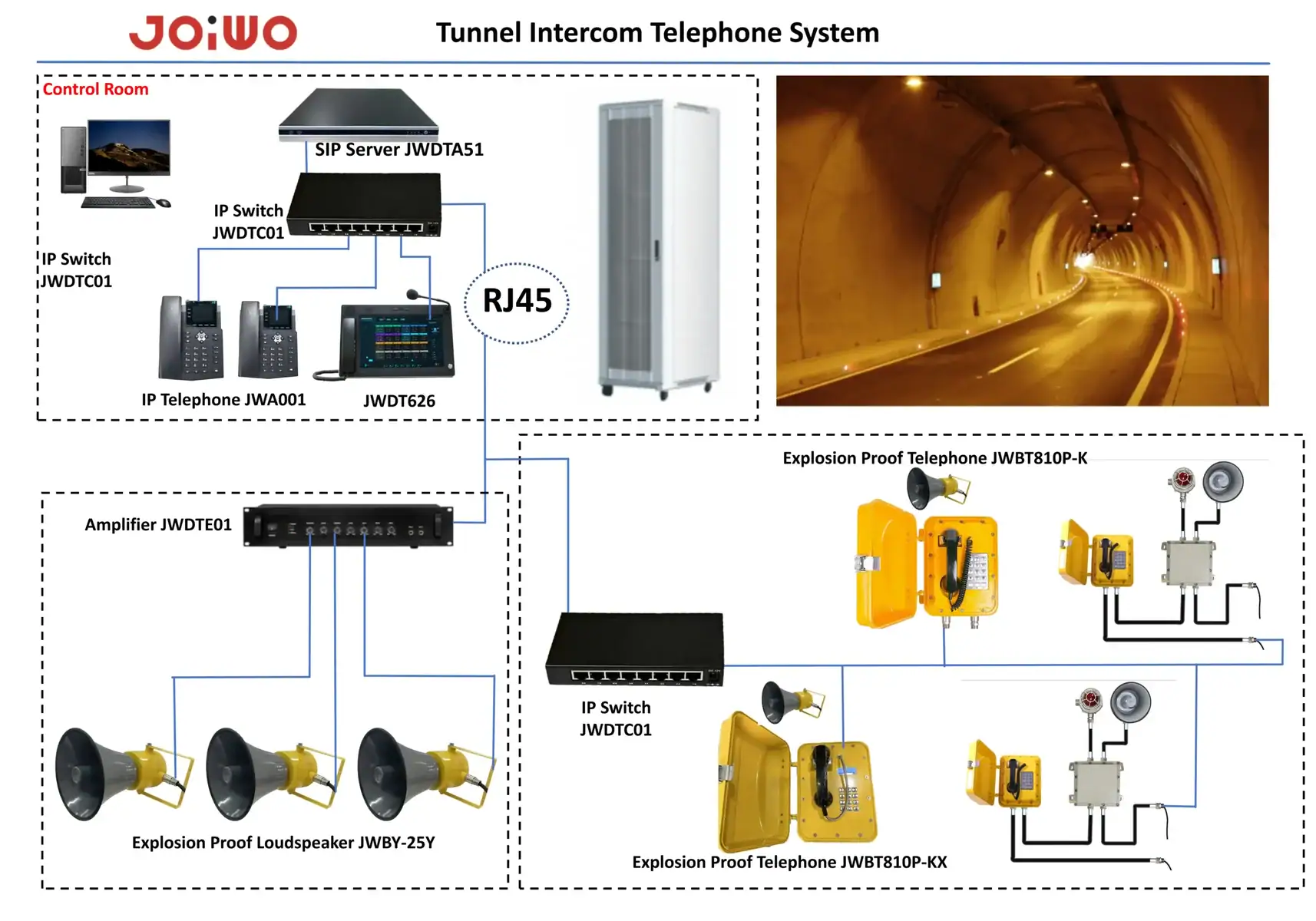

Joiwo is more than a manufacturer, we are a dedicated telecommunications solutions integrator. We provide not only terminal equipment but also complete, end-to-end communication systems customized to each client’s requirements. Our integrated offerings include:
- Core Communication Systems: IP PBX and IP servers
- Management & Monitoring: Telephone self-diagnostic platforms and unified network management
- Specialized Systems: PAGA (Public Address & General Alarm) and EVCS (Emergency Voice Communication Systems)
- Customization Support: Tailored OEM solutions and functional customization
At Joiwo, we deliver seamlessly integrated communication infrastructures — designed, built, and supported to perform reliably in demanding environments.
