Waterproof Wall Mounted Telephone with Beacon Light JWAT301P-KJ

This industrial-grade waterproof telephone is fully enclosed in a corrosion-resistant cast aluminum alloy case, providing complete protection against dust and moisture. Its robust design ensures high reliability and a long MTBF, making it ideal for demanding environments. The telephone can be connected to a loudspeaker and a flashing light; when a call is received, the loudspeaker sounds and the alarm light activates simultaneously, making it immediately clear which unit is receiving a call.

Widely used in：

MARINE ENVIRONMENT

HIGHWAY SHOULDER

SUBWAY STATION

TUNNEL

UNDERGROUND FACILITY

RAILWAY PLATFORM

MINING SITE

OTHERS

KEY FEATURES

Rugged and Reliable: Constructed from a high-strength aluminum alloy die-cast shell, offering excellent impact resistance for demanding industrial environments.

Dual SIP Lines: Supports 2-line SIP functionality, fully compliant with SIP 2.0 (RFC3261) for flexible communication.

Superior Audio Quality: Compatible with G.711, G.722, and G.729 codecs, featuring full-duplex operation with echo cancellation (G.167/G.168) for clear, uninterrupted conversations.

Advanced Network Support: Supports IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP; includes WAN/LAN bridge mode, DHCP, and PPPoE for xDSL connectivity.

Heavy-Duty Handset: Hearing-aid compatible with a noise-canceling microphone for clear communication even in noisy environments.

Weatherproof Design: IP68-rated protection against water and dust ensures reliable performance in harsh conditions.

Durable Keypad: Waterproof zinc-alloy buttons, programmable for functions such as SOS or redial.

Easy Installation: Wall-mounted design allows for quick and convenient setup.

Loud Ringer: Up to 110 dB(A), ideal for high-noise industrial areas.

Customizable Options: Available in multiple colors, with spare parts readily available for maintenance and upgrades.

Certifications: CE, FCC, RoHS, and ISO9001 compliant, ensuring quality and safety standards.

Signal Voltage	100-230VAC
Standby Work Current	≤0.2A
Frequency Response	250～3000 Hz
Ringer Volume	≤80dB(A)
Amplified Output Power	10～25W
Corrosion Grade	WF1
Ambient Temperature	-40～+60℃
Atmospheric Pressure	80～110KPa
Relative Humidity	≤95%
Lead Hole	3-PG11
Installation	Wall-mounted

DIMENSIONS

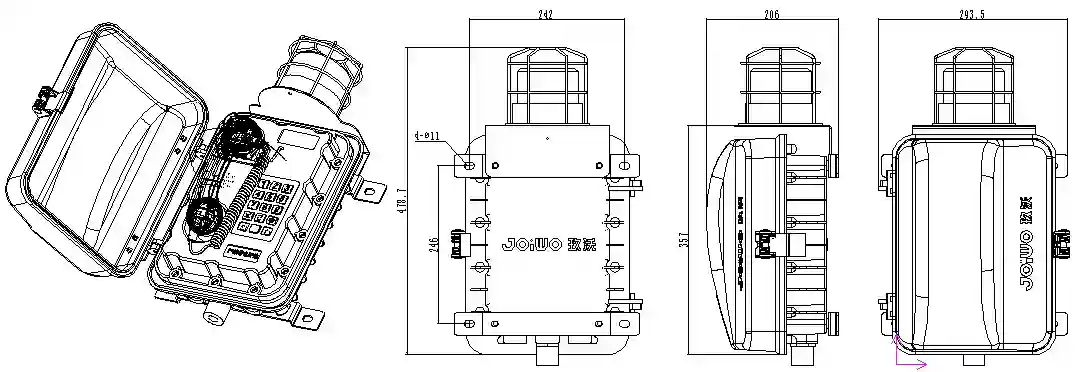

This image showcases the technical design and dimensions of the Waterproof Wall Mounted Telephone JWAT301P-KJ, highlighting its robust build, mounting details, and integrated beacon light for enhanced visibility and safety in industrial settings.

PACKAGE

Safety in transit is our highest priority. Each industrial telephone is carefully protected with dense foam or molded pulp trays to prevent damage during shipment. Durable double-walled cartons provide superior stacking strength, while clear labeling of product and handling information ensures your equipment arrives safely and securely at its destination.

Unit size	343×294×206 (mm)
Carton size	440320270 (mm)
Packaging materials	Pearl cotton, Carton
Net weight	8.5 KG
Gross weight	9 KG

This image shows the packaging process for the waterproof wall-mounted telephone JWAT301P-KJ, including the protective foam insert, the boxed device with beacon light, and the organized storage of multiple units in a warehouse setting, highlighting efficient packaging and inventory management for industrial communication equipment.

FREQUENTLY ASKED QUESTIONS

1. What is the waterproof rating of your telephone?

Our waterproof telephones are typically rated IP65-IP67, meaning they are fully protected against water spray, heavy rain, and temporary immersion. The specific rating varies by model.

2. Can the waterproof telephone be used in harsh outdoor environments?

Yes. The device is engineered with corrosion-resistant materials, sealed housings, and robust keypads, making it suitable for outdoor, industrial, marine, and high-humidity environments.

3. Does the telephone require special installation for waterproof performance?

No special tools are needed, but proper sealing of the cable entry and mounting surface is required. We provide installation diagrams and accessories to ensure optimal waterproof protection.

4. What types of networks are supported (analog/IP)?

We offer both analog waterproof telephones and SIP/VoIP waterproof telephones, allowing compatibility with existing PBX systems, IP networks, or industrial communication setups.

5. Is customization available (color, keypad layout, logo, features)?

Absolutely. We provide OEM/ODM support, including customized colors, keypads, branding, and additional functions such as auto-dialing, hotline, speaker, beacon light, and more.

6. How is the audio performance in noisy environments?

The telephones use noise-reduction microphones, high-power receivers, and optional amplified speakers, ensuring clear communication even in environments like factories, tunnels, and marine decks.

This rugged weatherproof telephone is highly popular across demanding environments such as tunnels, mining operations, marine and offshore sites, underground facilities, metro stations, railway platforms, highways, hotels, parking areas, steel mills, chemical plants, power plants, and other heavy-duty industrial applications. Designed for durability and dependable communication, it performs reliably even in harsh conditions.

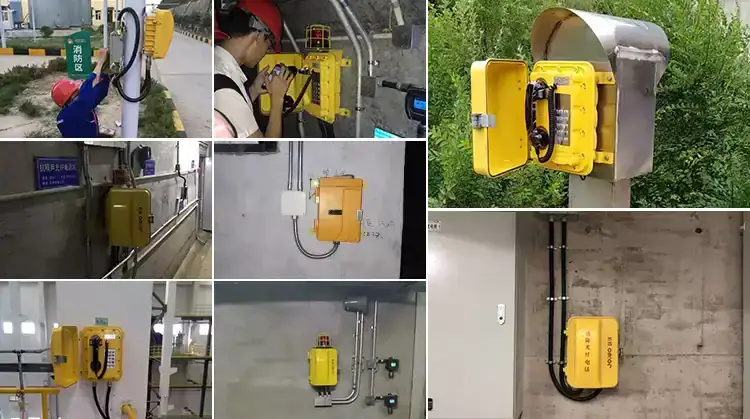

This image showcases various installations of the waterproof wall-mounted telephone model JWAT301P-KJ, designed for reliable communication in harsh environments. The yellow device features a beacon light for visibility and safety, mounted on different surfaces including walls and outdoor structures, emphasizing its durability and suitability for industrial, commercial, and outdoor applications.

Joiwo is more than a manufacturer — we are a trusted provider of complete telecom solutions. In addition to supplying high-quality terminal devices, we specialize in designing and deploying fully integrated, end-to-end communication systems tailored to each client’s unique operational needs. Our capabilities cover a broad range of advanced technologies, including IP PBX platforms, IP servers, telephone self-diagnostic systems, PAGA solutions, unified network management platforms, Emergency Voice Communication Systems, and customized OEM functionalities — ensuring flexible, reliable, and project-specific solutions from concept to deployment.

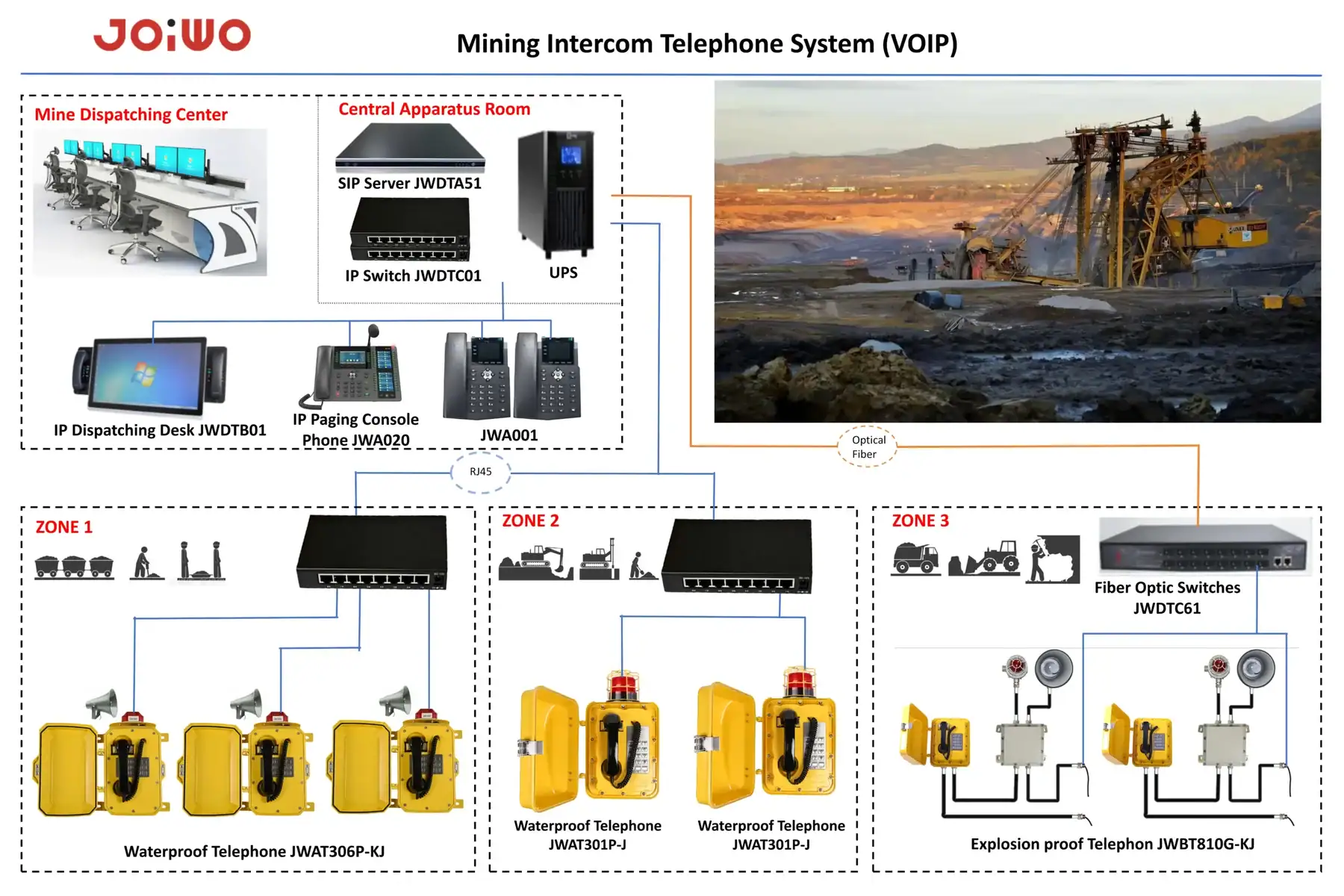

This image shows a system for waterproof wall-mounted telephone model JWAT301P-KJ, featuring a beacon light for emergency alerts, installed in an industrial setting with heavy machinery and rugged terrain, emphasizing durability and safety in challenging environments.
