Weatherproof IP Outdoor Video Intercom JWAT409P
This rugged, wall-mounted SIP 2.0 video intercom features a 2MP HD camera, hands-free full-duplex audio with multiple codecs, and an IP65 weatherproof steel shell. It includes an emergency speed-dial button, stable 4-layer circuitry, and certifications (CE, FCC, RoHS, ISO9001) with in-house spare parts.
This sip video intercom combines reliable hands-free communication with visual verification for industrial and public security. Designed as a rugged outdoor video intercom system, it provides instant emergency assistance and access control for demanding environments.
Rugged & Weatherproof Build
Built with a cold-rolled steel die-casting shell, this outdoor intercom with camera offers high mechanical strength and impact resistance. Rated IP65, it functions as a durable outdoor video intercom, effectively protected against dust and water. It features a wall-mounted design for secure installation at any gate or building entrance.
HD Video & SIP Audio
Operating on standard SIP 2.0 (RFC3261), this outdoor intercom system with camera features a 2-megapixel HD camera for clear, real-time monitoring. The visual intercom system supports full-duplex, hands-free operation and a wide range of audio codecs (G.711, G.722, G.723, G.726, G.729). Internally, a four-layer integrated circuit ensures accurate signal transmission and highly stable, clear conversations.
Emergency Function & Compliance
Operating as a dependable security intercom with camera, the device includes a rugged speed-dial button for fast call answering or triggering an SOS emergency alert. To ensure long-term maintenance, self-made spare parts are readily available. The unit is fully certified to CE, FCC, RoHS, and ISO9001 standards.
Core Specifications of JWAT409P Outdoor Video Intercom
- System: SIP 2.0 with full-duplex, hands-free communication.
- Camera: Built-in 2MP high-definition camera.
- Construction: Wall-mounted, cold-rolled steel shell (IP65 weatherproof).
- Hardware: 4-layer integrated circuit for stable audio transmission.
- Support & Compliance: CE, FCC, RoHS, ISO9001 certified, with in-house spare parts available.
| Power Supply | DC12V or POE |
| Standby Work Current | ≤1mA |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≥85dB(A) |
| Pixel camera | 2M |
| Night vision function | Support, starry night vision effect |
| Protection Class | IP65 |
| Corrosion grade | WF1 |
| Ambient temperature | -30～+60℃ |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | ≤95% |
| SIP protocol | SIP 2.0 (RFC3261) |
| Weight | 6 kg |
| Installation method | Wall-mounted |
The product is securely housed in a custom-molded foam interior within a durable corrugated carton, guaranteeing protection against shocks and vibrations during transit. Each carton is clearly labeled for easy identification and logistics handling.

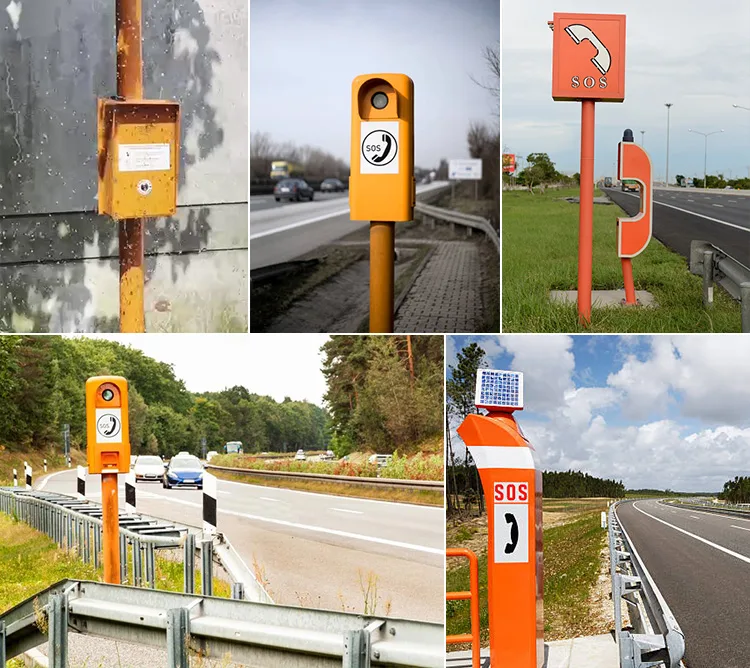

This IP video intercom is highly popular for use in subways, tunnels, mining sites, marine environments, underground areas, metro stations, railway platforms, highways, parking lots, steel plants, chemical plants, power plants, and other heavy-duty industrial applications.
One-Button Call & Hands-Free Communication

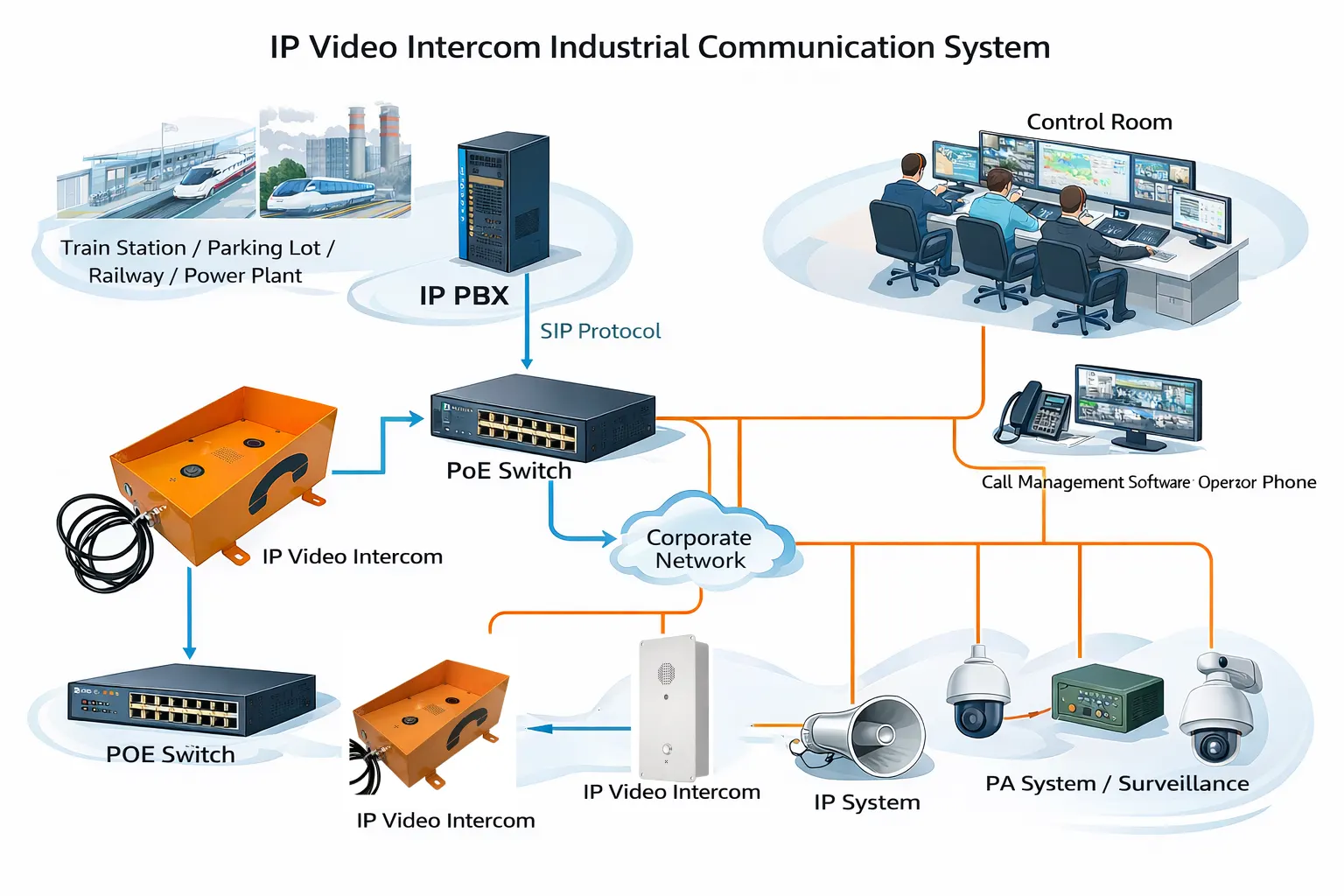

The IP Video Intercom System is a SIP-based visual communication solution designed for public, industrial, and security-critical environments.
It supports one-button calling and hands-free two-way communication, enabling users to instantly connect with a control center for assistance or emergency response.
Built on standard IP networks, the system allows centralized management, real-time video verification, and seamless integration with IP PBX, security, and alarm systems.
Ideal for: emergency help points, campuses, transportation hubs, and public facilities.
