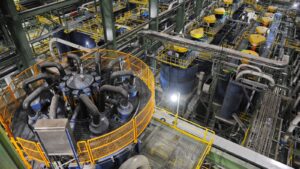

Industrial facilities are unforgiving environments. Standard commercial and industrial communication systems that work perfectly in office buildings will quickly fail when exposed to the harsh realities of a manufacturing plant, underground sections of a mine, or an offshore platform.
To build a highly stable and scalable emergency communication system, engineers and safety managers must address the specific environmental hurdles of their site.
This guide will break down the most common emergency communication challenges and provide targeted industrial solutions and equipment selection advice.
1. High-Noise Environments and Ambient Sounds
In facilities like compressor stations, stamping plants, and the active factory floor, background noise can easily exceed 90 to 100 decibels (dB).
In these high-noise environments, standard telephones and mass notification systems are completely drowned out, making coordination and emergency situations impossible to manage.
- The Solution: Implement alerting solutions designed for high-decibel penetration. The standard rule is that the siren or broadcast audio must be 10 to 15 dB louder than the maximum ambient noise to ensure speech intelligibility.
- Equipment Selection Advice:
- Terminals: Select industrial telephones equipped with noise-canceling microphones.
- Broadcasting: Deploy high-output IP speakers and PA horns rather than standard cone speakers.

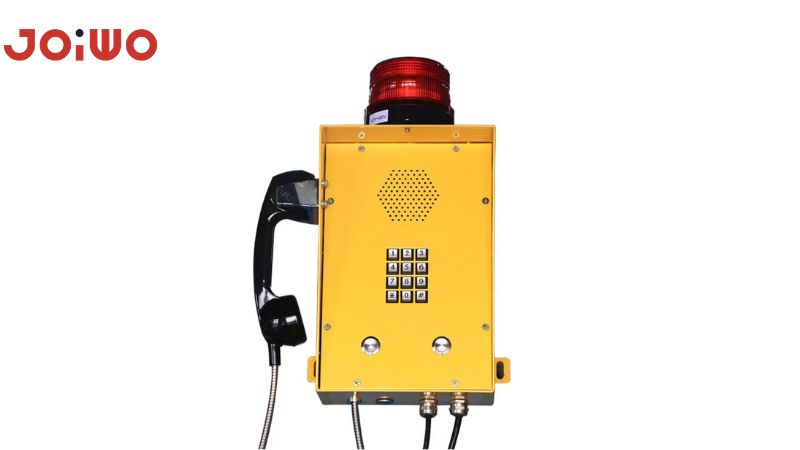

- Audible and Visual Alerts: In areas requiring heavy ear protection, mandate the use of telephones with strobe lights and LED beacons synchronized with the alarm system to provide a clear visual alert.
2. Dust, Particulates, and Moisture
Mines, cement plants, and food processing facilities constantly expose equipment to airborne dust, water sprays, and corrosive salt fog. These elements easily penetrate standard electronics, causing short circuits.
- The Solution: Create a sealed communication network where every endpoint is physically protected from ingress to ensure seamless communication during an industrial emergency.
- Equipment Selection Advice:

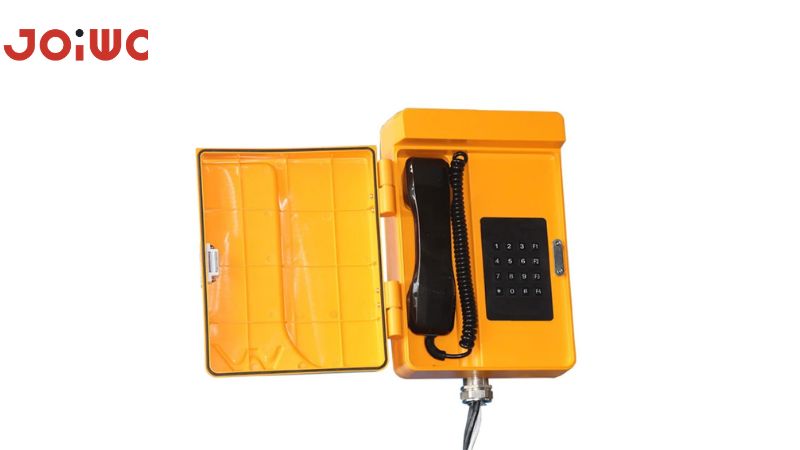

- Select weatherproof telephones rated IP66, IP67, or higher. Its outer shell should be made from corrosion-resistant aluminum alloy, reinforced engineering plastic, or stainless steel.
3. Extreme Temperature Variations
Industrial sites like foundries can experience blistering heat, while outdoor facilities in cold regions face freezing temperatures and severe weather. Extreme cold causes LCD screens to freeze, while high heat leads to complete electronic failure.

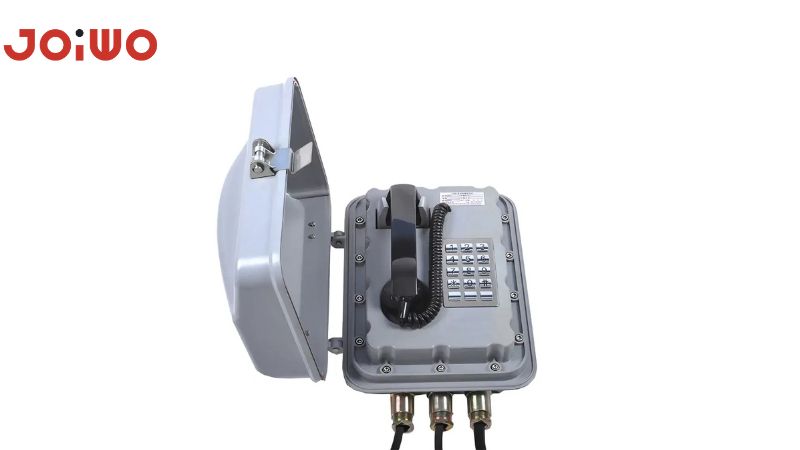

- The Solution: Deploy rugged telephones engineered for wide temperature tolerances (-40°C to +70°C).
- Equipment Selection Advice:
- Avoid consumer-grade plastics. Ensure all connecting cables are rated for extreme temperatures to prevent insulation cracking during an emergency.
4. Large Facilities, Long-Distance Transmission, and Multi-Building Coverage

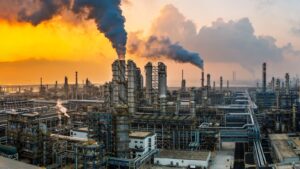

Tunnels, pipelines, and massive refineries often have large footprints spanning several kilometers. Traditional copper-wire analog systems suffer from severe signal degradation over these long distances.
- The Solution: Transition from legacy cabling to modern IP-based systems or fiber-optic networking to achieve multi-building coverage.
- Equipment Selection Advice:

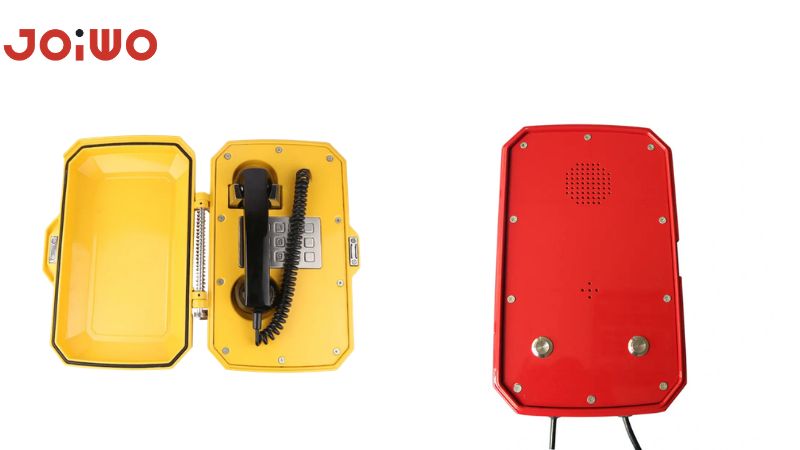

- SIP/VoIP Telephones: Utilize SIP-compatible industrial telephones that run on your existing network. IP phones eliminate distance limitations and allow you to reach everyone as long as network connectivity is maintained.
- Fiber Optic Backbones: For large facilities, use fiber-optic intercom stations. Fiber transmits both voice and data via light over 20 kilometers without signal loss.
5. Electromagnetic Interference (EMI)
Power substations and factories utilizing large motors generate immense electromagnetic fields. This EMI causes static and signal loss in standard communication cables.
- The Solution: Isolate the communication signal to ensure a seamless connection.
- Equipment Selection Advice:
- Use fiber-optic safety systems (immune to EMI) or ensure all analog/Cat6 cables are heavily shielded (STP/FTP) and properly grounded.
6. Hazardous and Explosive Atmospheres
In petrochemical plants, the presence of flammable gases creates a highly explosive atmosphere. A tiny spark can trigger a catastrophic explosion during an evacuation.
- The Solution: Deploy strictly compliant explosion-proof industrial telephones guaranteed not to ignite the surrounding atmosphere.
- Equipment Selection Advice:

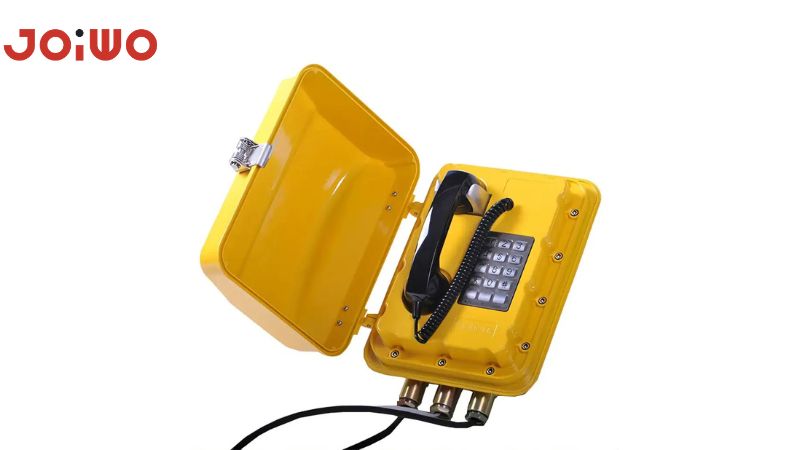

- Certification is Mandatory: Only specify equipment conforming to regional regulations and fire codes, carrying certifications like ATEX, IECEx, or UL/CSA.
- Manufacturers like Joiwo specialize in explosion-proof telephones safe for hazardous areas. Integrating these with site-wide fire detection systems provides a fail-safe emergency response.
7. Integrating Mass Notification with Existing Infrastructure
Beyond rugged hardware, an effective emergency notification system must integrate smoothly with your existing infrastructure and Wi-Fi. When critical events occur, operators in the control room need to quickly notify everyone on-site.

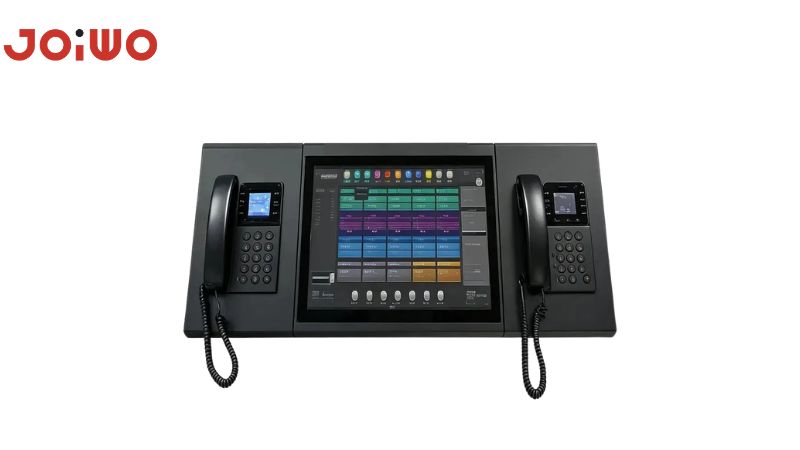

- Comprehensive Alerting: Modern emergency mass notification setups combine two-way intercoms with operator consoles, digital signage, desktop notifications, and SMS to deliver redundant emergency alerts.
- Automate Responses: By connecting sensors (like a fire alarm or gas detector) to the system, facilities can streamline the workflow. This automation helps evacuate workers faster, reducing delays for emergency responders and on-site personnel.
Upgrade Your Industrial Emergency Communication for the Challenges
If your projects ever need noise-canceling intercoms, explosion-proof telephones, or a fully integrated IP mass notification system, you can count on Joiwo, as our product portfolio covers a wide range from individual endpoint devices to industrial-specific system solutions.
At Joiwo, safety and compliance are at the core of everything we build. Our products are rigorously tested and hold a complete suite of international safety certifications, including ATEX, IECEx, CE, FCC, and RoHS.
Contact Joiwo’s expert team today for a customized assessment! We will help you select the right certified solutions to keep your on-site personnel safe, compliant, and connected.
Frequently Asked Questions (FAQs)
Can I integrate a new industrial emergency communication system with our existing infrastructure?
Yes. Modern industrial solutions, such as SIP-compatible telephones and IP speakers, are designed to integrate seamlessly with your existing network and IP-PBX systems. This backward compatibility allows you to upgrade your mass notification capabilities and expand coverage without the need to rip out and replace all of your facility’s existing cabling.
What is the difference between weatherproof and explosion-proof industrial communication equipment?
Weatherproof equipment (typically rated IP66 or IP67) is tightly sealed to protect internal electronics from dust, moisture, and high-pressure water jets, making it ideal for outdoor or washdown areas.
Explosion-proof equipment, on the other hand, is specially cast and certified (such as ATEX or IECEx) to contain any internal electrical spark, ensuring it will not ignite flammable gases or combustible dust in hazardous atmospheres.
How do we ensure emergency alerts are actually noticed in high-noise environments?
In exceptionally loud areas like a factory floor or compressor room, audio alone is often not enough.
First, your siren or PA broadcast must be configured to output at least 10 to 15 decibels louder than the peak ambient noise.
Second, OSHA and NFPA guidelines recommend pairing high-output audio with visual alerts—such as synchronized strobe lights and LED beacons—so that on-site personnel wearing heavy hearing protection are immediately notified of an emergency.
